NXP Semiconductors
AN13134
PN76 family evaluation board quick start guide
2 Hardware
The PN76 PSP builds upon the PNEV7642A board and LPC55S16-EVK board.
For the PN76 family, a couple of different board revisions are available. Listed within this document are only the
active revisions.
Board name Chapter
PNEV7642A Rev.B Section 2.1
Table 4. PN76 family boards
2.1 PNEV7642A Rev-B
The PNEV7642A Revision B is easily identified by its large golden ground plane, added to help heat dissipation.
See Section 2.1.4 "Jumper settings" for more details.
The schematics and layout files of the development board can be found at [9].
The development board assembled of two major components:
• The based board which hosts all the periphery and connectors.
– Schematic: [2]
• The module board which hosts the PN7642 chipset and its minimum required components.
– Schematic: [3]
– The module board can be used for rapid prototyping on a custom PCB. It is the same size and form factor
as the module board of the PN5190.

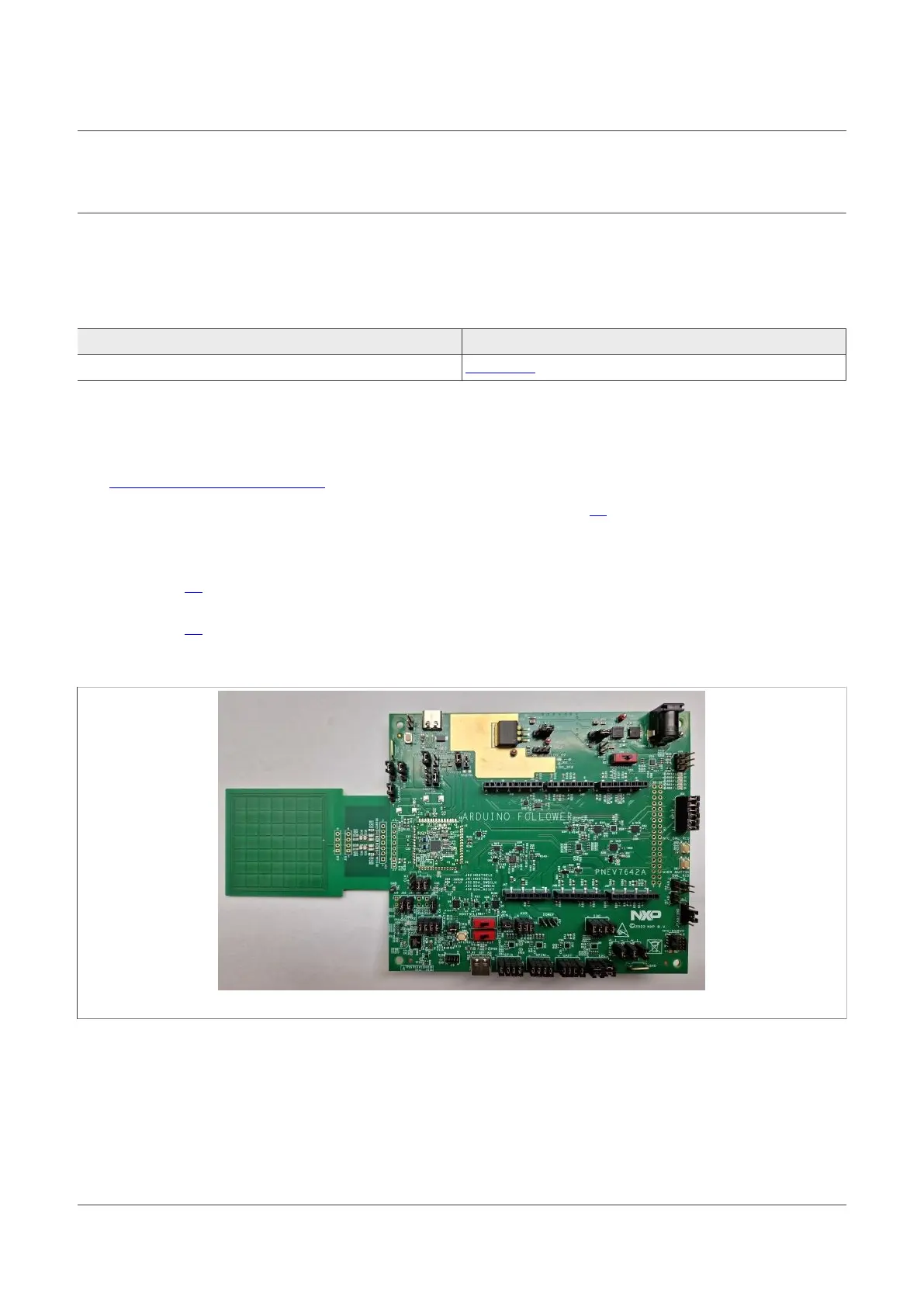

Figure 4. PNEV7642A Rev.B
AN13134 All information provided in this document is subject to legal disclaimers. © 2023 NXP B.V. All rights reserved.
Application note Rev. 2.5 — 2 May 2023
7 / 57
