PN76 family evaluation board quick start guide

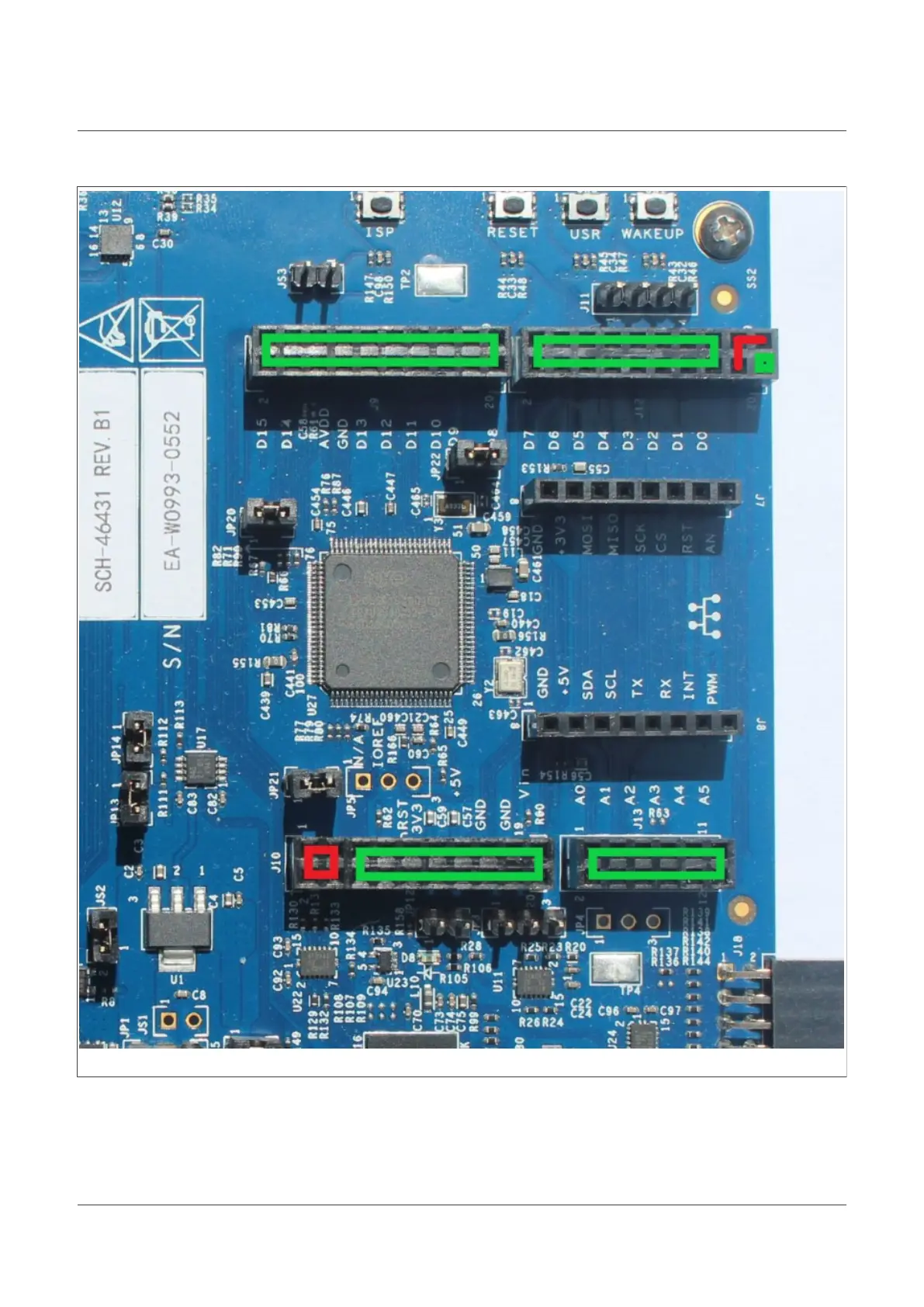

Figure 17. LPC55 arduino alignment
Following pictures shall help to understand how to align the PNEV76FAMA board on top of the LPC55S16-EVK.
