9 Device De
s
cription
Instruction Manual
Corvis® ST (G/72100
/XXXX/EN 1019 Rev01)
13 / 80
9
Device De
s
cription
9.1
Overview of Device Component
s

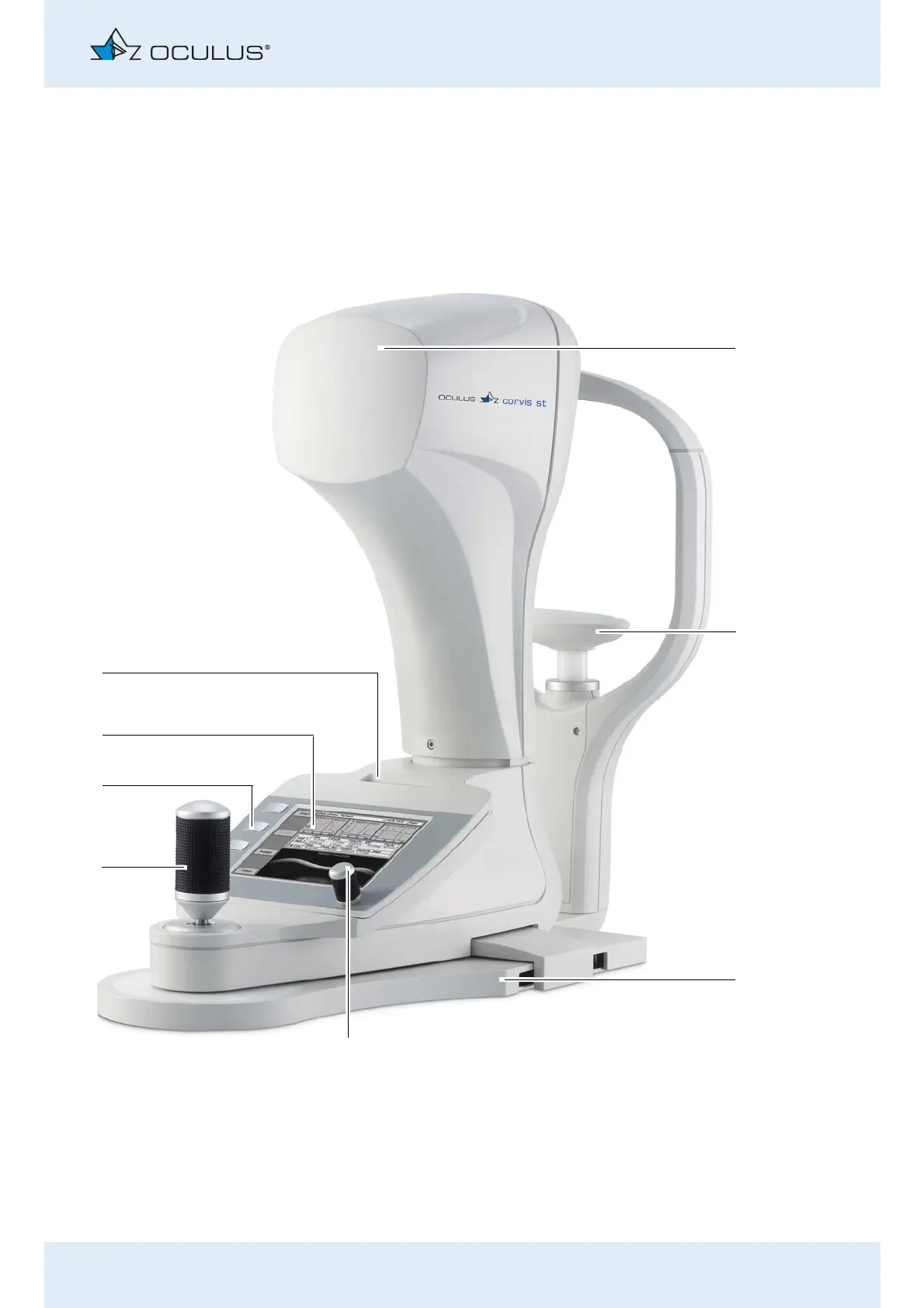

Side - view
1
measure head
5
Joystick
2
Chi
n rest
6
Fun
ction key
s
3
XY-base
7
Display
4
Control knob
8
Printout slot
Abb.
9-1:
Corvis® ST: Side view
1
2
5
3
4
6
7
8
18
20
Table of Contents
Table of Contents
3
Scope of Delivery
7
Symbols
8
Structure of the Documentation
9
Safety Instructions
10
About this Manual
10
Graphic Symbols Used
10
Safety Instructions for Use
11
Indications for Use
17
Contraindications
17
Warnings
17
Transport to Installation Location
18
Device Description
19
Overview of Device Components
19
Mode of Operation of the Corvis® ST
21
Start-Up
23
Initial Start-Up
23
Set-Up Jobs for Initial Start-Up
23
Adjustments after an In-House Transport
24
Device Set-Up
24
Unlock Transport Safety Device
24
Electrical Connection
25
Daily Operation
27
Switching on the Corvis® ST
27
Setting the Safety Stop
27
Adjust the Break
27
Switching off the Corvis® ST
28
Preparing a Measurement
29
Using the Control Unit
29
Display with Touch Screen
31
Start Patient Data Management
32
Importing Patient Data
33
Enter a New Patient
34
Select an Existing Patient
35
Perform a Measurement
37
Start the Corvis® ST Program at the Computer
37
Adjusting the Corvis® ST
38
Rough Adjustment
38
Fine Adjustment
41
Triggering the Measurement
43
Perform a Second Measurement
43
Saving Data
44
Complete Measurement
45
Using Patient Data Management
46
Rename Patient Data
46
Exporting Patient Data
46
Data Backup
47
Backup Data
48
Reconstruct Data
48
Automatic Backup
49
Working with the Corvis® ST Program
50
View Patient and Examination Data (1)
51
Working with the Menu Bar (7)
51
Menu Item "Patient
51
Menu Item "Examination
51
Menu Item "Display
52
Menu Item "Export
52
Menu Item "Settings
52
Use Video Function (4)
52
View Specific Images of the Cornea (4)
53
Perform a Measurement with the Corvis® ST Unit
54
Change Settings
54
Entering Patient Data
55
Entering New Patient
56
Select an Existing Patient
57
Perform a Measurement
58
Selecting a Measurement Mode
58
Complete Measurement
58
Re-Use Examination Data
59
Delete a Patient or an Examination
59
Re-Using Data with the USB Flash Drive (Optional)
59
Cleaning, Disinfection and Maintenance
61
Cleaning
61
Clean the Front Panel
62
Disinfection
64
Maintenance
65
Attach Paper to the Chin Rest
65
Insert New Printing Paper Roll
66
Dismantling, Transport and Storage
68
Removal
68
Transport and Storage
69
Information on Transport and Storage
69
Disposal of Used Devices
70
Troubleshooting
71
Terms of Warranty and Servicing
72
Liability for Proper Function or Damages
72
Technical Data
73
Appendix
75
Correction Calculation of the Tonometrically Calculated IOP
75
Electromagnetic Compatibility
75
Guidance and Manufacturer's Declaration - Electromagnetic Emmisssions and Immunity for the Corvis® ST
77
Description of the Connection
81
Data Sheet Power Supply Adapter (05150285)
82
