 Press "Feed Back" to reverse, or roll back the printer paper.
 Remove the feed roller (1) from the holder (4).
 Pullthe metal pin (3) out.
 Push the metal pin into a new printer roller and insert the printer
roller into the holder (4).
 Slide the white paper through the white slot from below.
 Make sure the paper (1) is correctly aligned.
 Press the button "Printer Feed" so that the printer paper is pulled
through the opening.
 Close the cover with the display, see fig. 15-4, page 60.
1 Printer roller 3 Metal pin
2 White slot 4 Holder

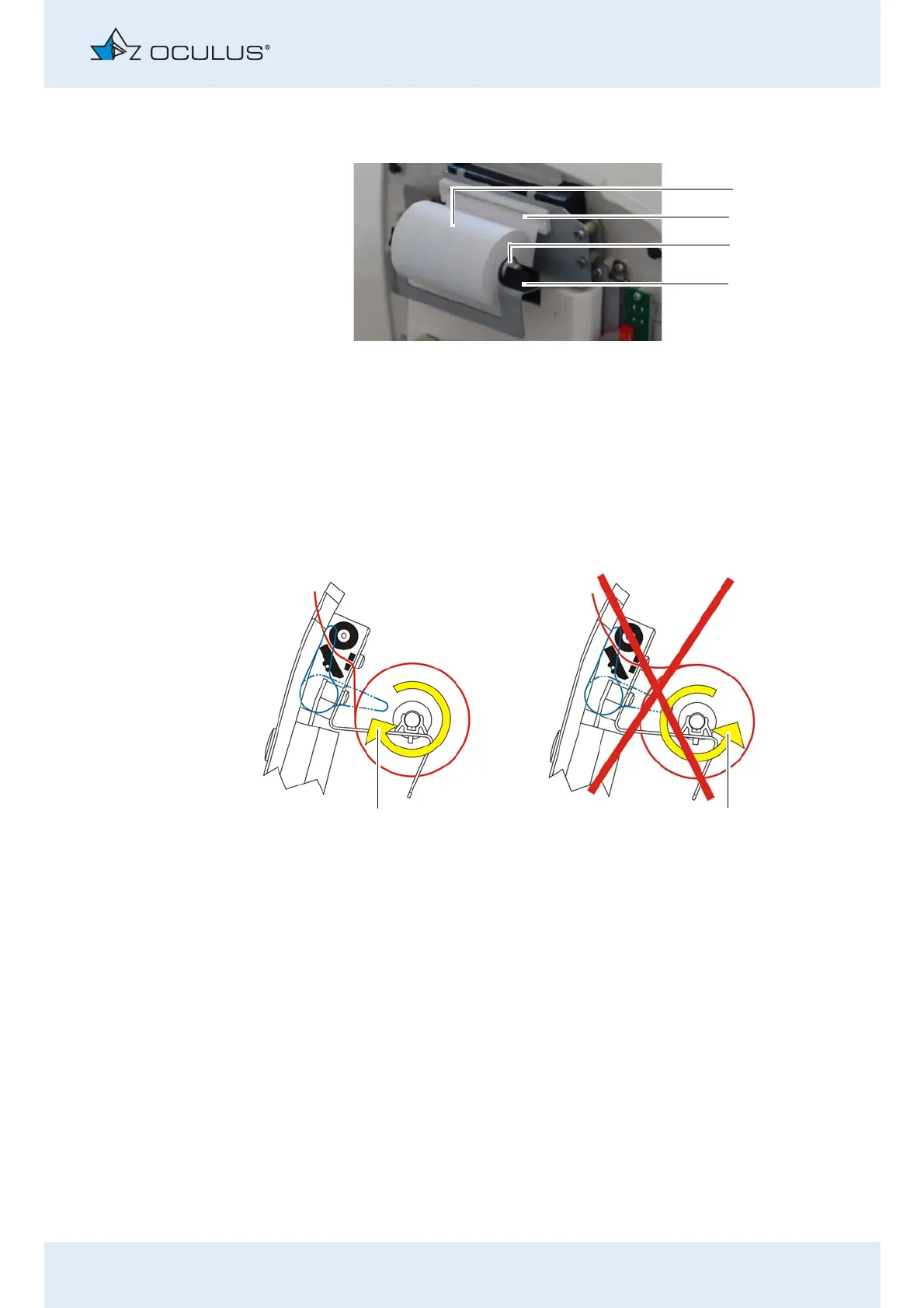

Abb. 15-6: Remove and insert printer roller
1
4
3
2
1 Proper paper guide 2 Wrong paper guide
Abb. 15-7: Insert the paper
1
2
