9.7.4.1 Calibrate TLD (Target Laser Diode)

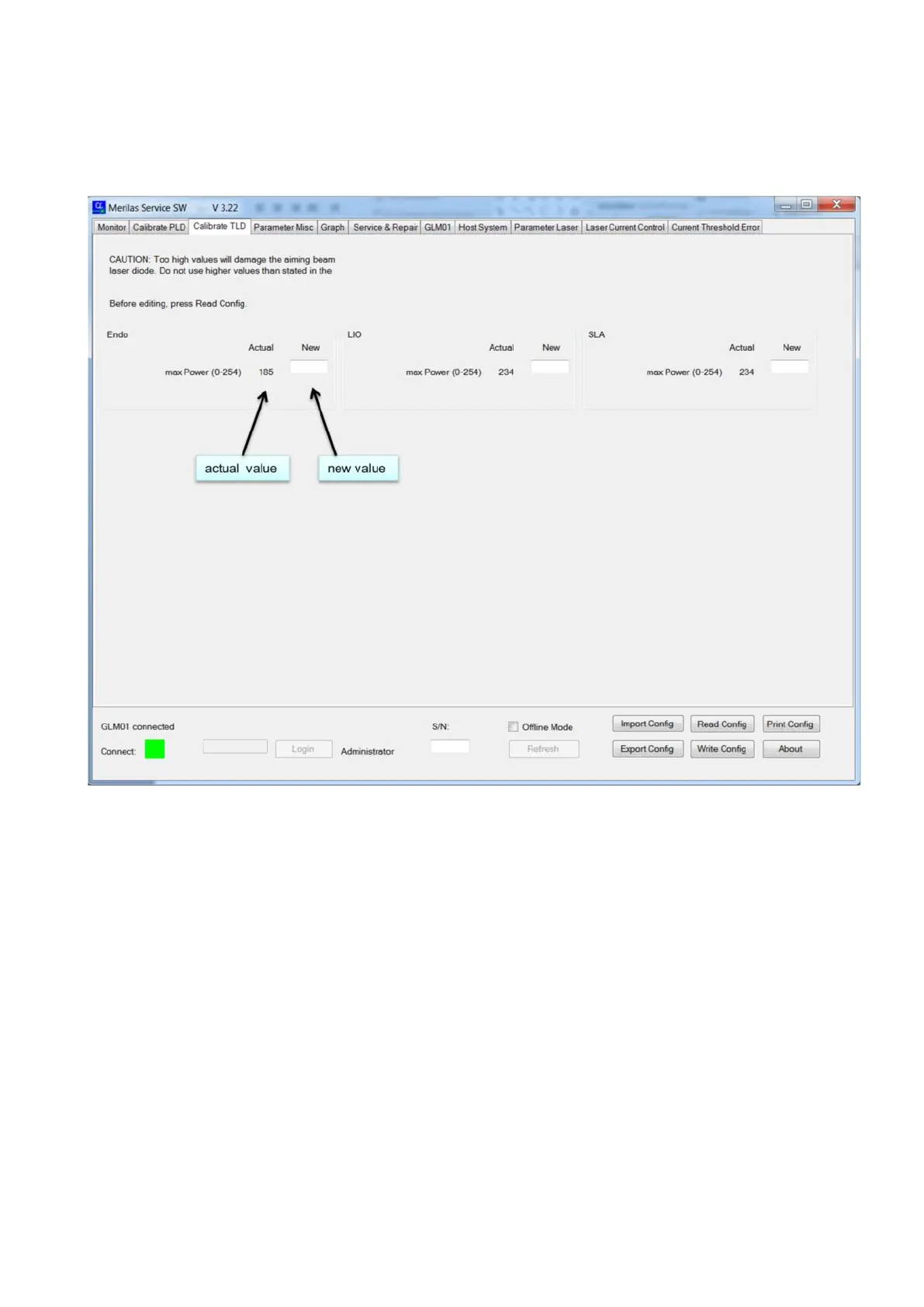

Calibration of the TLD is performed on this page. The current power value is shown and the new one is entered here.
NOTE: The entered power value must be 40 or higher in order to achieve that the value of the aiming beam reaches the
specified value and tolerance range.
For GLM01, adapter <Endo> is used. Make sure the correct adapter is selected during calibration.
<Read Config> reads the values from the module and displays them.
After calibration, the configuration must be written on the module by <Write Config>.
The configuration can be saved into a file by <Export Config> and restored by <Import Config>.
