Connections & Controls
2.2
Rear panel

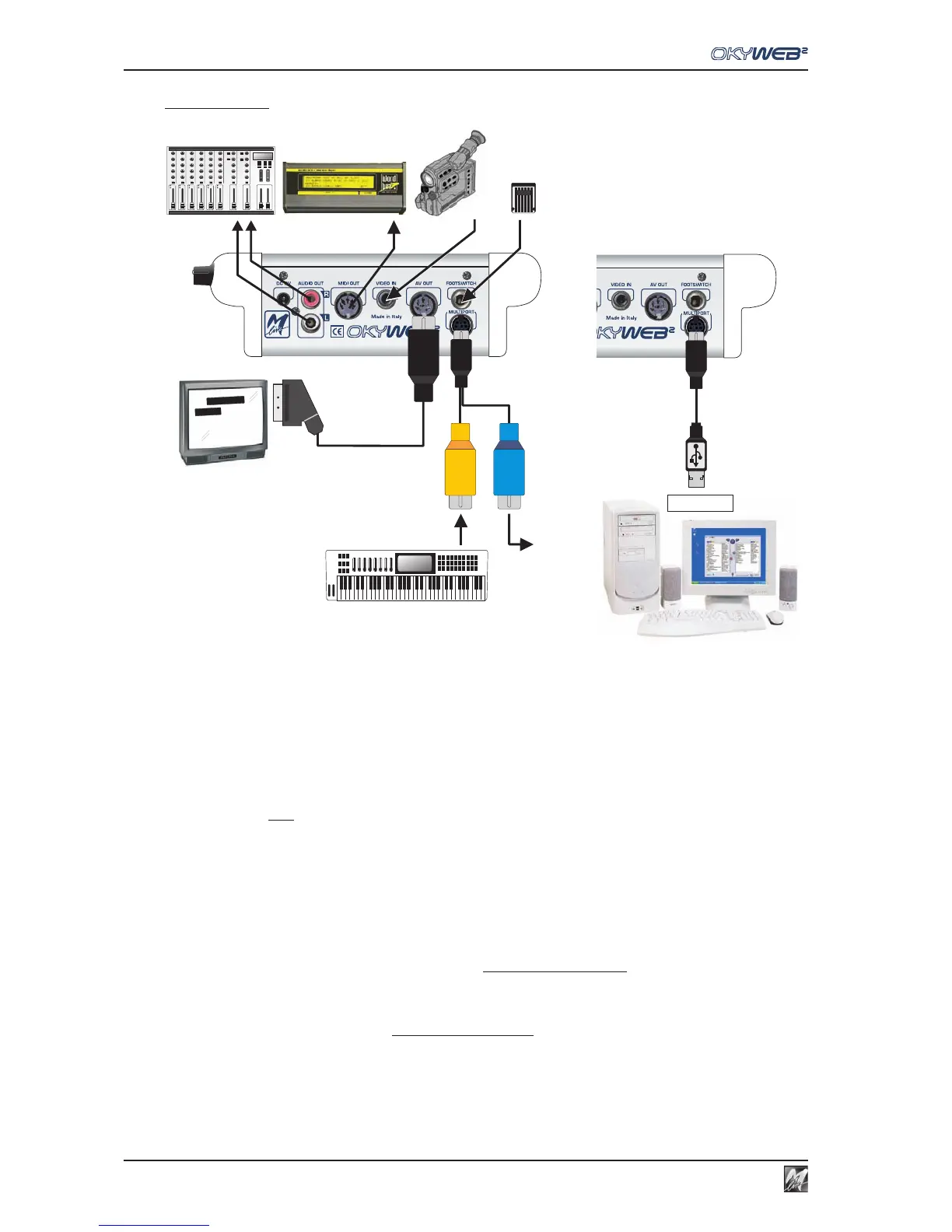

AUDIO OUT Stereo line output (0dB). To obtain the best reproduction of MIDI backing tracks, connect the
OkyWeb2 audio output to an amplification system, using the appropriate inputs and (if necessary)
adjusting their input sensitivity.
MIDI OUT Using the MIDI OUT output, the MIDI files can be played through an external expander.
Also, the MIDI output can be connected to a M-Live WORD BOX, allowing you to display the
MIDI file lyrics even without a television monitor.
VIDEO IN VIDEO input. Allows to connect a video camera, video recorder or any other video source and
use its images as a background on the OkyWeb2 screen.
N.B.: Using this mode, the function of syllable highlighting of the lyrics is disabled.
AV OUT Audio / Video output. Allows to connect OkyWeb2 to a television with the AV/SCART cable
supplied.
FOOTSWITCH Footswitch socket. Control can be programmed (Play/Pause, Efx On/Off, Mic On/Off,
Next Song, etc.) and allows you to enable the required functions even if your hands are full.
MULTIPORT Multifunction port. Thanks to the custom cables supplied, can be used
as a “MIDI IN + MIDI THRU port” or a “USB port”.
- MIDI IN + MIDI THRU port: using the
MULTIPORT/MIDI cable, the Multiport allows OkyWeb2
to also be used as an expander. In fact, connecting a keyboard or external sequencer, it’s
possible to play OkyWeb2’s onboard instruments.
A useful option also allows to send the MIDI events to Ch 1÷16 or Ch 17÷32.
- USB Port: using the MULTIPORT/USB cable, the Multiport allows to connect OkyWeb2 to a
PC via USB. Exploiting the advantages of this fast communications line, it’s possible to transfer
music files from your PC (Internet or Hard Disk) to the OkyWeb2 Compact Flash card or vice
versa, update the OkyWeb2 operating system, play the backing tracks stored on your PC,
using OkyWeb2 directly as a player (rather than the player and the PC’s audio card), etc.
PARALLEL PORT The parallel port on the left-hand side allows to connect OkyWeb2 to SongService
®
systems.
AV / SCART
CABLE
AUDIO MIXER
WORD BOX
MULTIPORT / MIDI
CABLE
AV
YESTERDAY
ALL MY TROUBLES
SEEM SO FAR AWAY
VIDEO
CAMERA
MIDI OUT
MIDI
IN
MIDI
THRU
FOOT
SWITCH
MULTIPORT / USB
CABLE
USB port
To Next Page
