10-17

Troubleshooting > Regular Maintenance

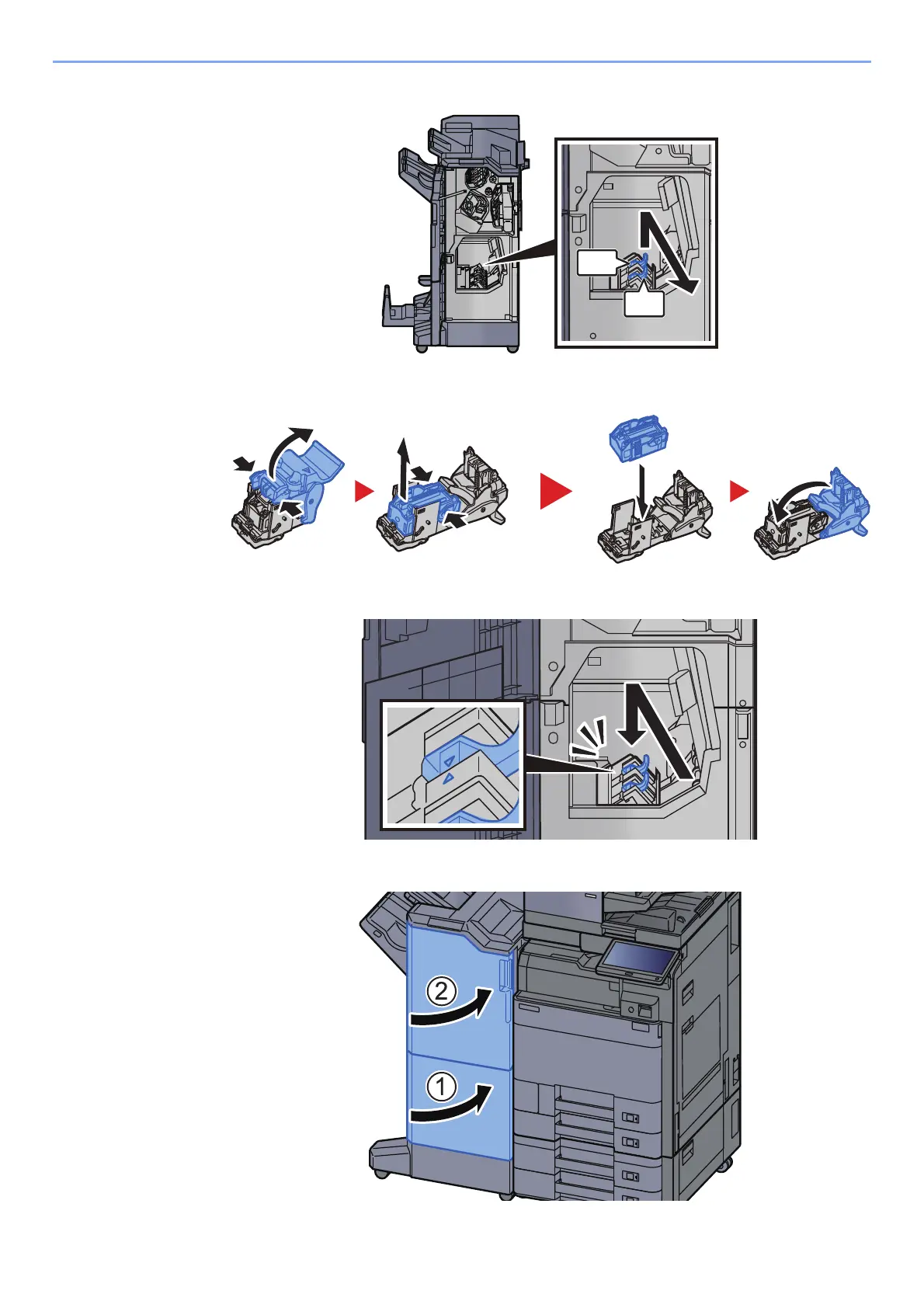

Remove the Staple Cartridge Holder (B) or (C).

Replace the staples.

Install the Staple Cartridge Holder (B) or (C).

Close the covers.
