10-129

Troubleshooting > Clearing a Staple Jam

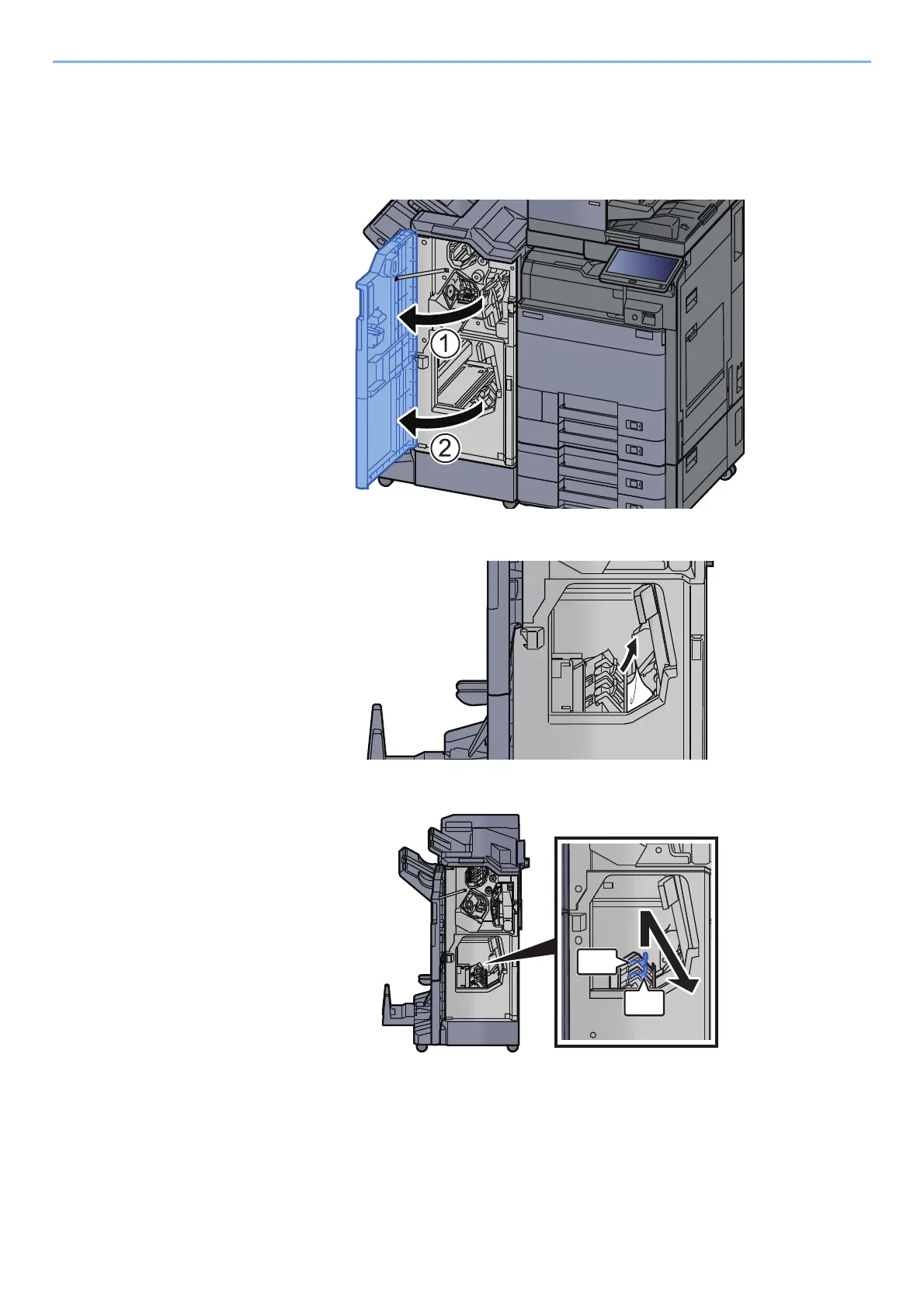

Clearing a Staple Jam of the Folding Unit (4,000-sheet

Finisher)

Open the finisher front cover 1 and 2.

Remove paper from inside the finisher.

Remove the Staple Cartridge Holder (B) or (C).
