EnForcer™ SCR Service Manual I.B. 1561
32
WIRE CONNECTION CHARTS (3 PHASE SCR CHARGERS con’t)
MODEL D
220 VOLT INPUT 380 VOLT INPUT 440 VOLT INPUT
WIRE MARKER CONNECTION CONNECTION CONNECTION
D2 F1 TO A1 F1 TO A1 F1 TO A1
D7 F1 TO C6 F1 TO C5 F1 TO C6
D3 F2 TO A6 F2 TO A5 F2 TO A6
D3 F2 TO B1 F2 TO B1 F2 TO B1
D4 F3 TO B6 F3 TO B5 F3 TO B6
D4 F3 TO C1 F3 TO C1 F3 TO C1
A2 A1 TO A4 A2 TO A4 A3 TO A4
A2 A3 TO A6 B2 TO B4 B3 TO B4
A2 B1 TO B4 C2 TO C4 C3 TO C4
A2 B3 TO B6 A2 TO A4 A3 TO A4
A2 C1 TO C4 B2 TO B4 B3 TO B4
A2 C3 TO C6 C2 TO C4 C3 TO C4
MODEL E
400 VOLT INPUT
WIRE MARKER CONNECTION
D2 F1 TO A1
D7 F1 TO C6
D3 F2 TO A6
D3 F2 TO B1
D4 F3 TO B6
D4 F3 TO C1
AC INPUT CHANGE WITH QUICK TAP™
CAUTION: CONNECTOR IS KEYED AND PINS ARE FRAGILE.
1) Change AC fuses to the value of the desired line voltage available for this charger. AC fuse values can be
found on the decal inside the charger, or in the charts contained in this manual.
2) Change Quick Tap™ plug to the desired line voltage as marked under the sockets.
3) Indicate the line voltage change on the decal inside the charger.

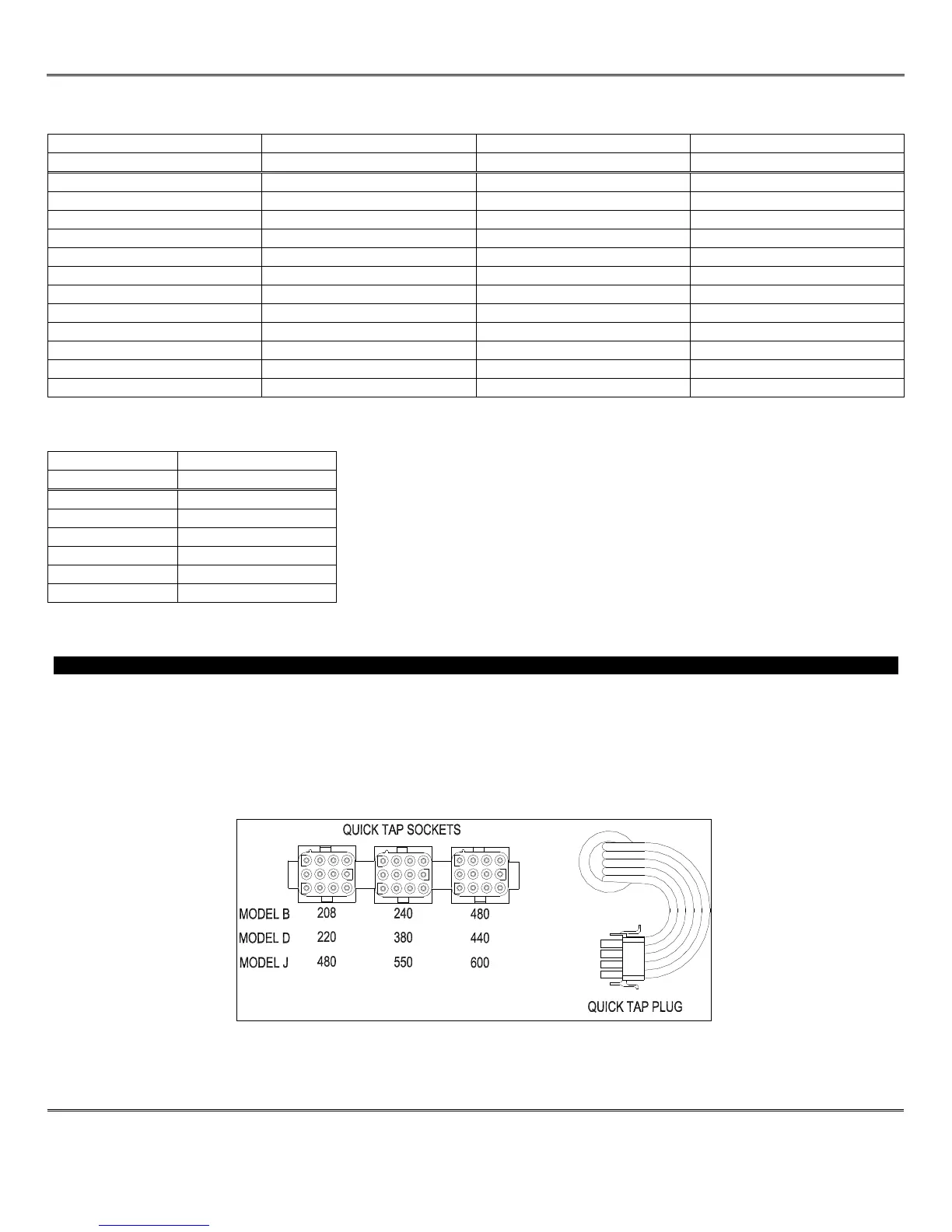

WIRING CONNECTION ILLUSTRATION
