1.67 (d29)
2.20 (d1/4)
0.38 (d1/4)
0.70 (d1/4)
0.1 (d1/4)
0.20 (d1/2)
0.25 (d1/2)
0.42 (d3/4)
0.52 (d3/8)
0.30 (d1/2)
0.05 (d1/4)
0.13 (d1/4)
0.30 (d1/2)
0.13 (d1/4)
0.07 (d1/2)
0.44 (d1/2)
0.48 (d1/2)
0.13 (d1/4)
0.13 (d1/4)
2 WIRES TO MAIN DC CONNECTOR : 71-RD / WH ; 72-WH / RD
1 WIRE TO BATTERY - BiCAT DATA UNIT : 17-OR
4 WIRES TO DMC DISPLAY : 19-GN ; 20-BU ; 21-PU ; 22-WH
11 WIRES TO SMAL DASHBOARD : 7-BK ; 8-BR ; 9-GY ; 10-PK
11-BU / WH ; 12-YL / BK ; 13-RD / BU ; 14-GN ; 15-YL ; 16-RD ; 17-OR
18 WIRES TO LARGE DASHBOARD : 23-BK ; 24-GN / BK ; 25-GN / WH
26-WH / BU ; 27-YL / BU ; 28-BU / WH ; 29-BU ; 30-YL / RD ; 31-YL / BK; 32-GN / RD
34-OR ; 35-PU ; 36-PU / WH ; 37-BR / WH ; 38-BR ; 39-GY ; 40-BK / WH ; 42-PK
3 WIRES TO KEYSWITCH : 1-RD / WH ; 2-RD ; 3-WH / BK
3 WIRES TO DIRECTION SWITCH : 4-BK ; 5-WH ; 6-YL
15 WIRES TO LARGE PLUG UNDER CHAIR : 49-BK ; 50-GY
54-BK ; 55-BR / WH ; 56-RD / YL ; 57-PK1 ; 57-PK2 ; 58-YL / BK
59-YL / BK ; 60-BU / WH ; 62-OR / BK ; 63-GN ; 64-YL ; 65-BK / WH ; 66-BK
3 WIRES TO PARKBRAKE(3-pole connector) : 49-BK ; 51-PU ; 52-PK
4 WIRES TO COMSYS (5-pole connector): 45-RD ; 46-GN ; 47-BK ; 48-BU
3 WIRES TO FOOTBRAKE(3-pole connector) : 49-BK ; 52-PK ; 53-YL / RD
exposed
wire - 30cm
Notes: 1. Circuit 17-OR is NOT part of the original bundle.
2. The following circuits will be branched in the 30cm
region of exposed wire : 49-BK; 52-PK; 57-PK

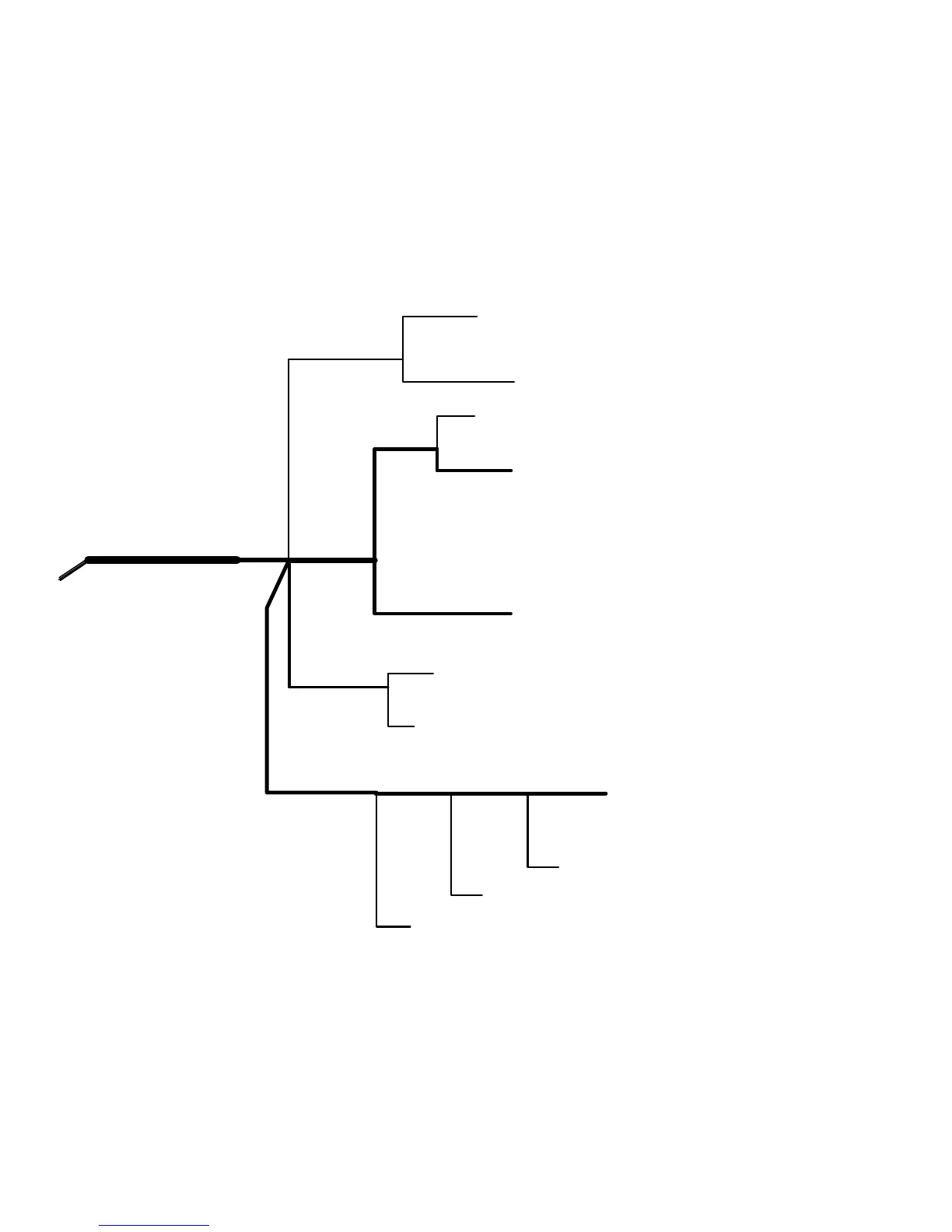

MAIN HARNESS
3. Conduit dimensions are in meters (diameter indication in brackets)
45º connector
(refer to E-Stop connections diagram)
(refer to Small dashboard diagram)
To Next Page
