DP2-SAL
63

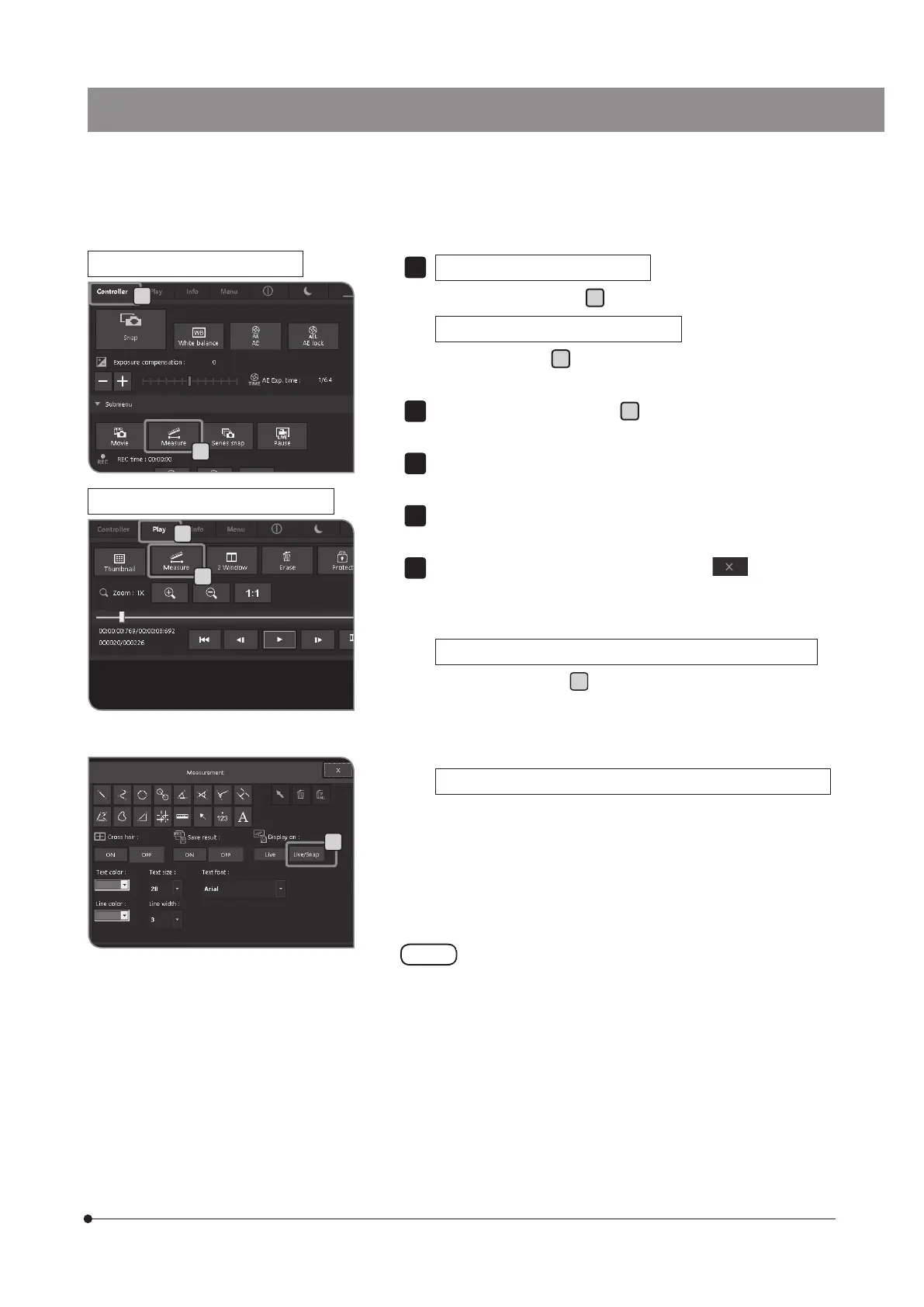

When measuring on the live image
When measuring on the acquired image
When measuring on the live image
Select the [Controller] tab
a
.
When measuring on the acquired image
Select the [Play] tab
a
. The thumbnail is displayed. Select the image
you want to measure.
Press the [Measure] button
b
. The window changes to the
[Measurement] window.
Select the arbitrary measurement method in the [Measurement]
window.
To finish the measurement, right-click the mouse on the window to
return to the
[Measurement] window.
To return to the Control window, select the
button in the
[Measurement] window.
Imprinting measurement results on the image during acquisition.
While the [Live/Snap]
c
button is selected, measure on the live
image and then, press the [Snap] button to acquire the image. The
measurement results are imprinted on the image.
Imprinting measurement results on the acquired image (played image).
After performing the measurement on the acquired image, if you
change to the live image (change from the [Play] tab to the [Controller]
tab), the message indicating "The measurement is not imprints. Do you
want to imprint the measurement in the image?" appears. If the [Yes]
button is pressed, measurement results are imprinted on the image.
· The measurement results cannot be imprinted to the
protected image. Cancel the protection in advance.
· When measurement results are imprinted on the image,
the image data is overwritten and saved. Be careful, once
the measurement data is imprinted on the image, they
won't be restored.
1
3
4
a
b
a
b
c
