[Measurement] window

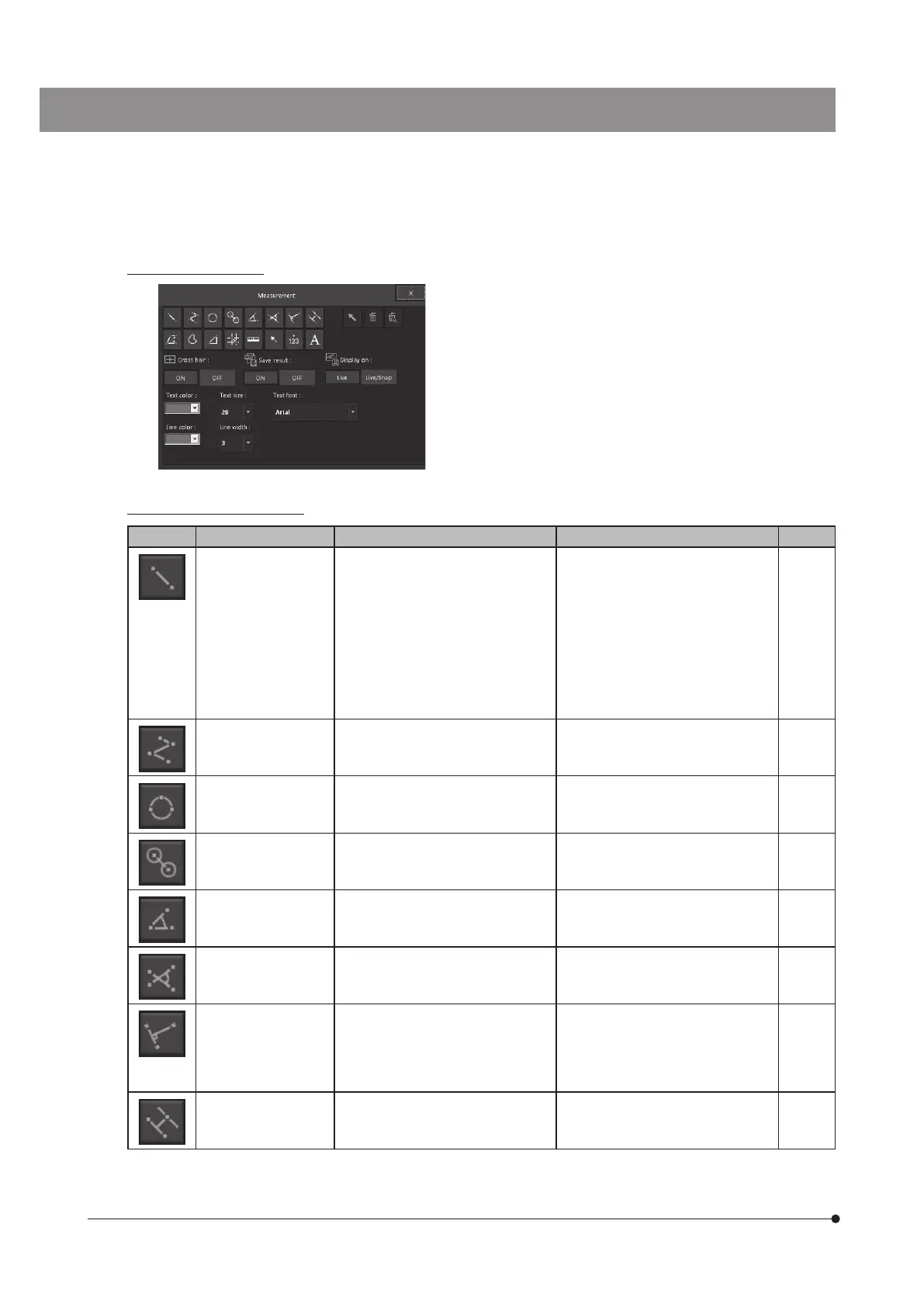

List of measurement functions
Button Function Outline of functions Notes (Restrictions) Page
Distance between 2
points
The distance between specified 2
points are measured.
Up to 20 measurement functions in
total excluding Free line and Count
can be performed. (Text and Arrow
are included.)
Up to 50 Free lines and Counts can
be drawn respectively.
The number of characters
describable as tests is up to 100
one-byte characters or 50 two-byte
characters.
P.66
Polyline By specifying multiple points, the
sum of the distance between points
are measured.
Up to 100 points can be specified
per measurement.
P.66
3 points circle By creating the circle (by inputting
3 points), the diameter and the area
are measured.
P.67
Distance between 2
centers
By creating 2 circles, the distance
between 2 centers are measured.
P.67
3 points angle By specifying 3 points, the angle is
measured.
P.68
4 points angle By specifying 4 points, 2 lines were
created and the angle between 2
lines are measured.
P.68
Perpendicular By creating the line and then
specifying one point, the
perpendicular line is drawn from the
specified point to the created line
and its distance is measured.
Up to 10 perpendicular lines can be
drawn for the reference line.
P.69
Parallel line distance By creating the parallel line, its
distance is measured.
Up to 10 parallel lines can be drawn
for the reference line.
P.69
