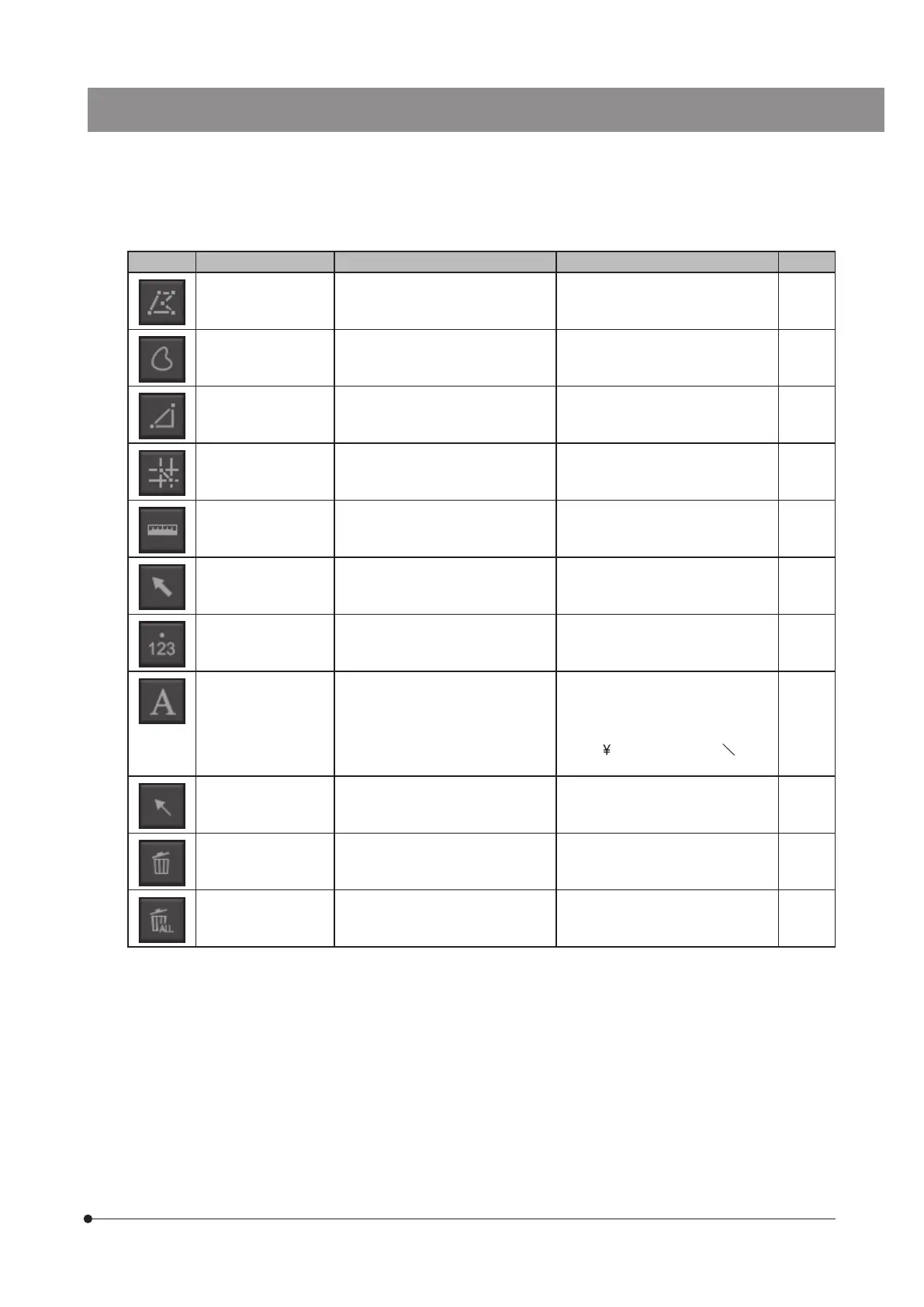

Button Function Outline of functions Notes (Restrictions) Page
Polygon area By creating the polygon, its area
and circumference length are
measured.
Up to 100 angles can be specified
per polygon.
P. 70
Free line The free lines can be drawn. Up to 50 free lines can be drawn. P. 70
XY distance The XY distance between specified
2 points and the R distance are
measured.
P. 71
Distance between 2
cross lines
The distance between the specified
position and the center of the image
(origin) is measured.
P. 71
Ruler A ruler can be inserted. P. 72
Arrow An arrow can be inserted. P. 72
Count By drawing the marks at multiple
locations on the image, the number
of mark locations can be counted.
Up to 50 marks can be counted. P. 73
Text A text can be inserted. Up to 100 one-byte characters or 50
two-byte characters can be inputted.
The keyboard must be connected to
use this function.
When " " mark is inputted, " " is
shown.
P. 73
Select The measurement results on the
window are selected.
–
Delete The selected measurement results
are deleted.
P. 74
Delete all All measurement results on the
window are deleted.
P. 74
