DMTA-20015-01EN [U8778402], Rev. M, February 2017
Appendix M
180

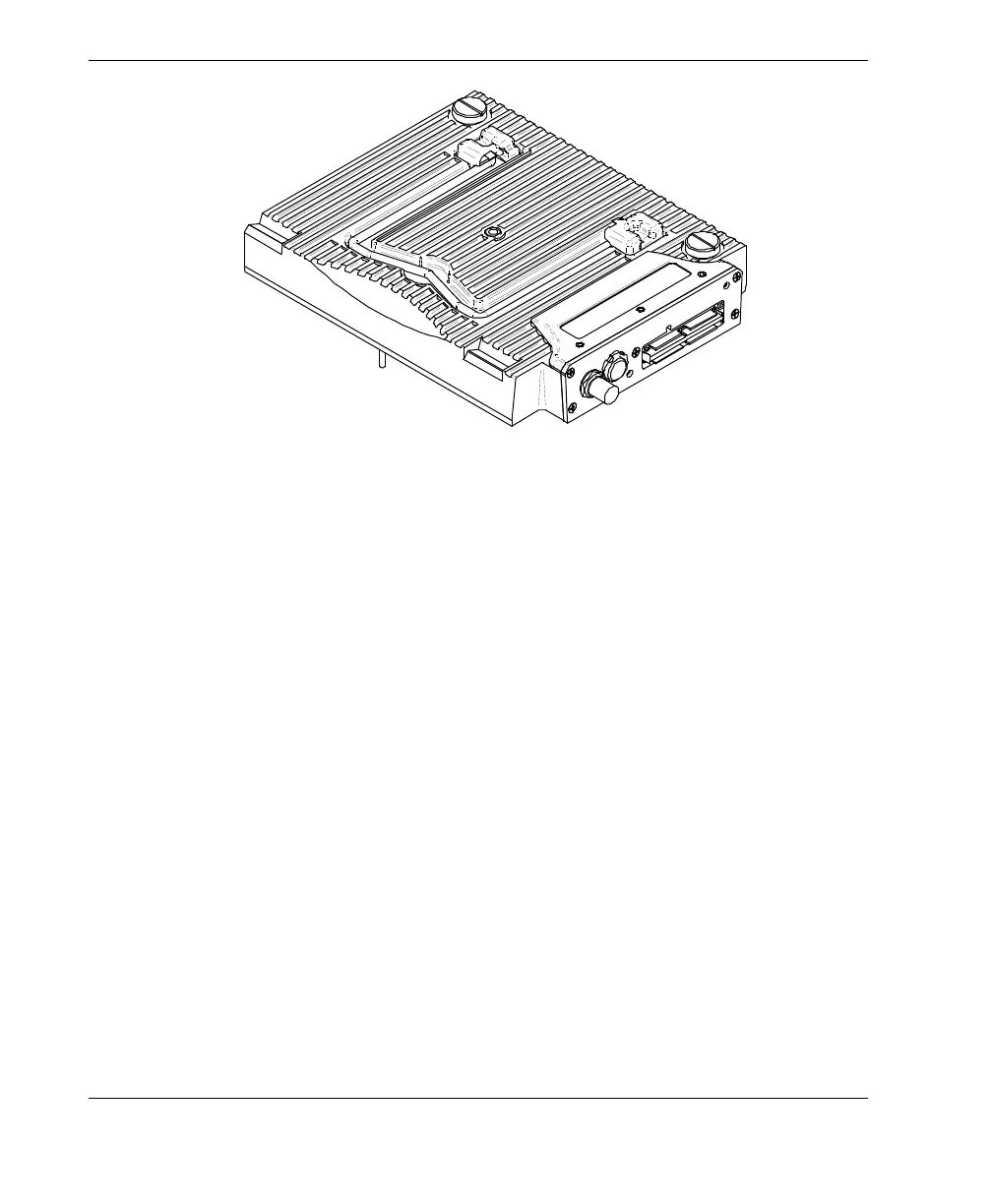

Figure M-1 The OMNI-M-ECA4-32 acquisition module
M.2 ECA Acquisition Module Receptacles
The ECA acquisition module is equipped with three receptacles on the left side:
1CH
BNC receptacle for one single-coil eddy current probe using conventional eddy
current technique.
4CH
A 19-pin receptacle used for eddy current probes with up to four single coils.
EC ARRAY
Olympus receptacle used for the eddy current array inspection technique.
