DMTA-20015-01EN [U8778402], Rev. M, February 2017
Chapter 6
66
6.1 Serial Connector
Description
Mini-DIN, female connector
Manufacturer, number
Kycon, KMDG-8S-BS
Suggested cable connector
Kycon, KMDLA-8P

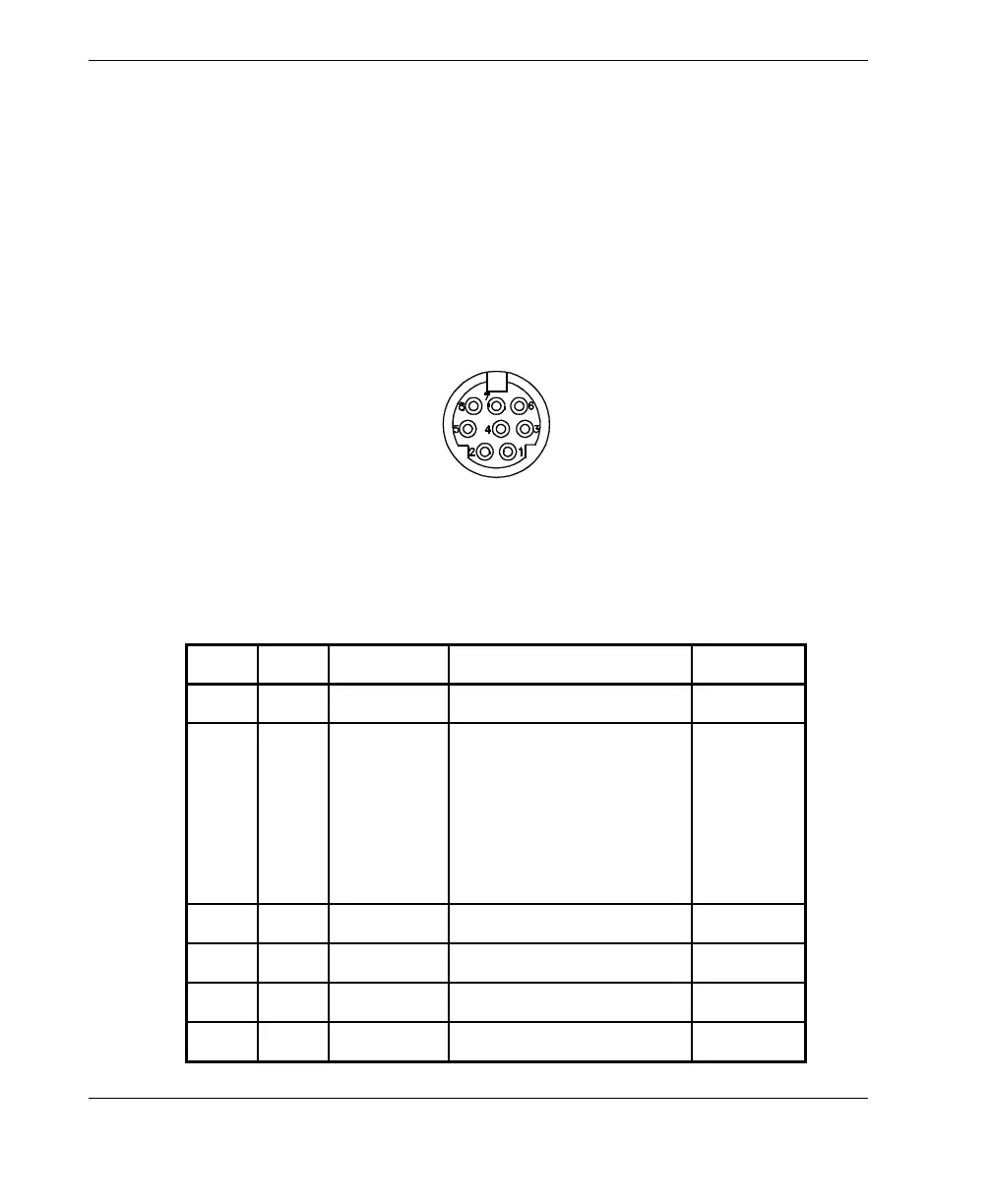

Figure 6-1 The serial connector
Table 12 Pinout for the serial connector
Pin I/O Signal Description Level
1 In Video in Video input 1 Vp-p
2 – +5 V 500 mA max.
Note: This power is
shared with pin 2 of the
scanner interface
connector (see “Scanner
Interface Connector” on
page 67).
N/A
3 – SOUT2 Serial out RS-232
4– GNDGround N/A
5– SIN2Serial in RS-232
6 – NC No connection N/A
