Olympus OmniScan MX - Alarm and I;O Connector; Figure 6-3 the Alarm and I;O Connector

DMTA-20015-01EN [U8778402], Rev. M, February 2017
Chapter 6 70
6.3 Alarm and I/O Connector
Description
DE-9, female connector
Manufacturer, number
Amphenol, 788797-1
Suggested cable connector
ITT Cannon, DE-9P

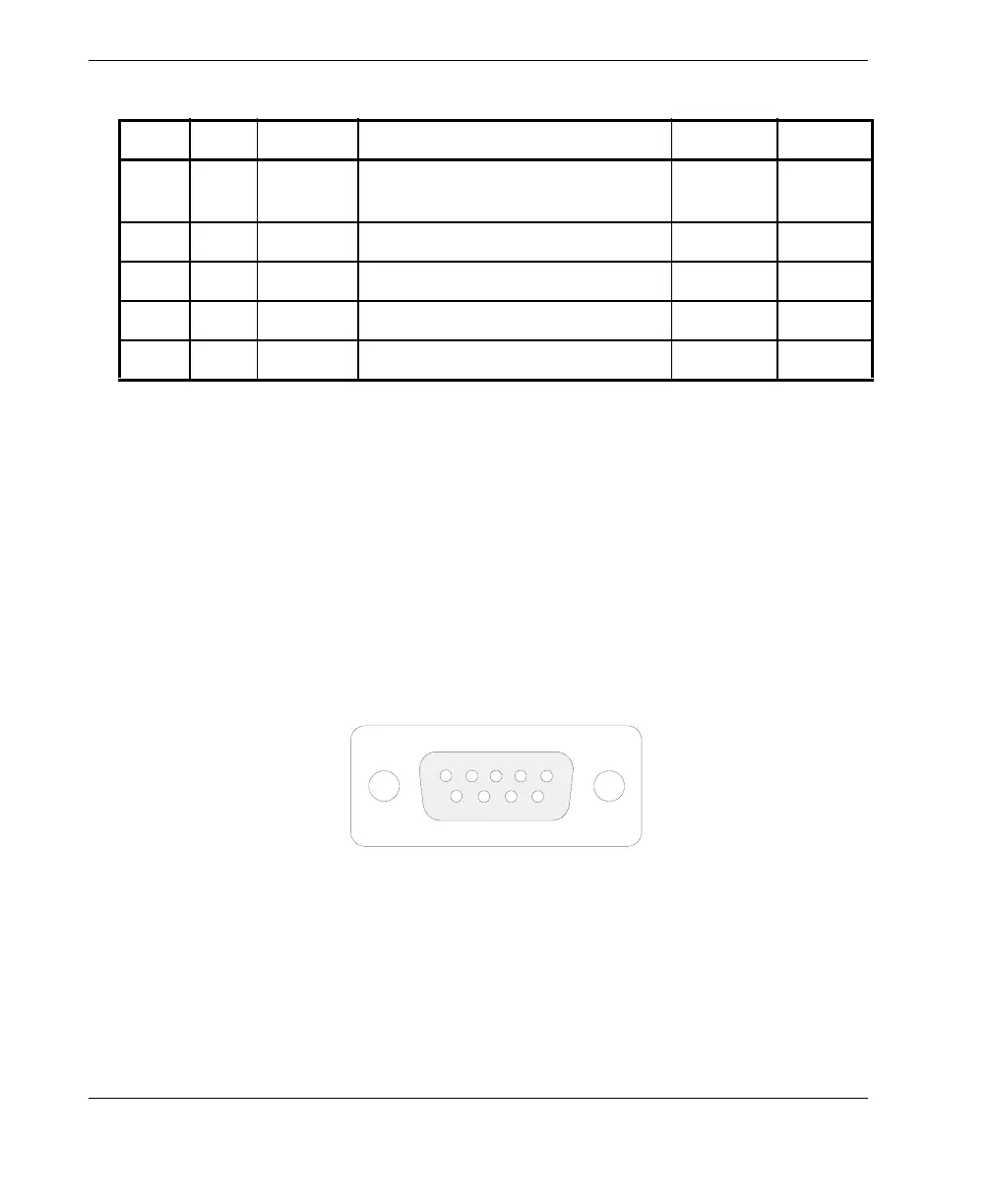

Figure 6-3 The alarm and I/O connector
12 In PhA
axis 2
Encoder 2: phase A/clock/up/
down
N/A TTL
13 Out DOUT3 Digital output 3 ±25 mA TTL
14 In RRX RX N/A RS-232
15 Out RTX TX N/A RS-232
16 – GND Ground N/A
a. N.U. = Not used
Table 13 Pinout for the scanner interface LEMO connector (continued)
Pin I/O Signal Description Current Level
5
43
21
9876
