CPC 100 V 3.20

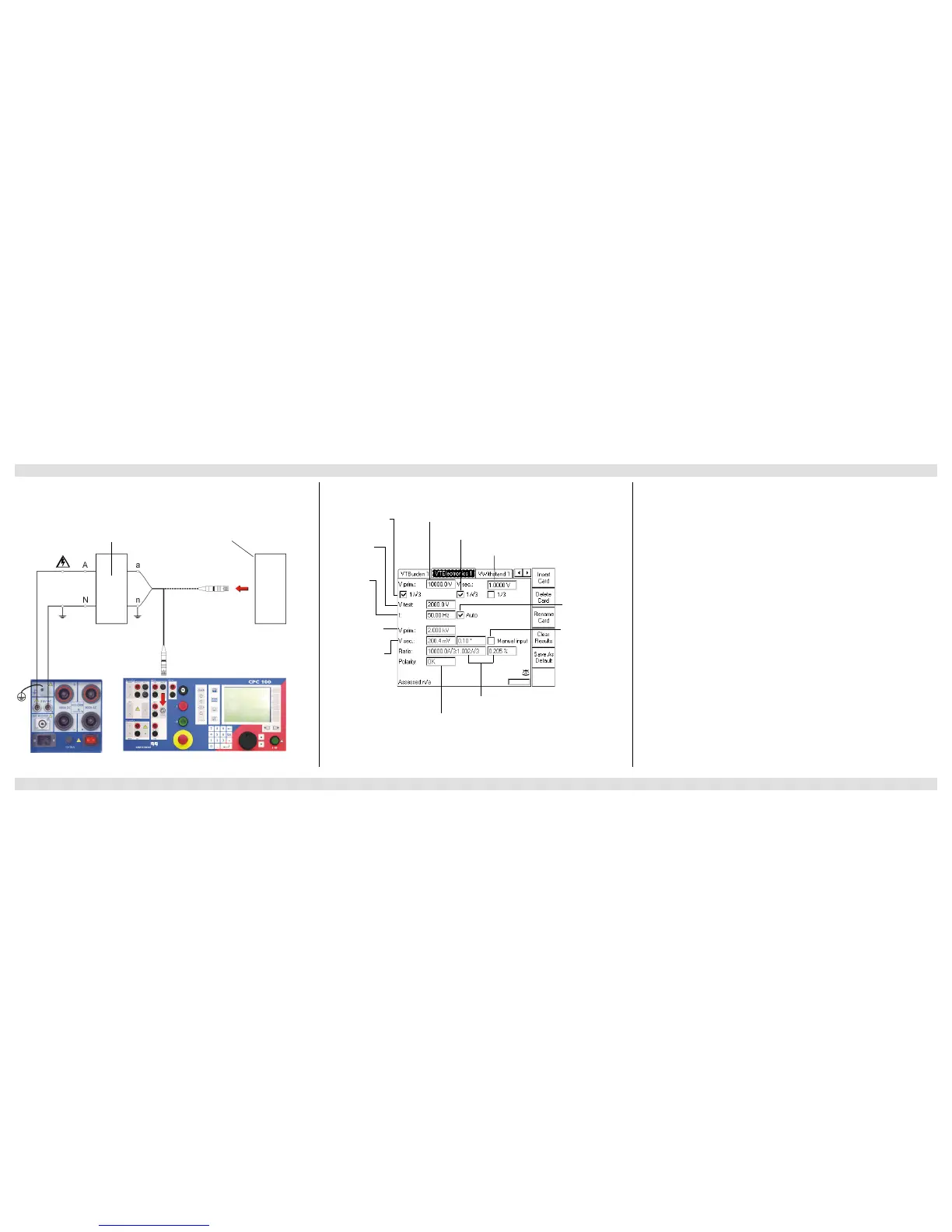

Voltage Transformer - 3
Use the VTElectronics test card to test the ratio of non-conventional electronic voltage
transformers with a very low-level secondary voltage.
Shielded cable with
twisted wires
Electronic protection relay with
low-voltage input
Electronic voltage transformer
Nominal primary voltage
Primary
injection
voltage
Correction factor for
Vprim
Measured
primary voltage
Secondary
voltage measured
at V1 AC, and its
phase angle
relative to the
measured Vprim
Nominal secondary voltage
Select to stop test
automatically when
measurement is
done
Output
frequency
1/3 and 1/3: Correction factors for V sec
Select to enter
secondary voltage
instead of
measuring it
Ratio and deviation in %
Polarity:
OK = phase I sec - phase I prim
= - 45 ° < 0 ° < + 45 °
NOTOK = all other cases
VTElectronics
