Omicron CPC 100 User Manual

CPC 100 V 3.20

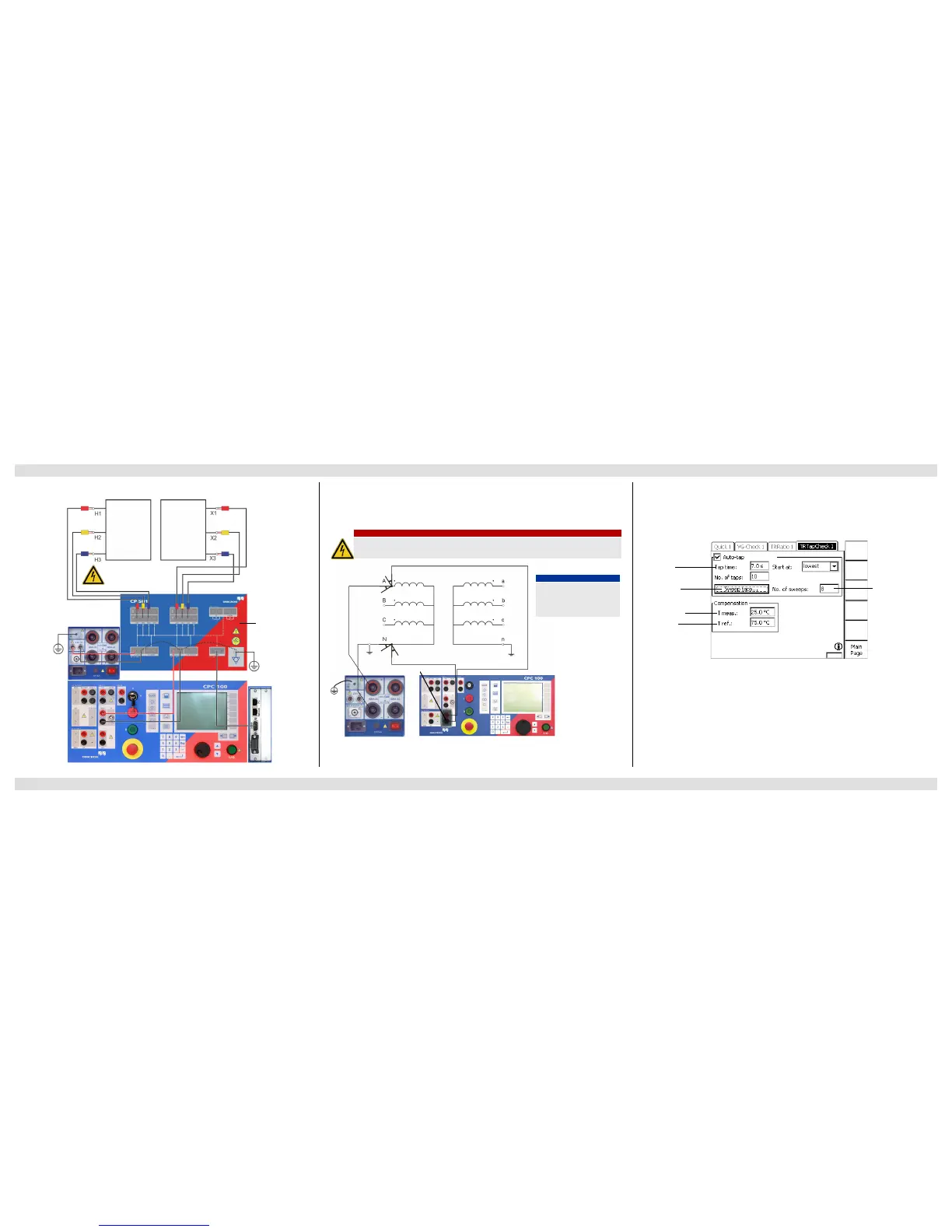

Transformer - 5
Use the RWinding test card to measure the resistance of a power transformer’s winding as
described on page Current Transformer-4. Alternatively, inject the current directly from the
400A DC output as shown below.
The Tap Changer Cleaner Sequence is used to sweep all taps before performing a Winding
Resistance measurement to ensure that the taps are clean.
Note: The Tap Changer Cleaner Sequence can only be activated if the CP SB1 transformer
switch box is connected and Auto-tap is selected.
The currently sweeped tap and the remaining time are displayed during the sequence.
Note: You can only interrupt the Tap Changer Cleaner Sequence by pressing the Emergency
Stop button.
CP SB1
transformer
switch box
DANGER
Death or severe injury caused by high voltage or current
► Connect the CP SA1 discharge box to the CPC 100's VDC input sockets.
CP SA1
NOTICE
The CP SA1 discharge
box also protects the
CPC 100 from damages
caused by high voltage.
1 sweep = every tap
position is actuated
once in each
direction
Measurement
temperature
Time required for
switching between
two taps
Reference
temperature
Click to start Cleaner
Sequence
Vector Group Check Winding Resistance Tap Changer Cleaner Sequence
