CPC 100 V 3.20
Others: Amplifier - 6
Others:
Amplifier
Test set
CMC 256-3
CPC 100 for
phase 1
CPC 100 for
phase 2
CPC 100 for
phase 3
CT 1 CT 2 CT 3
Protection
relay
GPS
synchronization unit
CMGPS

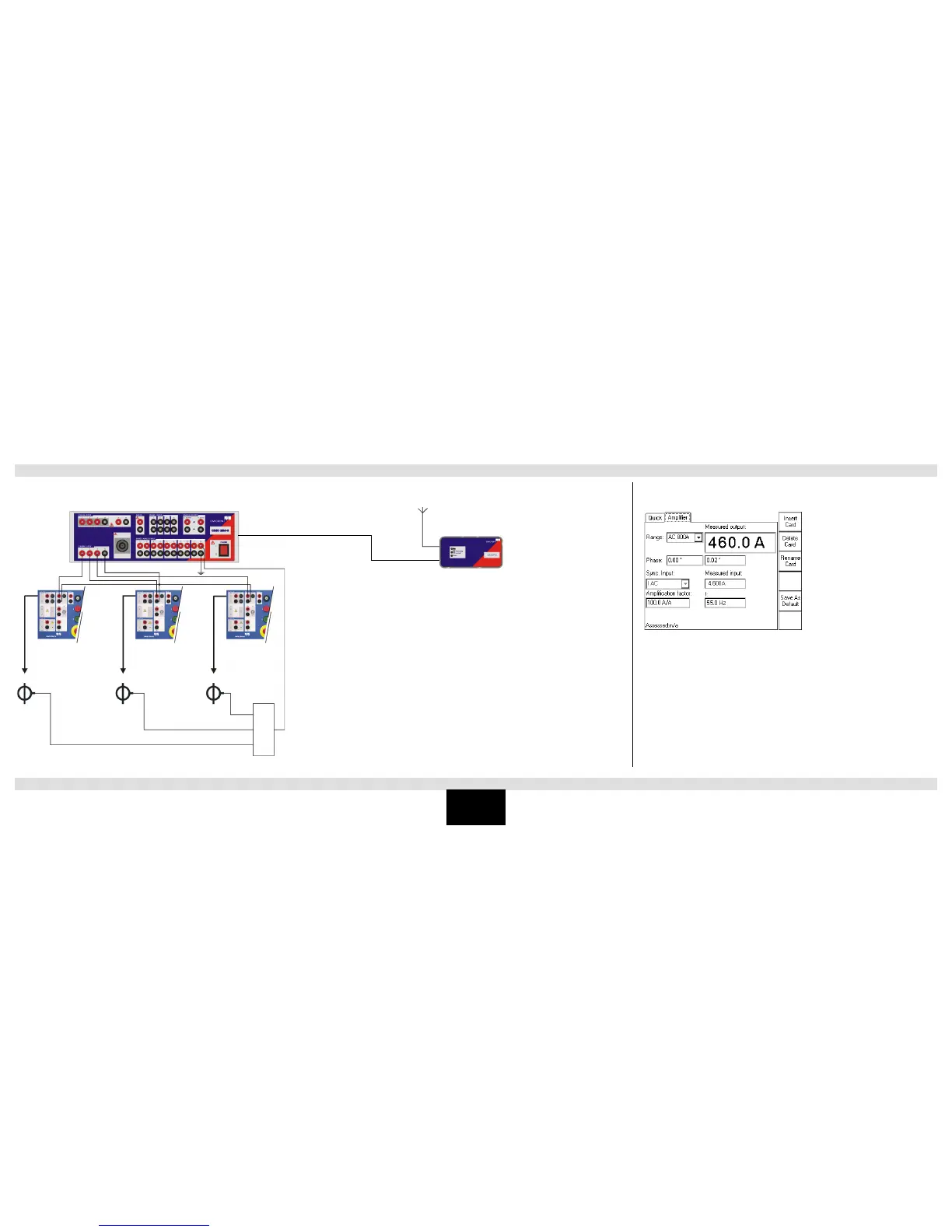

This example shows how the three current outputs of a CMC 256-3 test set are led to the
synchronization inputs IAC of three CPC 100 test sets to drive their high-current outputs. This
way, the CPC 100 high-current outputs represent the "amplified" CMC 256-3 outputs and, in this
example, are connected to three CTs.
Settings of Amplifier test card for this example use case:
Amplifier Use Case: GPS-Synchronized 3-Phase System for End-To-End Testing
