Omicron CPC 100 User Manual

CPC 100 V 3.20
Others: Amplifier - 5
Use the Amplifier test card to set the CPC 100 to an "amplifier-like" mode. In this mode, an
input signal fed into a synchronization input drives the high-current output’s magnitude,
frequency and phase angle.
Select between IAC, V1 AC and V2 AC as synchronization inputs.
To prevent saturation, the output signal follows sudden magnitude changes at the
synchronization input slowly. This smoothening effect delays the follow-up of the output current
up to 250 ms.
Both the "amplification" factor and the phase angle between input and output are set by the user
in the Amplifier test card.
Note: Changes in frequency and phase angle may result in unwanted effects. Both frequency
and phase must be held stable.
Note: The input frequency is limited to a range of 48 ... 62 Hz.
Note: The synchronization input is not automatically range-switching, it is fixed to its maximum
value.

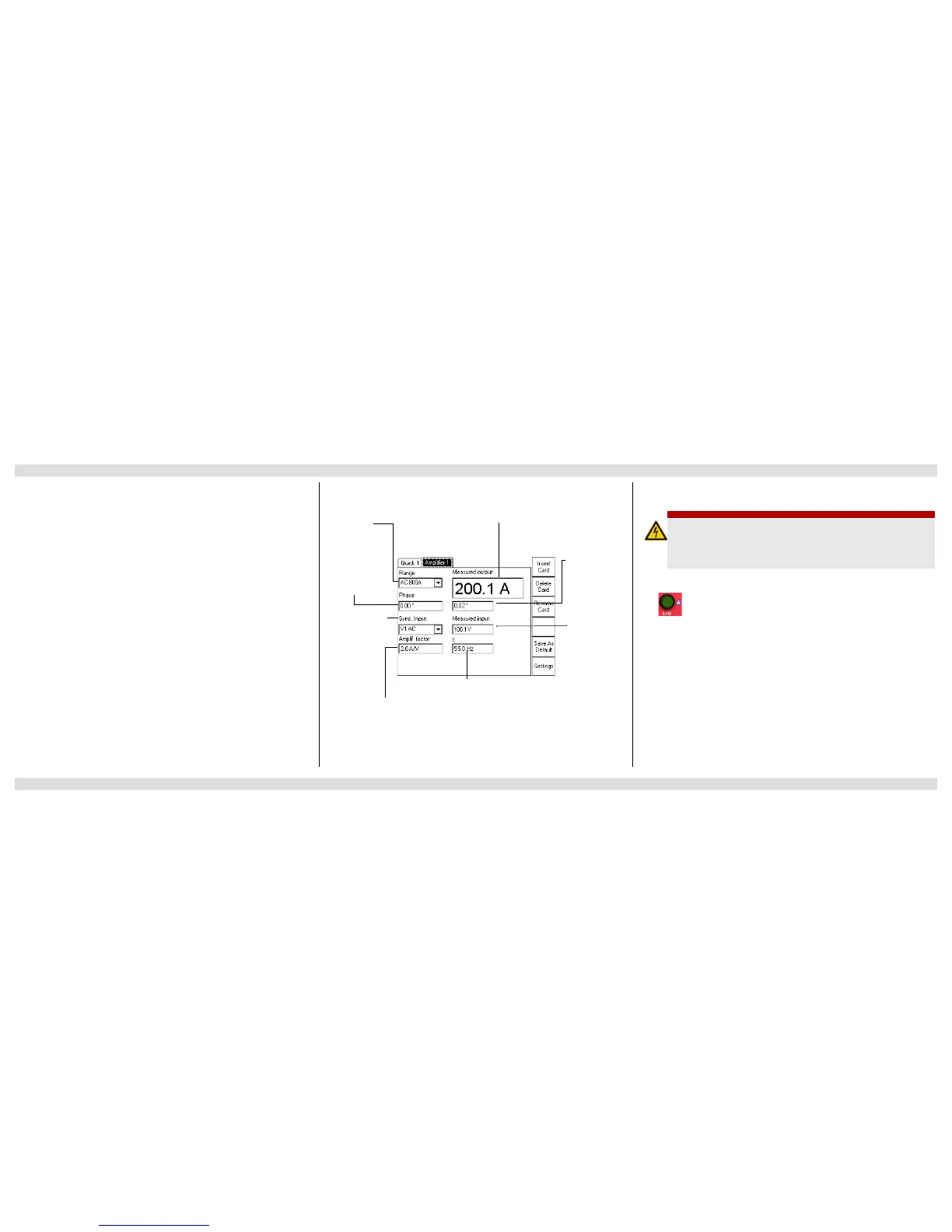

Starting a high-current output
Set range
Set phase angle
between input
and output signal
Select
synchronization
input
Display of the measured high-current
output signal
Value measured
at
synchronization
input (refer
to ”Starting a
high-current
output” in the next
column).
Measured phase
angle between
input and output
signal
Measured input frequency (48 ... 62 Hz)
Set the amplification factor to determine the ratio between input and output signal.
DANGER
Death or severe injury caused by high voltage or current
Depending on the measured input signal, setting the amplification factor can result in
unintentionally high currents.
► If the magnitude of the input signal is unknown or uncertain, set the amplification
factor to "0" before starting the test.
► Set an amplification factor of "0".
► Press I/O (test start / stop) to start the measurement.
Now the display field shows the measured input value.
► With the measured input value in mind, enter the amplification factor now.
► Acknowledge this entry by pressing the handwheel or the Enter key to start the
output.
