Characteristic Range
AC Input / V1 AC Output max. 300 Vrms
DC Input max. 6 A DC
Transformer High and Low Voltage
connections
max. 300 Veff between all connectors and ground
Tap Changer Two potential-free contacts, short circuit-protected;
0-240 V AC (only AC permitted);
Overvoltage Category II;
Resistance per contact = max. 4
I continuous = 0.9 A rms
Supply Via serial interface from the CPC 100 (+15 V)
Overvoltage protection to case with
surge arrestors
All connections to Tranformer High and Low voltage
side; AC/DC Input; V1 AC / V DC Output
Weight Dimensions (W x H x D)
CP SB1 test set 3.5 kg (7.7 lbs) 357 x 235 x 111 mm
(14.1 x 9.2 x 4.4")
test set & case 28.5 kg (62.7 lbs) 700 x 450 x 500 mm
(27.6 x 17.7 x 19.7")
Operating temperature –10 … +55 °C (+14 … 131 °F)
Storage and transportation –20 … +70 °C (–4 … 158 °F)
Max. altitude 2000 m
Humidity 5 … 95 % relative humidity; no condensation
Tested according to IEC 68-2-78
Vibration Tested according to IEC 60068-2-6;
frequency range 10 … 150 Hz; acceleration 2 g
continuous (20 m/s
²
); 20 cycles per axis
Shock Tested according to IEC 60068-2-27 (operating mode);
15 g / 11 ms, half-sinusoid, 3 shocks in each axis
EMC EN 61326-1 Class A
IEC 61326-1 Class A
FCC Subpart B of Part 15 Class A
EN 61326-1
IEC 61326-1
Safety EN 61010-1
IEC 61010-1
UL 61010-1
Suitable for usage according to IEEE 510, EN 50191 (VDE 0104), EN 50110-1
(VDE 0105 Part 100)
Housing and transport case IP20 according to EN 60529

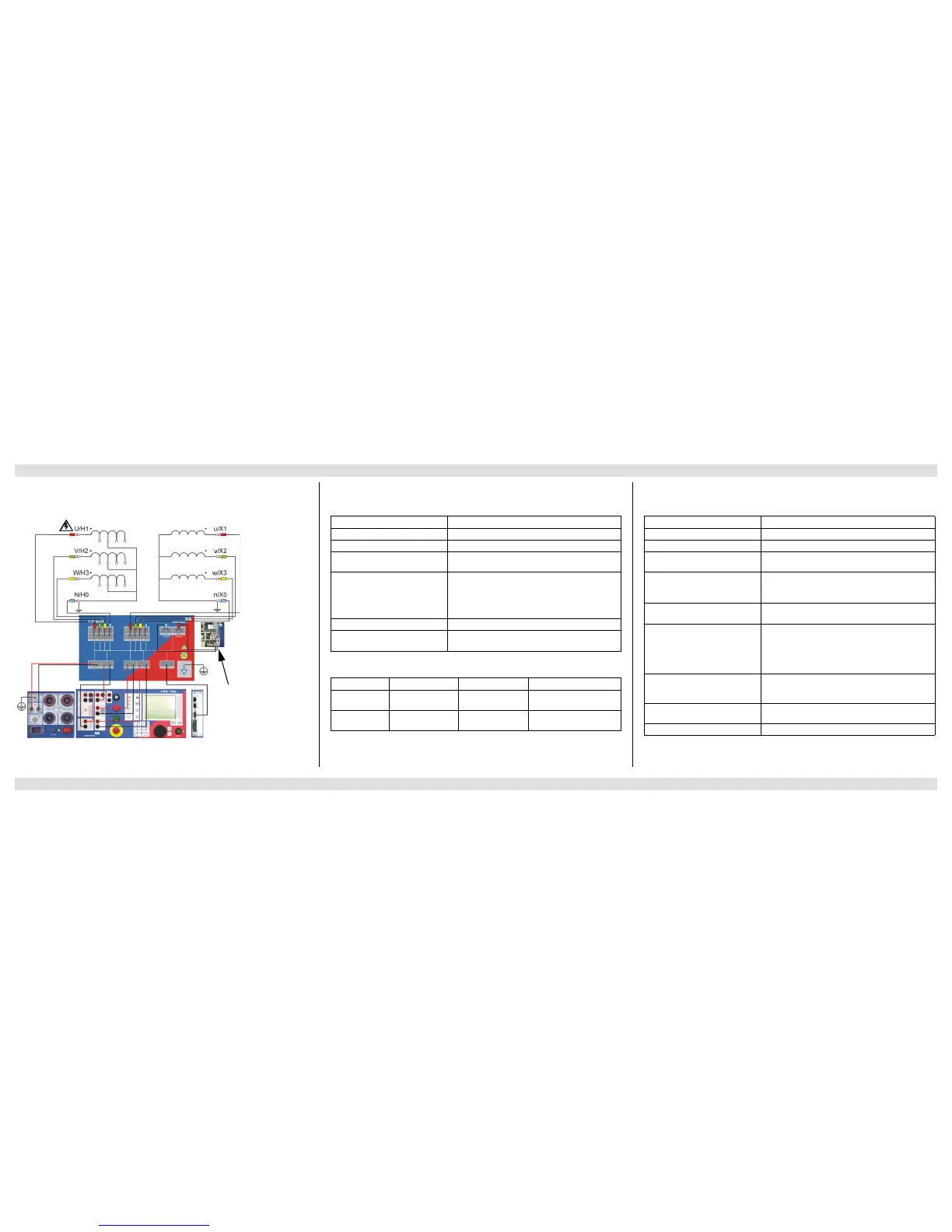

Measurement Setup Technical Data
