In addition to the Dissipation Factor (TanDelta)/Power Factor test, the CP TD1 can also be used
as a high-voltage source for measuring, for example, partial discharge or conducting high-
voltage tests on rotating machines.
To compensate capacitive currents, a parallel resonance circuit can be set up.
The compensation using the CP CR500 compensation reactor is realized in two different ways:
First, by parallel circuiting the compensation reactors to measure as close as possible to the
resonance frequency when measuring with nominal frequency is required. Second, by setting
the frequency to measure at exactly the resonance frequency. The longest output duration is
achieved with testing at resonance frequency, in most cases accomplished by a combination of
both procedures.
The CP TD1 High-Voltage Source test card can be used both for manual or fully automatic
testing by toggling defined ramps and sequences. The test card is also helpful in setting up the
optimum test configuration to achieve the best possible test duration.
Typical Test Procedure
• Without compensation
If the capacitance of the test object is smaller than 80 nF (up to 12 kV and ton > 2 min.), no
compensation is required.
• With compensation
1. Determine the capacitance of the test object
2. Calculate the inductors needed for the compensation
– manual calculation
– by using the CP TD1 High-Voltage Source test card
3. Set the test voltage
4. Set ftest (manually or with Search f0…)
5. Start the test (define test cycle before, if required)
Set test
frequency
Activate
configuration of
test setup with the
CP CR500
Set maximum voltage
Select or show
compensation
inductance
Time of the test.
The time starts
again from zero if
Keep Result is
pressed.
Activate the test
to determine the
test capacitance
Set test
voltage
Activate search of resonance
frequency
Show wiring configuration (test
setup)
Set or show test
capacitance
Define automatic test cycle
Show the sequence
number (only in automatic
mode)
Measured
output
voltage
Output current of the CP TD1
Phase angle between output voltage and
output current
Watt losses of the test setup (test object and
inductors)
Show minimum
inductance possible
with available
CP CR500
Select or show
compensation
inductance
combinations
possible with
available
CP CR500
Shows resonance
frequency with
selected L comp.
and capacitance
set in main page
Set test frequency
Show maximum inductance
possible with available
CP CR500
Show calculated
inductance for
resonance
frequency with
ftest and
capacitance set in
main page
Set available
CP CR500
Show configuration for selected L comp.
Test information

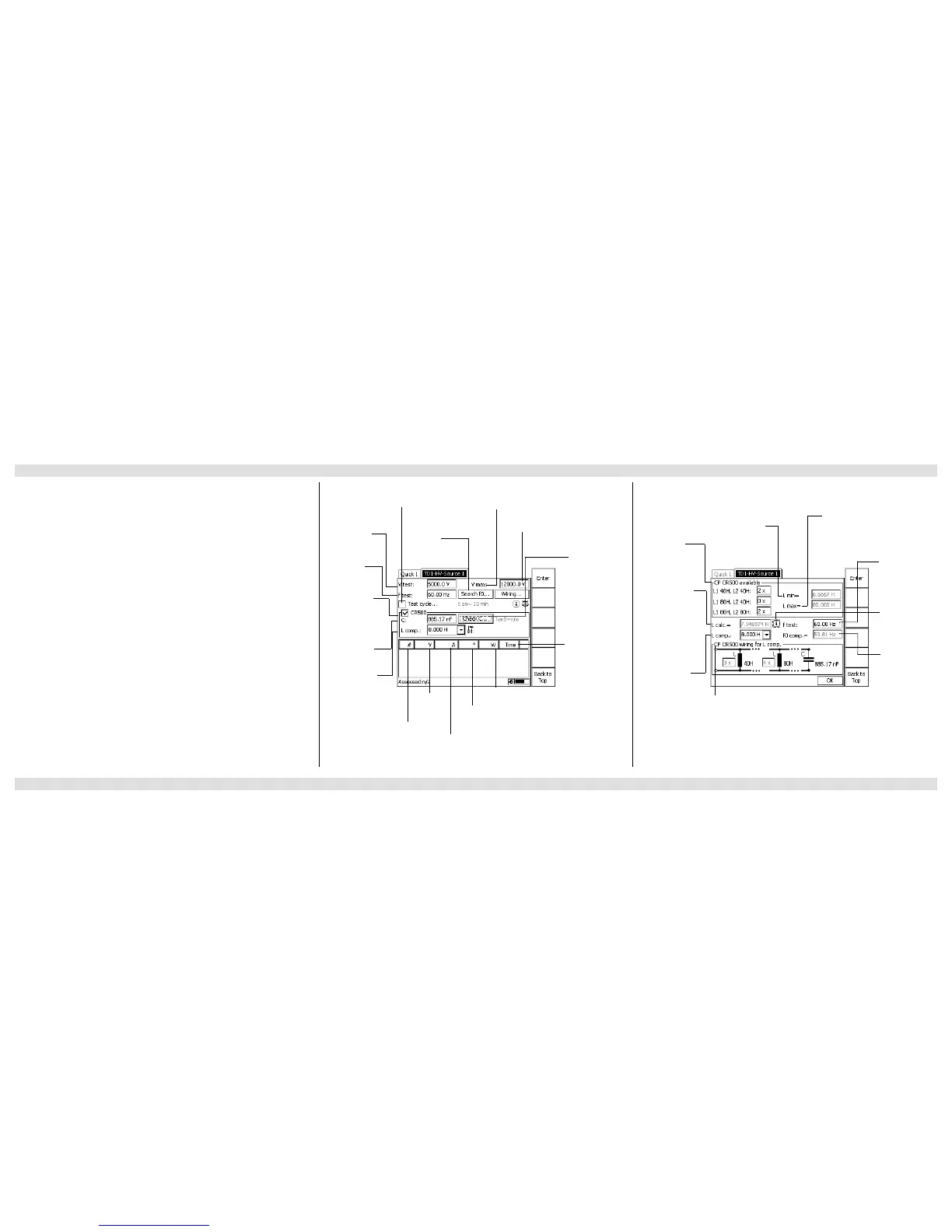

CP TD1 High-Voltage Source Test Settings
