Omicron CPC 100 User Manual

CPC 100 V 3.20
Others: Sequencer - 1

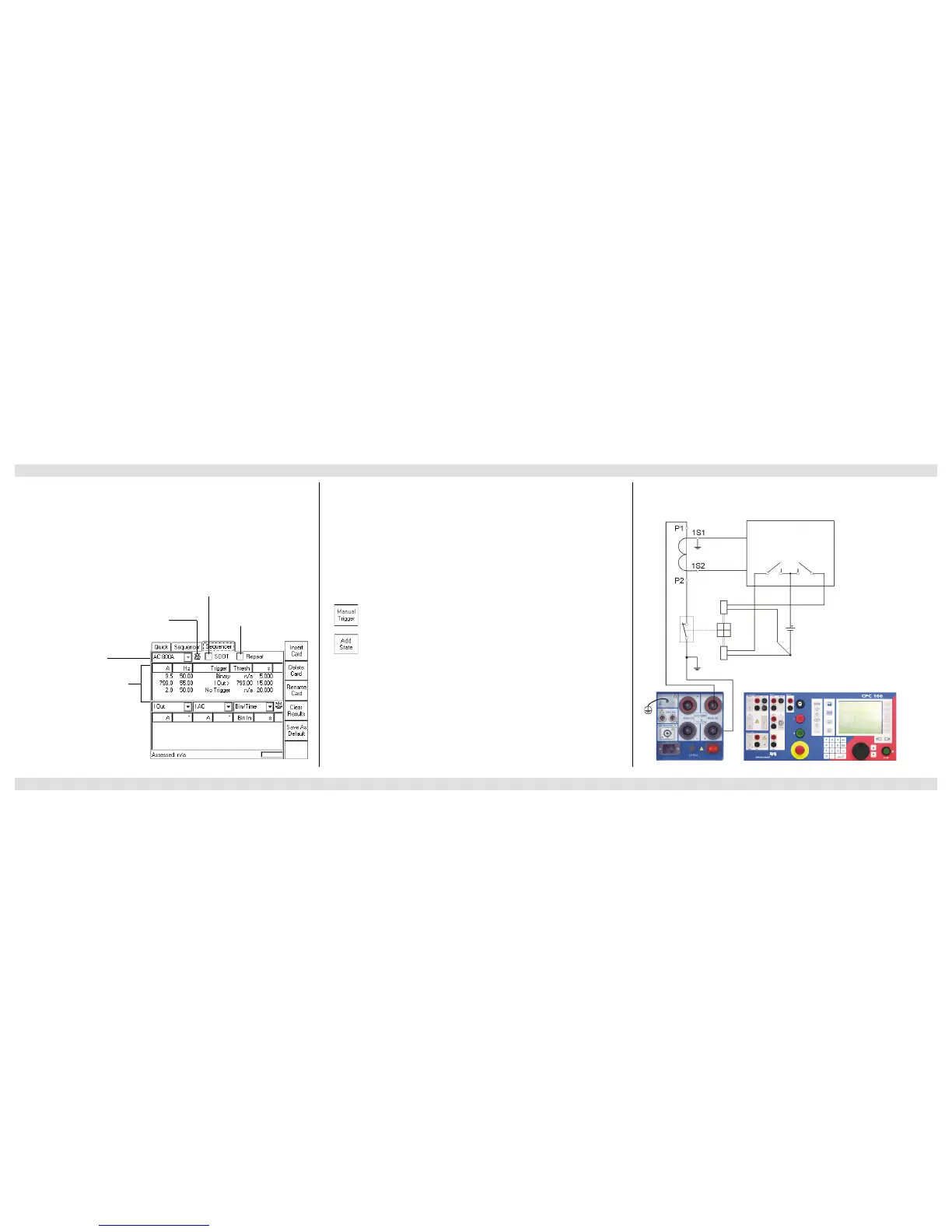

Use the Sequencer test card to define a sequence of states to be applied to a connected test
object. A sequence of up to 7 states can be defined. The states within that sequence execute
sequentially. For each state, a trigger signal can be specified to prematurely terminate this state
and execute the next one.
A sequence of states can either be executed once from state 1 to state x, or repeated
continuously. Furthermore, the complete sequence can prematurely be terminated if during the
execution of one of its states this state’s specified trigger condition occurs.
This sequence of four states tests a complete autoreclosure cycle with both a short dead time
(rapid autoreclosure) and a long dead time (slow autoreclosure).
Switch off on trigger, i.e., abort sequence when the trigger condition becomes true
The sequence is repeated
endlessly.
***)
Synchronize with V1 AC (needs up to 200 ms to
synchronize)
Output range selection
States table (state-specific settings):
• output quantity settings
• trigger specification
*)
• duration of state if no trigger
occurs
**)
*) Note that some of the trigger events offered in the trigger event combo box
depend on the measured quantity settings below (trigger on measurement).
Trigger on "Overload": the occurrence or the clearing of an output overload
condition (clearing is delayed by 100 ms to debounce).
**) Setting a time of 0.000 s makes the state infinite. Only a trigger signal will
terminate it.
***) This option can lead to a freeze of the CPC 100 caused by a memory overflow.
This can happen if there are too much results in a certain time. In this case, the
CPC 100 can only be switched off via the Emergency Stop button. The CPC 100
will work properly again after rebooting the device.
The feature Manual Trigger provides a possibility to manually initiate a trigger
signal (i.e., a premature termination) of the current state at any time. This manual
trigger has the same function as an automatic trigger signal.
Press the Add State button to define additional states. Note that the maximum
possible number of states is 6.
I>
ONOFF
General Testing an Overcurrent Relay with an ARC Function
Others: Sequencer
