CP CU1
CP CU1 - 6
CP CU1

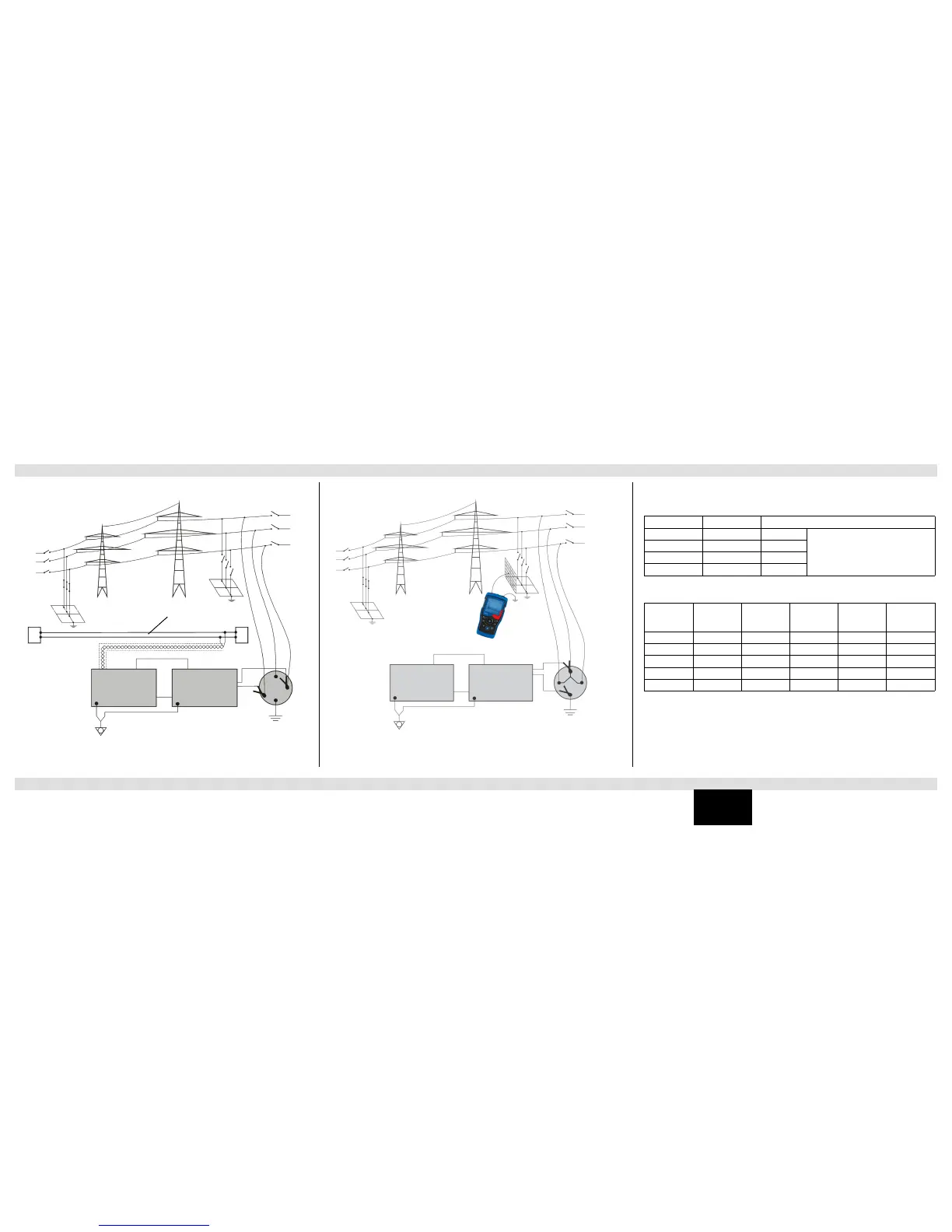

There are four measurements with different connections. For detailed information, refer to the
template or the CP CU1 Reference Manual.
For step and touch voltage measurements using the HGT1 FFT voltmeter, refer to the
HGT1 User Manual.
Output Ranges
Accuracy
IAC
BOOSTER
IOUT
CP CU1
V2 AC
IAC
CPC 100
EXT. BOOSTER
CP GB1
Signal cable
IAC
CPC 100
EXT. BOOSTER
IAC
BOOSTER
IOUT
CP CU1
CP GB1
Fence
Range Current Compliance Voltage @ > 45 Hz
10A 0…10Arms 500Vrms 5000VA (45…70Hz)
cos < 1.0 @ 230 V AC mains voltage
cos < 0.4 @ 115 V AC mains voltage
for 8 s or 1600 VA continuously
20 A 0 … 20 Arms 250 Vrms
50 A 0 … 50 Arms 100 Vrms
100A 0…100Arms 50Vrms
Impedance
Range
Typical
Accuracy of
abs(Z)
Typica l
Accuracy of
Phase
V SENSE
Volta ge
IOUT
Current
Current
Range
0.05 … 0.2  1.0 … 0.5 % 1.5 … 0.8° 5 … 20 V 100 A 100 A
0.2 … 2  0.5 … 0.3 % 0.8 … 0.5° 20 … 50 V 100 … 25 A 100 A
2…5 0.3 % 0.5° 100 V 50 … 20 A 50 A
5…25 0.3 % 0.5° 100 … 250 V 20 … 10 A 20 A
25 … 300  0.3 … 1.0 % 0.5 … 1.5° 250 … 500 V 10 … 1.5 A 10 A
Measurement of Coupling into Signal Cables Step and Touch Voltage Measurement Technical Data
