The equipment trolley holds the CPC 100, CP TD1 and all required cables. The trolley is
equipped with a grounding bar with three knurled screws to ensure a solid grounding to
equipotential ground of all devices.
If the CPC 100 and CP TD1 are to be operated without trolley, place them on their transport
cases and connect them with the long type data cable CPC 100  CP TD1 (3 m) and the long-
type booster cable CPC 100  CP TD1 (3 m). Each device has to be grounded separately with
a 6 m grounding cable of at least 6 mm².
Cable drum with
double-shielded
output cable to feed
the high voltage to the
test object
Equipment trolley
CPC 100, CP TD1 and
the equipment trolley
connected to the
trolley’s grounding bar
and led to earth.
Grounding cable min.
6mm².
Equipotential ground
Booster cable
CPC 100
 CP TD1
(short type). Via this
cable the CPC 100
controls the CP TD1
output voltage.
CPC 100
CP TD1
Swiveling mounting brackets for the CPC 100 (top)
and CP TD1 (bottom)
The CP TD1’s measuring inputs IN A
and IN B, connected to the cable drum
for the measuring cables
Data cable CPC 100
 CP TD1 (short
type). Via this data cable the CPC 100
software (test card TanDelta) controls
the CP TD1.
To secure the CPC 100 while pulling the
trolley, a safety belt is available (not
shown).

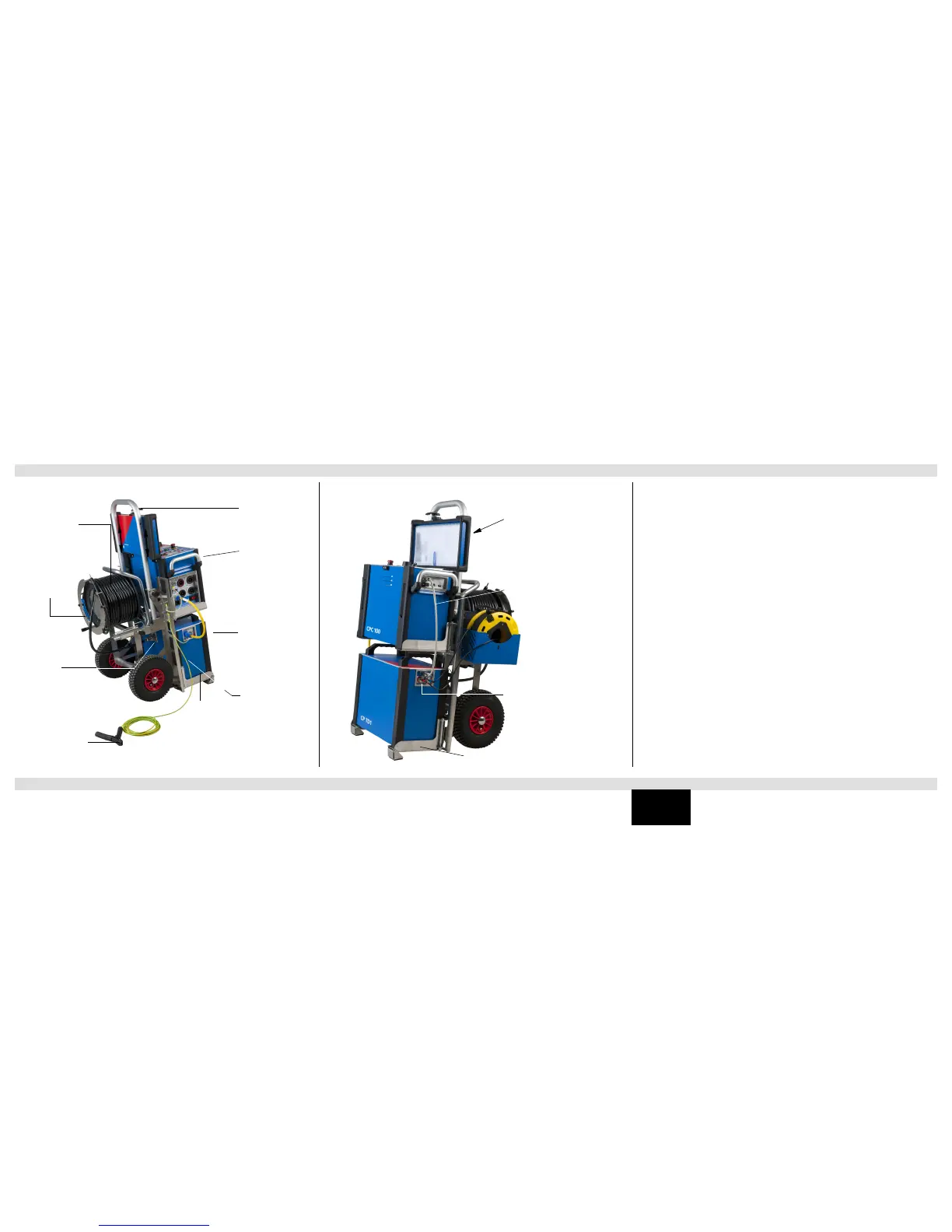

Functional Components Setup of Devices with and without Trolley
Cable drum for
measuring
cables
High-voltage
output with
attached screw
plug and yellow
grounding plug.
