Omicron CPC 100 User Manual

CP CB2
CP CB2 - 1
For test applications requiring up to 2000 A.
The output current of the CPC 100 can be increased up to 2000 A by means of an electronically
controlled current booster. The CP CB2 can be connected close to the busbar using short high-
current cables and to the CPC 100 with a long control cable.
Select the CP CB2 as external booster on the Device Setup tab in the Options menu:
Note: If you select the CP CB2 as external booster on the Device Setup tab in the Options
menu, it will be saved as default value for new test cards. However, it is also possible to select
the external booster individually on the test cards. The settings for already inserted test cards
will only be changed if no test results are available yet.

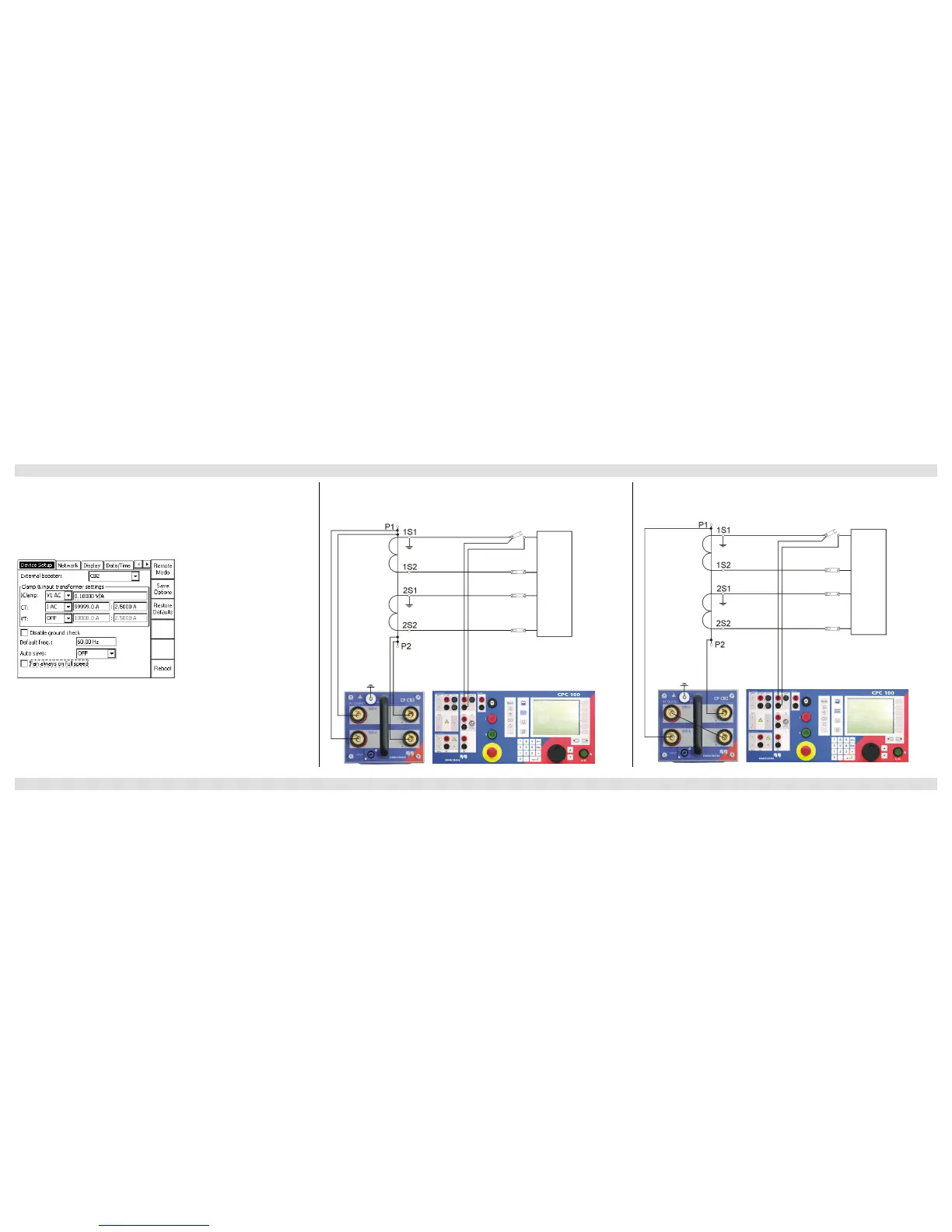

2000 A mode: 1000 A mode:
Burden
Burden
General Operation Modes of the CP CB2
CP CB2
