CPC 100 V 3.20
Resistance - 2
Resistance

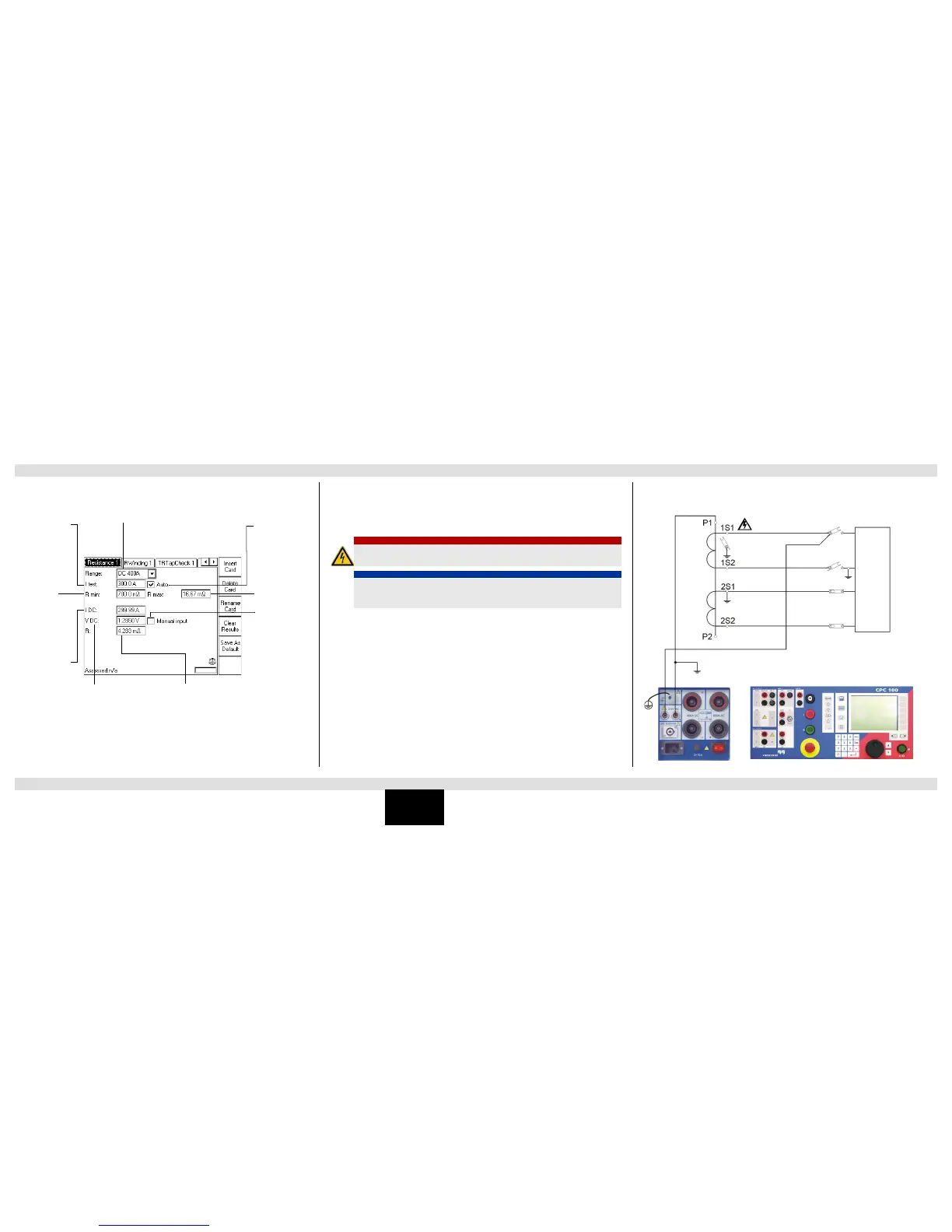

Use the RWinding test card to measure the resistance of a current transformer’s secondary
winding as described on page Current Transformer-4.
Alternatively, inject the current directly from the 400A DC output.
This test is identical to the voltage withstand test described on page Current Transformer-4.
Output range, select from 400A DC, 6 A DC
or V DC (2 wire)
Nominal test
current (“n/a” if
V DC 2 wire)
Select to stop test
automatically
when
measurement is
done
Actual test current
that is injected
into the test object
Measured voltage drop
at the test object
Calculated resistance of test object, R = V DC
/ I DC
Smallest possible
resistance
Highest possible
resistance
Select to enter
VDC manually
instead of
measuring it
DANGER
Death or severe injury caused by high voltage or current
► Connect the CP SA1 discharge box to the CPC 100’s VDC input sockets.
NOTICE
Equipment damage caused by high voltage or current
► Using the CP SA1 discharge box also protects the CPC 100 from damages caused
by high voltage.
CT
Burden
µ Measurement Winding Resistance Voltage Withstand Test
