4-4 OmniRx G4 Console Upgrade
Remove the G3 Sled
OmniRx Service Guide/67-2023 Rev F © 2011 Omnicell, Inc.

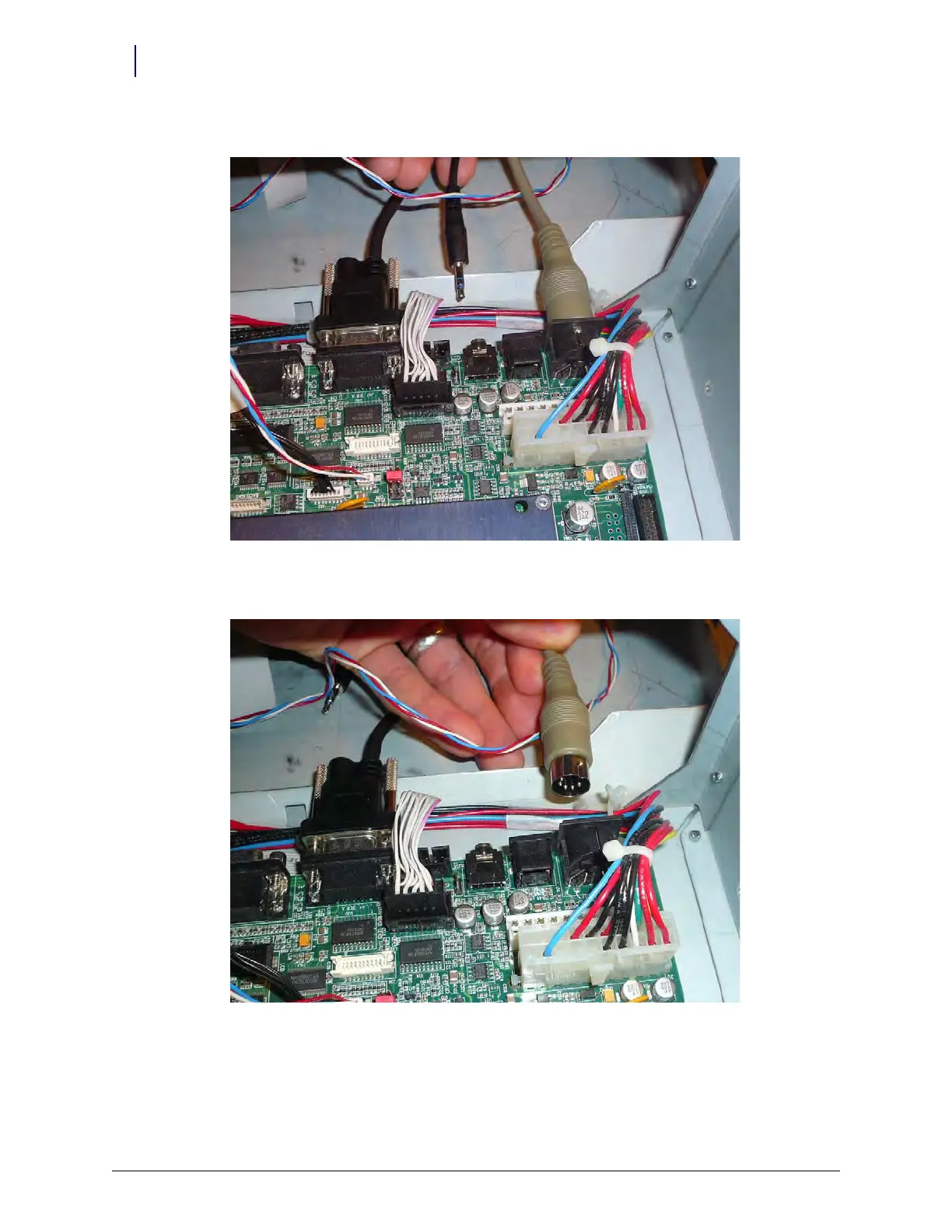

6. Disconnect the speaker cable from port J45 on the motherboard.
Figure 4-5. Disconnect the speaker cable from J45 of the motherboard
7. Disconnect the keyboard cable from port J42 on the motherboard.
Figure 4-6. Disconnect the keyboard cable from J42 of the motherboard
