867
Network Instructions Section 3-24
(7) Refer to Automatic Allocation of Communications Ports on page 851 for
details on using automatic allocation of the communications port number
(logical port).
(8) When the destination node number is set to FF (broadcast transmission),
there will be no response even if bits 12 to 15 are set to 0.
Operand Specifications
Description SEND(090) transfers the data beginning at word S to addresses beginning at
D in the designated device through the PLC’s CPU Bus or over a network.
The number of words to be transmitted is specified in C.
If the destination node number is set to FF, the data will be broadcast to all of
the nodes in the designated network. This is known as a broadcast transmis-
sion.
If a response is requested (bits 12 to 15 of C+3 set to 0) but a response has
not been received within the response monitoring time, the data will be
retransmitted up to 15 times (retries set in bits 0 to 3 of C+3). There will be no
response or retries for broadcast transmissions.
SEND(090) can be used to transmit data to a particular serial port in the des-
tination device as well as the device itself.
Data can be transmitted to a host computer connected to the PLC’s serial port
(when set to host link mode) as well as a PLC or computer connected through
a Controller Link or Ethernet network.

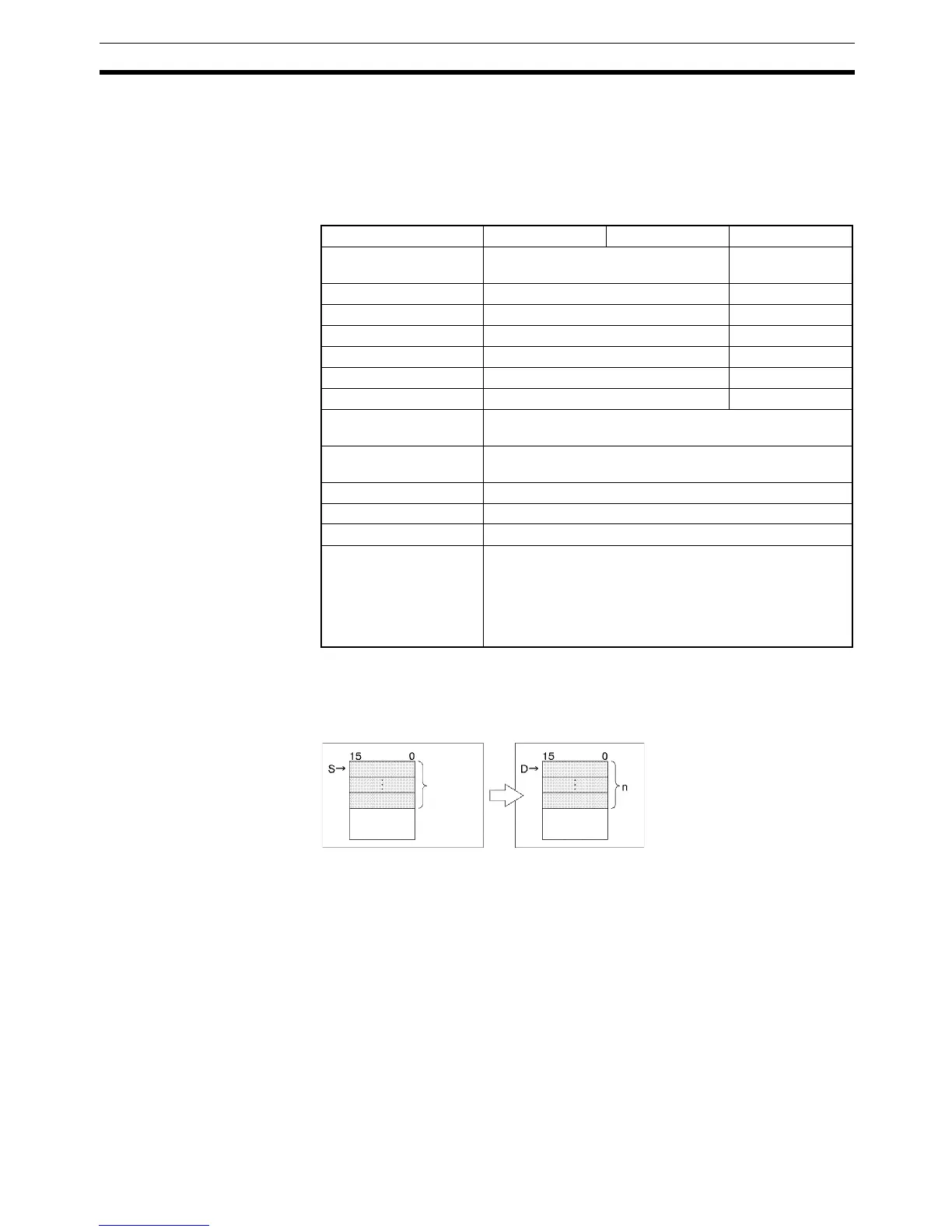

Area S D C
CIO Area CIO 0 to CIO 6143 CIO 0 to
CIO 6139
Work Area W0 to W511 W0 to W507
Holding Bit Area H0 to H511 H0 to H507
Auxiliary Bit Area A0 toA959 A0 to A955
Timer Area T0000 to T4095 T0000 to T4091
Counter Area C0000 to C4095 C0000 to C4091
DM Area D0 to D32767 D0 to D32763
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Local node Destination node
Number
of words
to trans-
mit, n
