Failure Diagnosis Instructions Section 3-28
Logic Diagnosis Function (C=800A)
Since the leftmost digit of C is 8 (bit address and message output mode) the
address of CIO 1000.00 (1000.03) is output to D302 through D304 in ASCII.
Setting the Monitoring Time with the Teaching Function
The monitoring time can be set automatically with the teaching function when
a word address has been specified for T.
To start the teaching function, turn ON A598.00 (the FPD Teaching Bit). While
A598.00 is ON, FPD(269) measures how long it takes for the diagnostic out-
put (CIO 200.00) to go ON after the execution condition (CIO 1000.00) goes
ON. If the measured time exceeds the monitoring time in T, the measured
time is multiplied by 1.5 and that value is stored in T as the new monitoring
time.

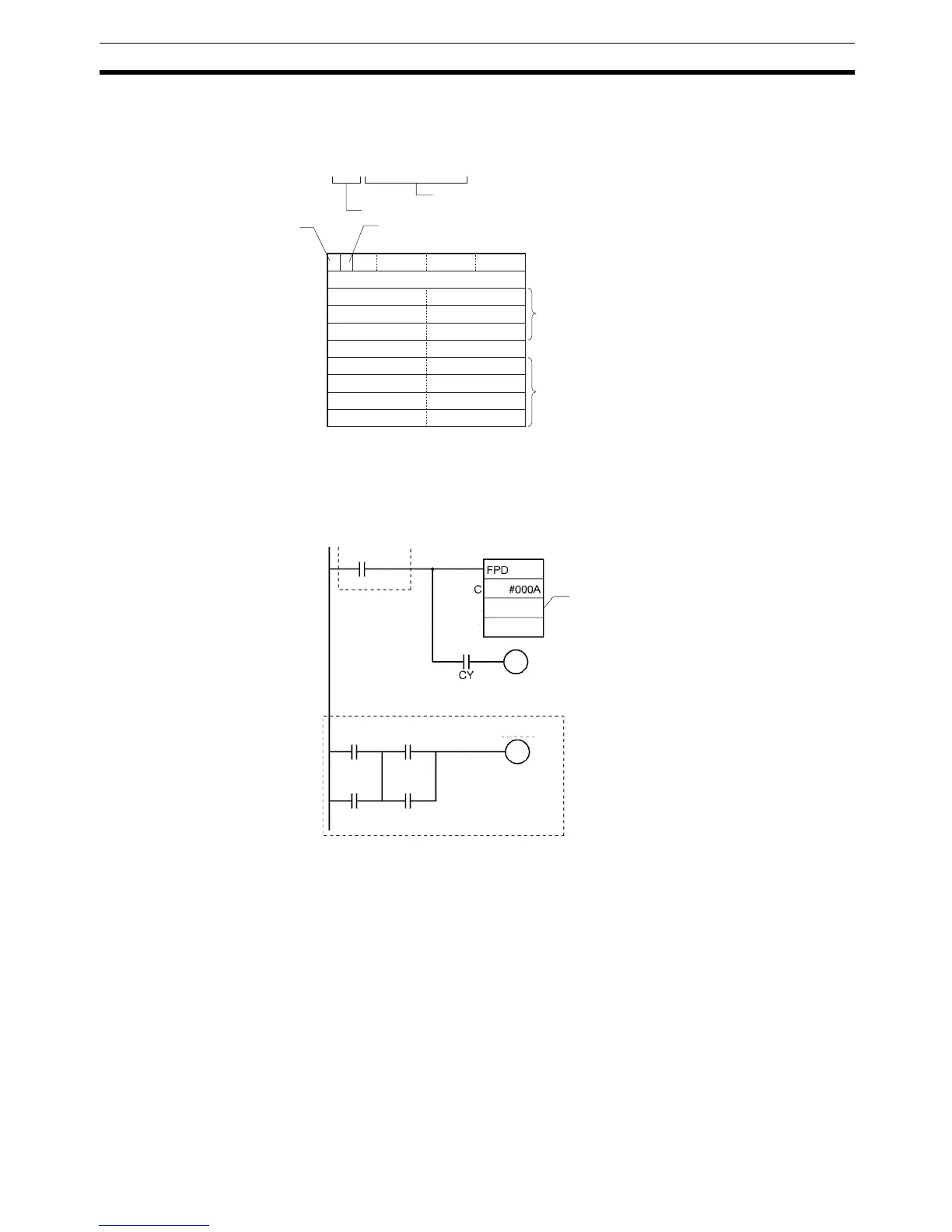

R+1: D301
R: D300
R+2: D302
R+3: D303
R+4: D304
R+5: D305
R+6: D306
R+7: D307
R+8: D308
R+9: D309
C# 800A
31 ("1")
30 ("0")
2E (".")
30 ("0")
54 ("E")
25 ("R")
25 ("R")
00 ("_")
30 ("0")
30 ("0")
30 ("0")
2D ("-")
25 ("R")
F4 ("O")
00 ("_")
00 ("_")
015 8
71514
1
0
FAL number = 10
Diagnostic output mode = 8 (bit address and message output)
Bit Address Found Flag
1: Bit address found
Input type
0: Normally open
User-set FAL error message output to the
CX-Programmer by the time monitoring
function. The CX-Programmer will show the
following: 1000.00 ERROR.
Not used.
Not used.
Contains bit address in
ASCII.(1000.00 is
converted to ASCII.)
T
R
200.00
D200
D300
1000.00
The teaching function
can set the monitoring
time in T automatically.
Execution
condition
Diagnostic output
