69

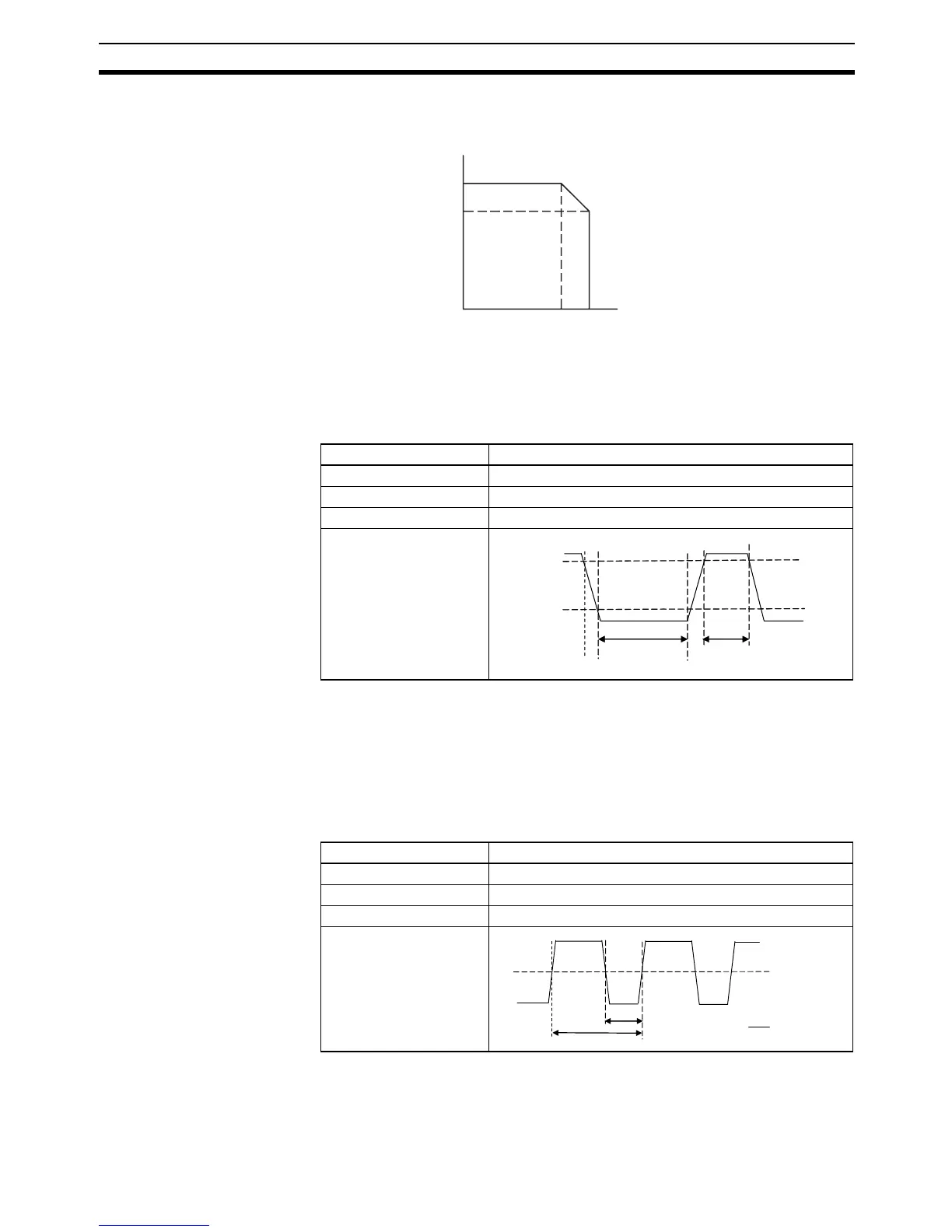

Specifications Section 2-2
(2) If the ambient temperature is maintained below 50°C, up to 0.9 A/com-
mon can be used.
!Caution Do not connect a load to an output terminal or apply a voltage in excess of the
maximum switching capacity.
Pulse Outputs (CIO 100.04 to CIO 100.07)
Note (1) The load for the above values is assumed to be the resistance load, and
does not take into account the impedance for the connecting cable to the
load.
(2) Due to distortions in pulse waveforms resulting from connecting cable im-
pedance, the pulse widths in actual operation may be smaller than the
values shown above.
PWM Outputs (CIO 101.00 and CIO 101.01)
0.9
0.6
0
5550
0
Common terminal
current (A)
Ambient temperature (°C)
Item Specification
Max. switching capacity 30 mA/4.75 to 26.4 VDC
Min. switching capacity 7 mA/4.75 to 26.4 VDC
Max. output frequency 100 kHz
Output waveform
4 µs min.
2 µs min.
ON
90%
10%
OFF
Item Specification
Max. switching capacity 30 mA/4.75 to 26.4 VDC
Max. output frequency 1 kHz
PWM output accuracy For ON duty +5%, −0%/1 kHz output.
Output waveform
ON
t
ON
T
OFF
× 100%
t
ON
T
ON duty =
