Omron CP1H CPU User Manual

68
Specifications Section 2-2

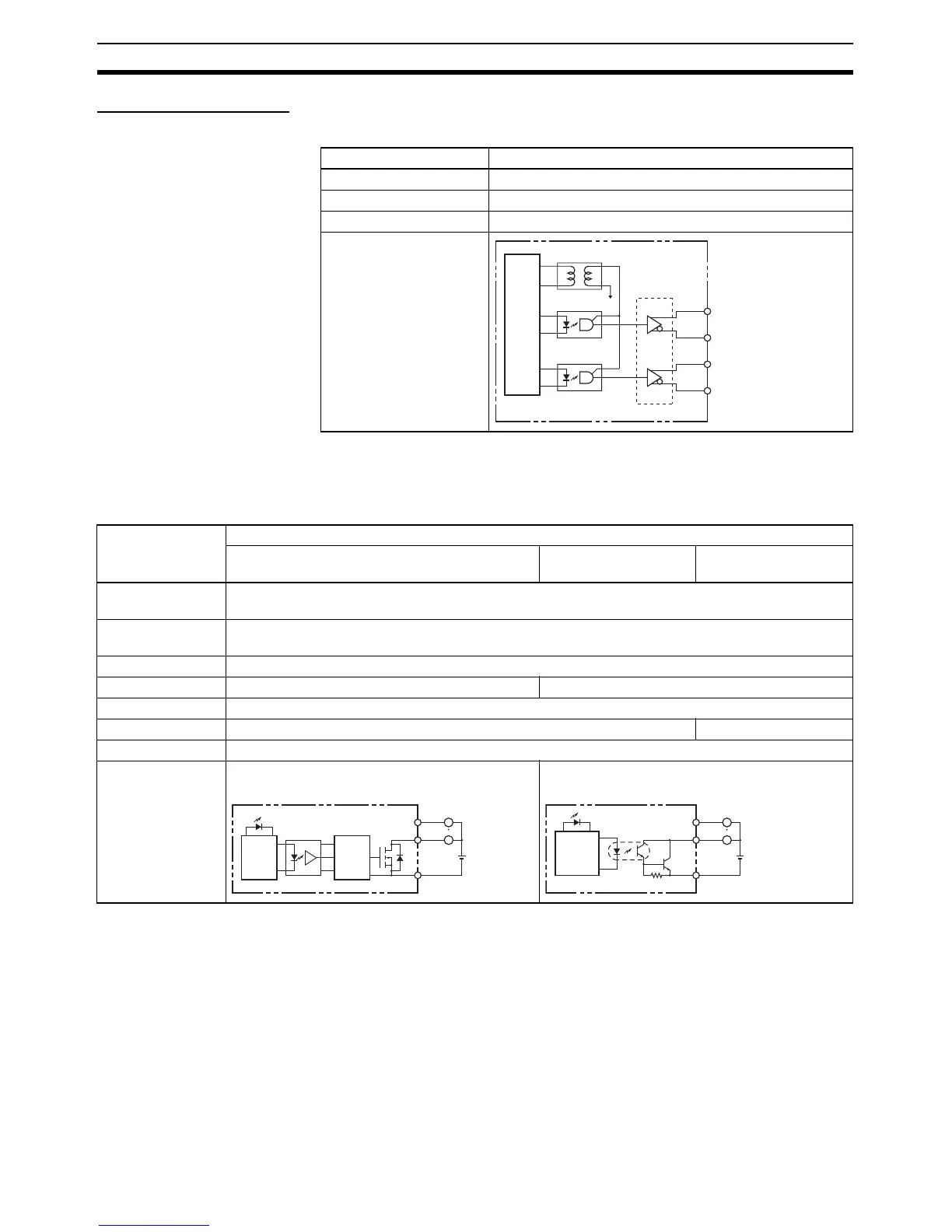

Output Specifications
Special Pulse Outputs
!Caution Connect a load of 20 mA or less to the output load. Connecting a load
exceeding 20 mA may cause the Unit to malfunction.
Normal Outputs
Note (1) The fuse cannot be replaced by user.
Item Specification
Special pulse outputs Line-driver output, AM26LS31 or equivalent
Max. output current 20 mA
Max. output frequency 1 MHz
Circuit configuration
Item Specification
CIO 100.04 to CIO 100.07 CIO 101.00 and
CIO 101.01
CIO 101.02 and
CIO 101.03
Max. switching
capacity
4.5 to 30 VDC, 300 mA/output, 0.9 A/common, 1.8 A/Unit (See note 2.)
Min. switching
capacity
4.5 to 30 VDC, 1 mA
Leakage current 0.1 mA max.
Residual voltage 0.6 V max. 1.5 V max.
ON delay 0.1 ms max.
OFF delay 0.1 ms max. 1 ms max.
Fuse 1 fuse/common (See note 1.)
Circuit configura-
tion
• Normal outputs CIO 100.04 to CIO 100.07
(Sinking Outputs)
• Normal outputs CIO 101.00 to CIO 101.03
(Sinking Outputs)
CWn+
CWn−
CCWn+
CCWn−
Internal circuits
OUT
OUT
COM (−)
L
L
Internal
circuits
Internal
circuits
24 VDC/4.5
to 30 VDC
OUT
OUT
COM (−)
L
L
Internal
circuits
24 VDC/4.5
to 30 VDC
