CP1H CPU Unit Operation Section 2-3

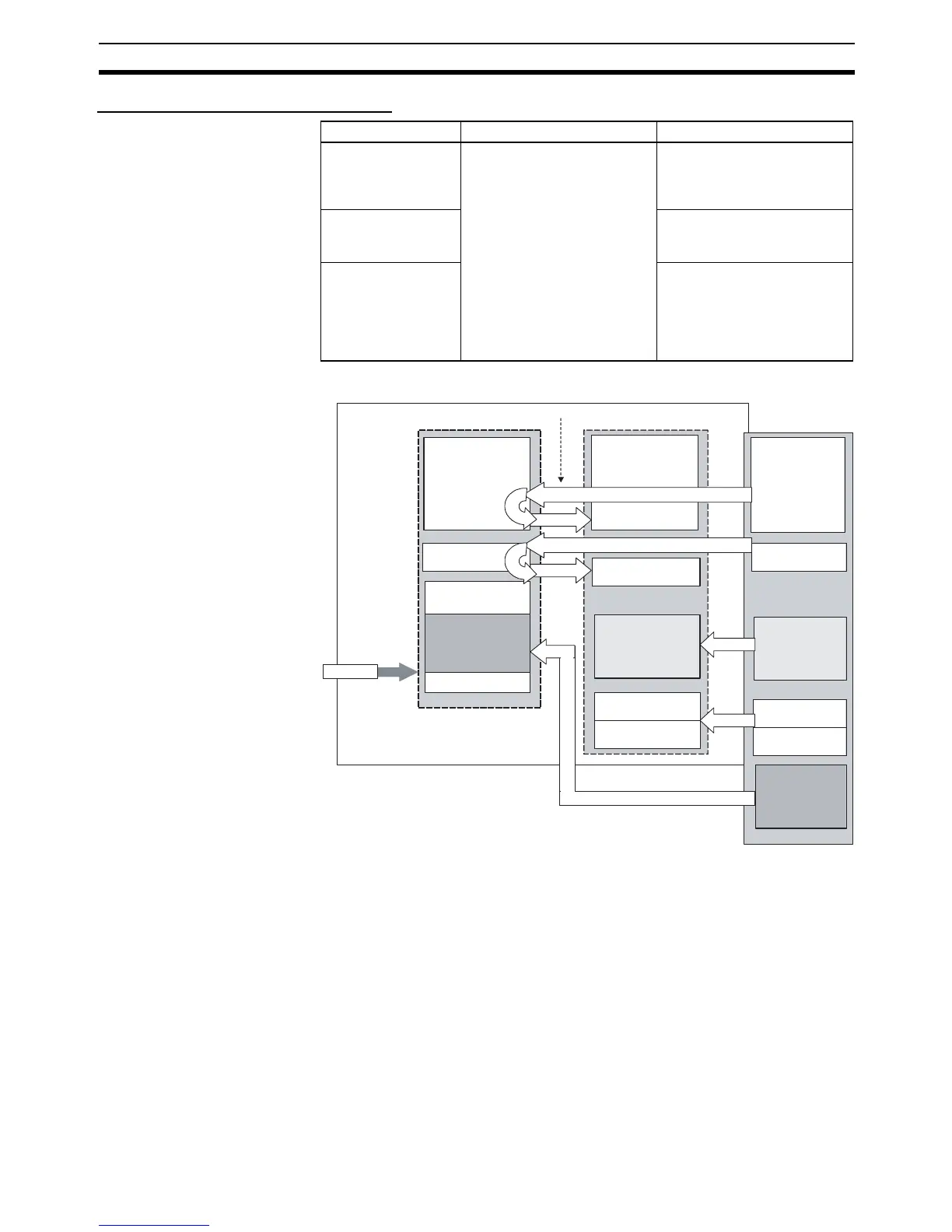

Reading from a Memory Cassette
Data Method Destination
User program and
parameter data
This data is transferred by
turning SW2 on the DIP
switch to ON and turning ON
the power supply.
Data in the Memory Cassette
is transferred to RAM and
then automatically transferred
to the built-in flash memory.
Comment memory
and function block
source data
Data is transferred to the built-
in flash memory.
DM Area data DM Area data originally from
the built-in flash memory is
transferred back to the flash
memory and DM Area data
originally from RAM is trans-
ferred to RAM.
RAM
DM Area
data from RAM
User program
area
Parameter
area
I/O memory area
DM Area
Battery
Backup
Built-in flash memory
Power turned ON with SW2 turned ON
Parameter area
DM Area initial
values
Comment
memory area
FB source
memory area
Memory Cassette
User program
area
Parameter area
DM Area initial
values
Comment
memory area
FB source
memory area
CPU Unit
FB = Function block
