108
Mounting Section 3-3

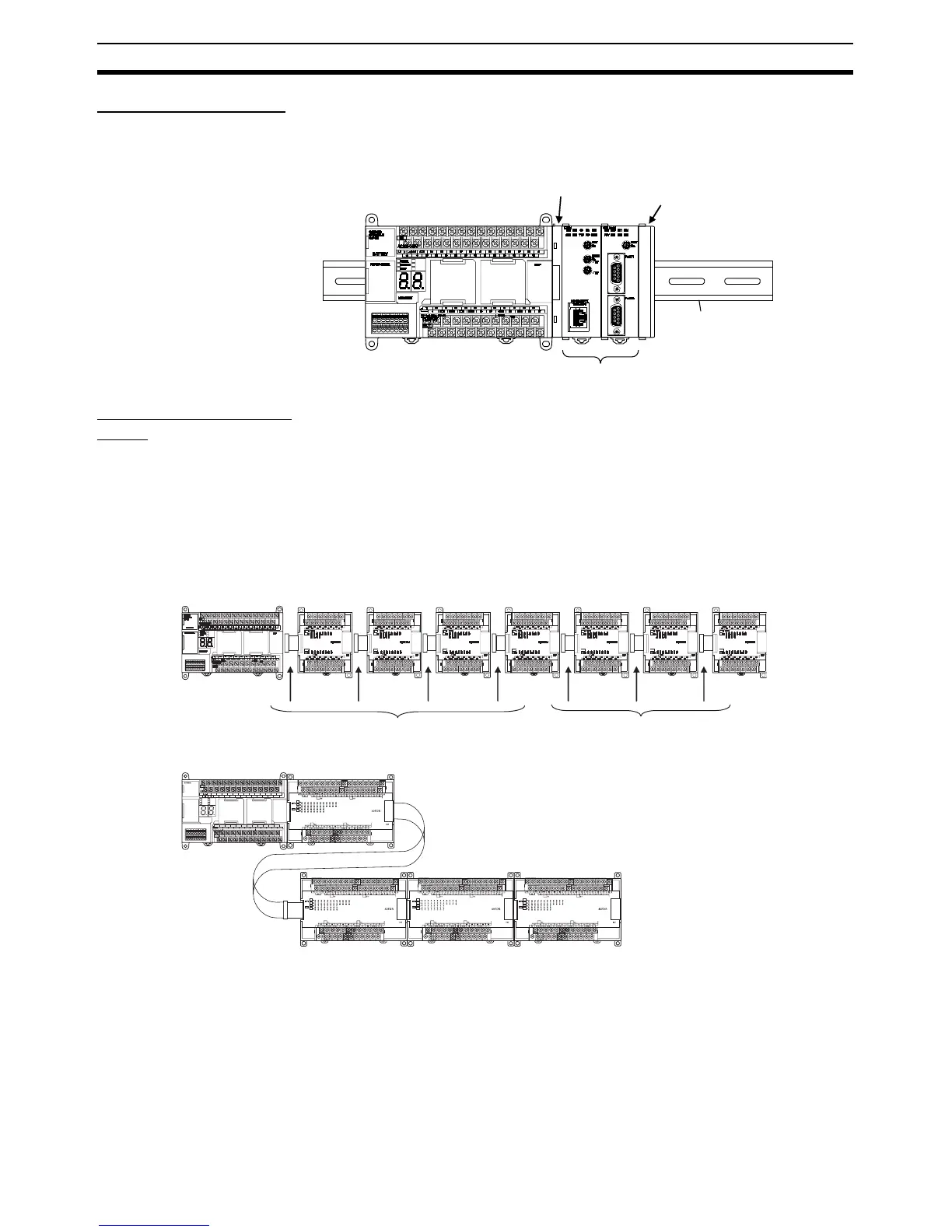

DIN Track Installation CJ-series Special I/O Units or CPU Bus Units must be mounted to a DIN
Track, along with the CP1H CPU Unit. Secure the DIN Track with screws in at
least three places.
Using I/O Connecting
Cable
When using CP-series Expansion Units and Expansion I/O Units, it is possible
to use CP1W-CN811 Connecting Cable to arrange the Units in upper and
lower rows. The following restrictions apply:
• I/O Connecting Cable can be used between only the CPU Unit and the
first four Expansion Units and Expansion I/O Units. It cannot be used from
the fifth Unit onwards.
• I/O Connecting Cable can be used in one place only, and not in multiple
places.
CP1W-EXT01
CJ Unit Adapter
CJ1W-TER01
CJ-series End Cover
(included with CJ Unit Adapter)
DIN Track
CJ-series CPU Bus Unit or Special I/O Unit
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
Expansion
1
st
Unit 2
nd
Unit 3
rd
Unit 4
th
Unit 5
th
Unit 6
th
Unit 7
th
Unit
Can be used. Cannot be used.
