Mounting Section 3-3
Use I/O Connecting Cable when connecting CP-seriess Expansion Units and
Expansion I/O Units at the same time as CJ-series Special I/O Units or CPU
Bus Units.
Wiring Ducts Whenever possible, route I/O wiring through wiring ducts. Install the duct so
that it is easy to wire from the I/O Units through the duct. It is handy to have
the duct at the same height as the Racks.
Note Tighten terminal block screws and cable screws to the following torque.
M4: 1.2 N·m
M3: 0.5 N·m

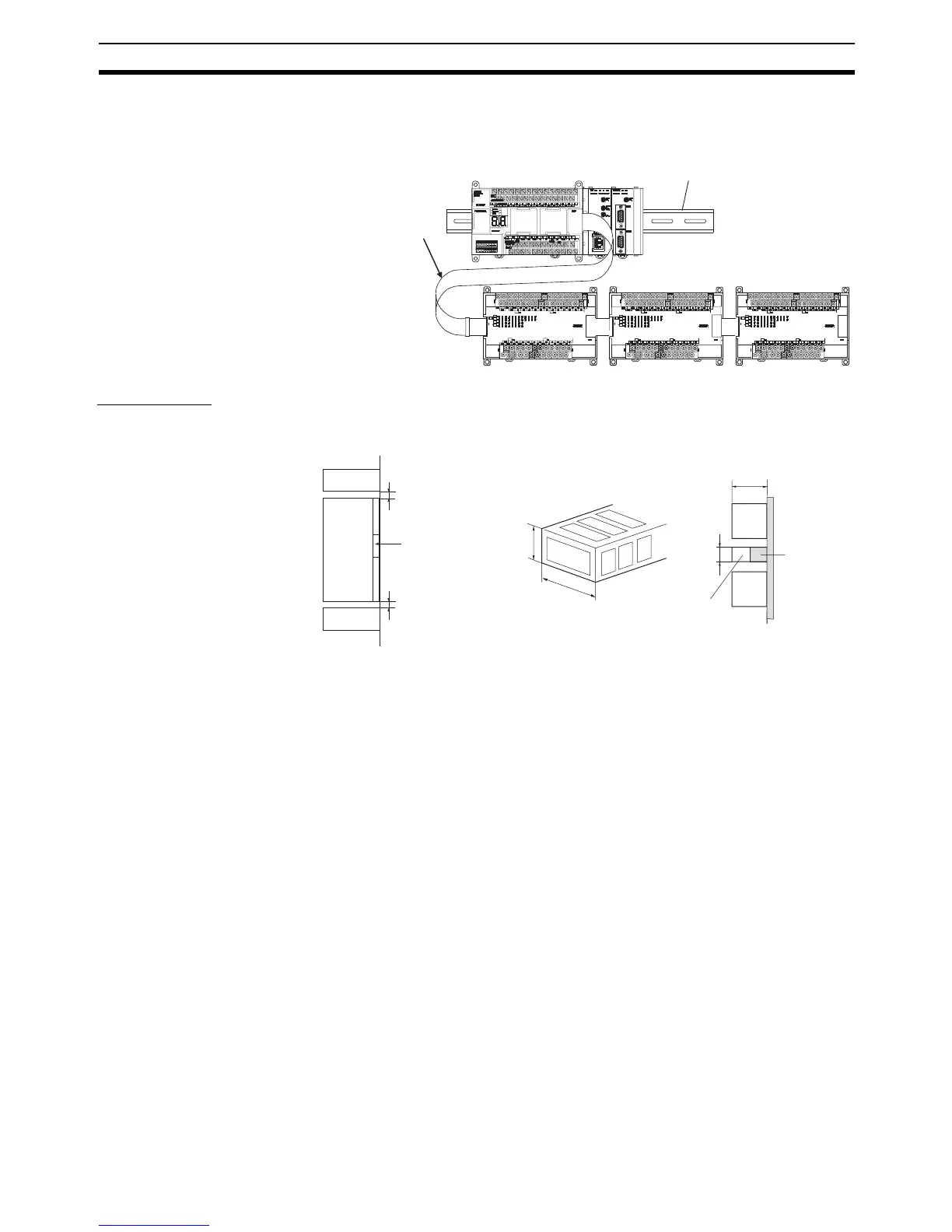

CP1W-CN811
I/O Connecting Cable
CP1H CPU Unit
DIN Track
20 mm min.
20 mm min.
40 mm
30 mm
30 mm
81.6 to 89.0 mm
Duct
Unit
Duct
DIN Track
Duct
CPU
Rack
Mounting
bracket
To Next Page
