Omron CP1H CPU User Manual

120
Wiring CP1H CPU Units Section 3-4
Connecting I/O
Devices
Use the following information for reference when selecting or connecting input
devices.

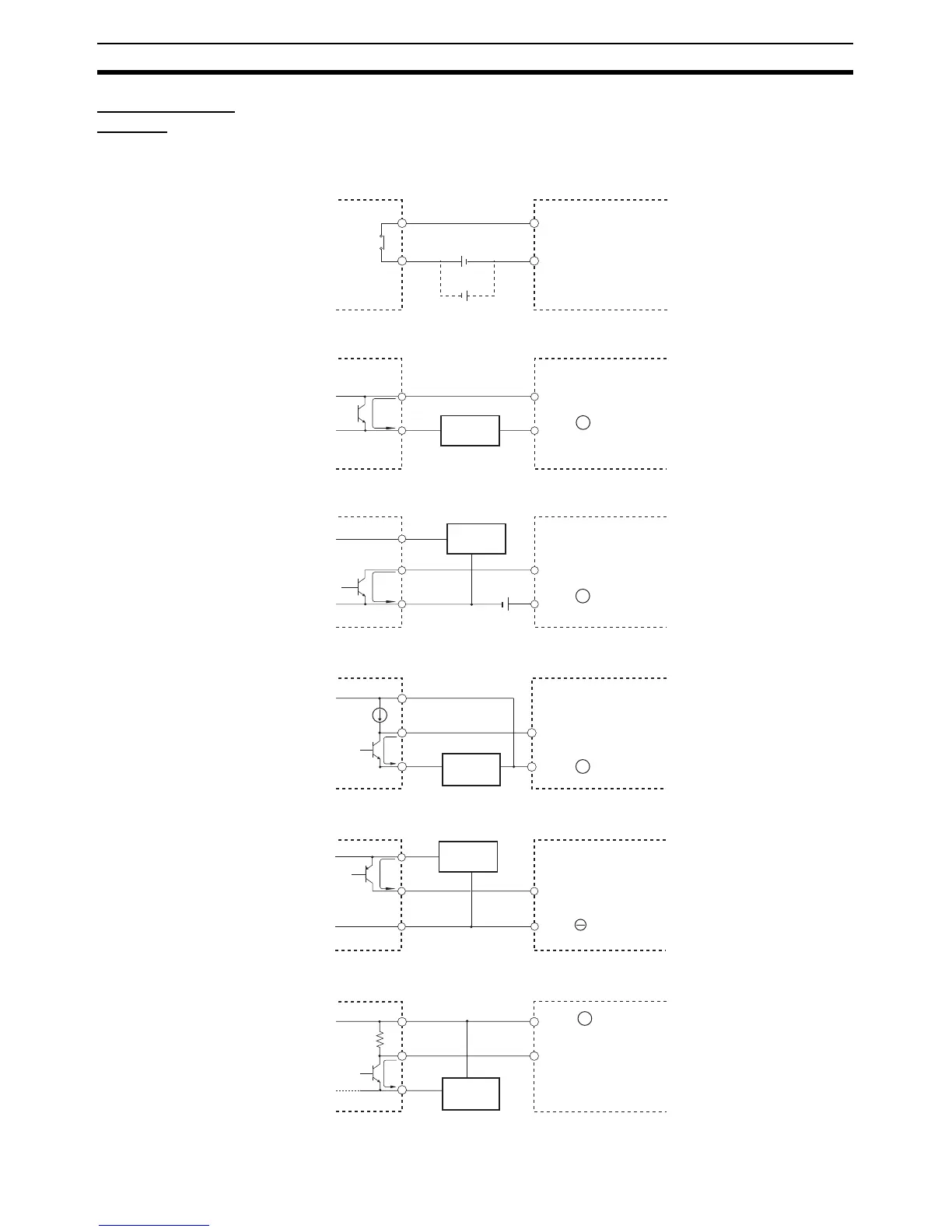

DC Input Devices Connectable DC Input Devices (for DC Output Models)
IN
COM
CP1H
7 mA
0 V
+
IN
CP1H
7 mA
0 V
+
COM
+
IN
COM
CP1H
7 mA
0 V
+
CP1H
COM
IN
IN
COM
CP1H
0 V
+
IN
COM
CP1H
+
+
Contact output
Two-wire DC output
Sensor
power supply
NPN open-collector output
Sensor
power supply
Output
NPN current output
Current
regulator
Output
Sensor
power supply
PNP current output
Output
Sensor
power supply
Voltage output
Output
Sensor
power supply
+
+
+
