195
Interrupt Functions Section 5-1

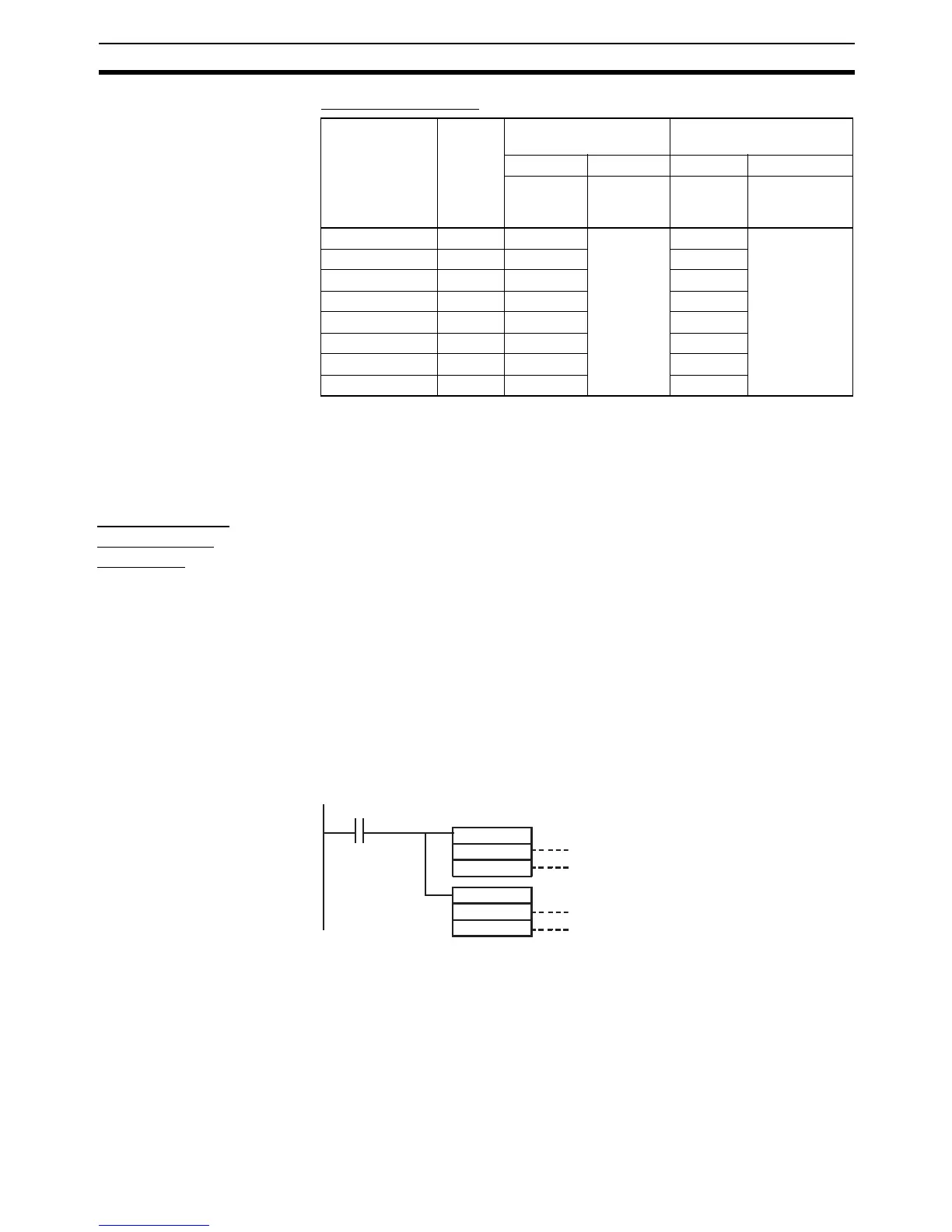

MSKS(690) Operands
Note *Input interrupts 2 and 3 are not supported by the Y CPU Units.
Writing the Interrupt
Task’s Program
Create programs for interrupt tasks 140 to 147, which are executed by the cor-
responding input interrupt. Always put an END(001) instruction at the last
address of the program.
Input Interrupt
Settings and
Operation
This example shows how to execute interrupt task 141 when 200 up-differenti-
ated pulses have been counted at input CIO 0.01. (The counter is an incre-
menting counter.)
Settings
1,2,3... 1. Connect an input device to input 0.00.
2. Use the CX-Programmer to set input 0.01 as an input interrupt in the PLC
Setup.
3. Use the CX-Programmer to create the program to use for interrupt pro-
cessing and allocate the program to interrupt task 141.
4. Use the CX-Programmer to set a high-speed counter SV of 00C8 hex (200
decimal) in A533.
5. Use the CX-Programmer to write MSKS(690) in the program.
Operation When execution condition W0.00 goes ON, MSKS(690) is executed to enable
operation of the input interrupt in counter mode.
Input interrupt
number
Interrupt
task
number
1. Up-differentiation or
Down-differentiation
2. Enabling/Disabling the
input interrupt
NSN S
Input
interrupt
number
Count
trigger
Input
interrupt
number
Enable/
Disable
Input interrupt 0 140 110 (or 10) #0000: Up-
differenti-
ated pulses
#0001:
Down-dif-
ferentiated
pulses
100 (or 6) #0002: Start
counting down
(decrement-
ing) and enable
interrupts
#0003: Start
counting up
(incrementing)
and enable
interrupts
Input interrupt 1 141 111 (or 11) 101 (or 7)
Input interrupt 2 142 112 (or 12) 102 (or 8)
Input interrupt 3 143 113 (or 13) 103 (or 9)
Input interrupt 4 144 114 104
Input interrupt 5 145 115 105
Input interrupt 6* 146* 116 106
Input interrupt 7* 147* 117 107
@
MSKS(690)
111
#0000
@MSKS(690)
111
#0003
W0.00
(Execution condition)
Specifies input interrupt 1.
Specifies up-differentiated pulses.
Specifies input interrupt 1.
Specifies an incrementing counter,
starts counting, and enables the input
interrupt.
To Next Page
