Omron CP1H CPU

262
Pulse Outputs Section 5-3

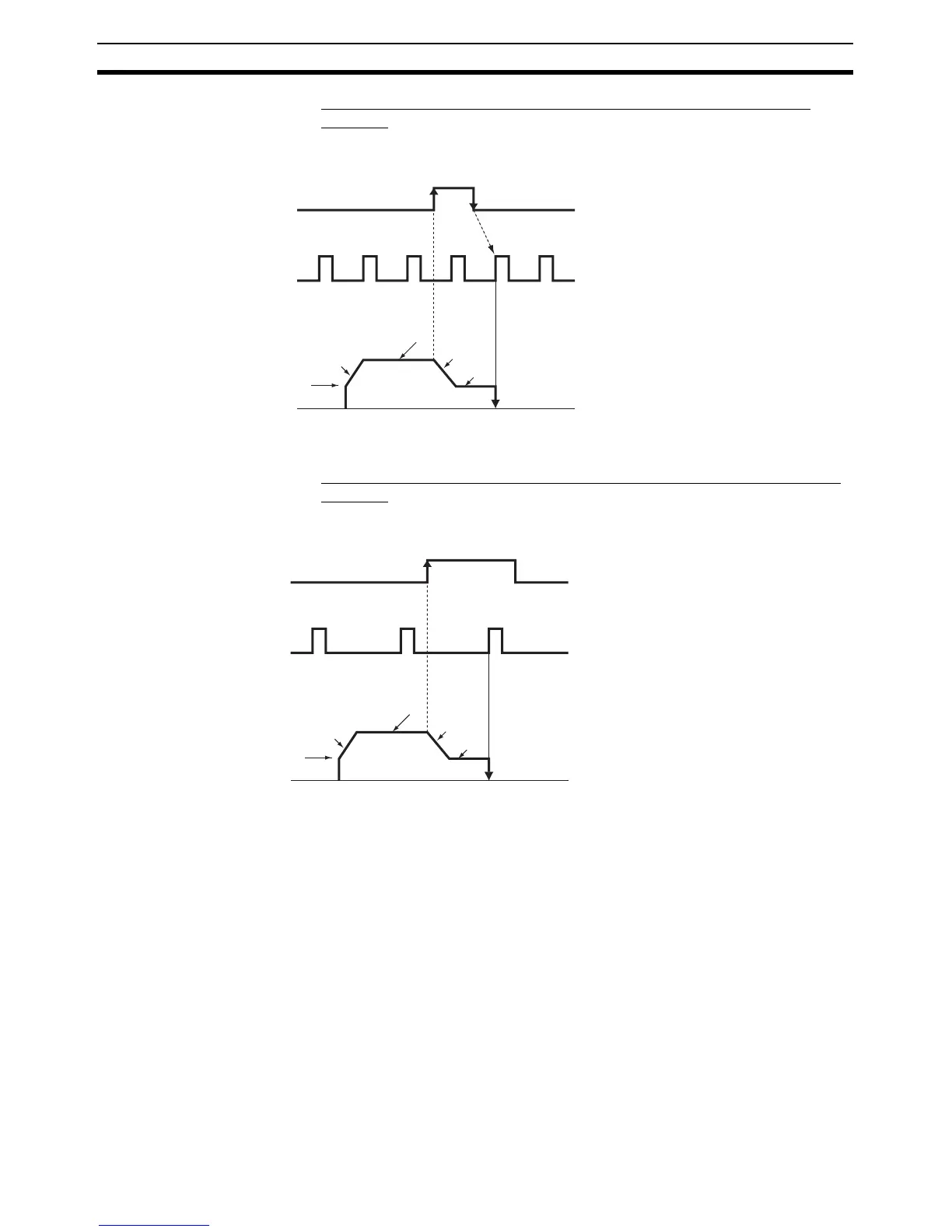

Origin Detection Method 0: Origin Proximity Input Signal Reversal
Required
Origin Detection Method 1: Origin Proximity Input Signal Reversal Not
Required
1
1
0
0
CCW
CW
Origin Proximity
Input Signal
Origin Input
Signal
Pulse output
Deceleration starts when
Origin Proximity Input
Signal goes OFF→ON.
After the Origin Proximity Input Signal has gone
from OFF→ON→OFF, the motor is stopped
when the Origin Input Signal goes OFF→ON.
Initial
speed
Acceleration
High speed for
origin search
Deceler-
ation
Proximity speed for origin search
Start when
ORG(889) is
executed.
Stop
1
1
0
0
CCW CW
Origin Proximity
Input Signal
Origin Input
Signal
Pulse output
Deceleration starts when
Origin Proximity Input
Signal goes OFF→ON.
After the Origin Proximity Input Signal has gone
from OFF→ON→OFF, the motor is stopped when
the Origin Input Signal goes OFF→ON.
Initial
speed
Acceleration
High speed for
origin search
Deceler-
ation
Proximity speed for origin search
Start when
ORG(889) is
executed.
Stop
