Omron CP1H CPU User Manual

310

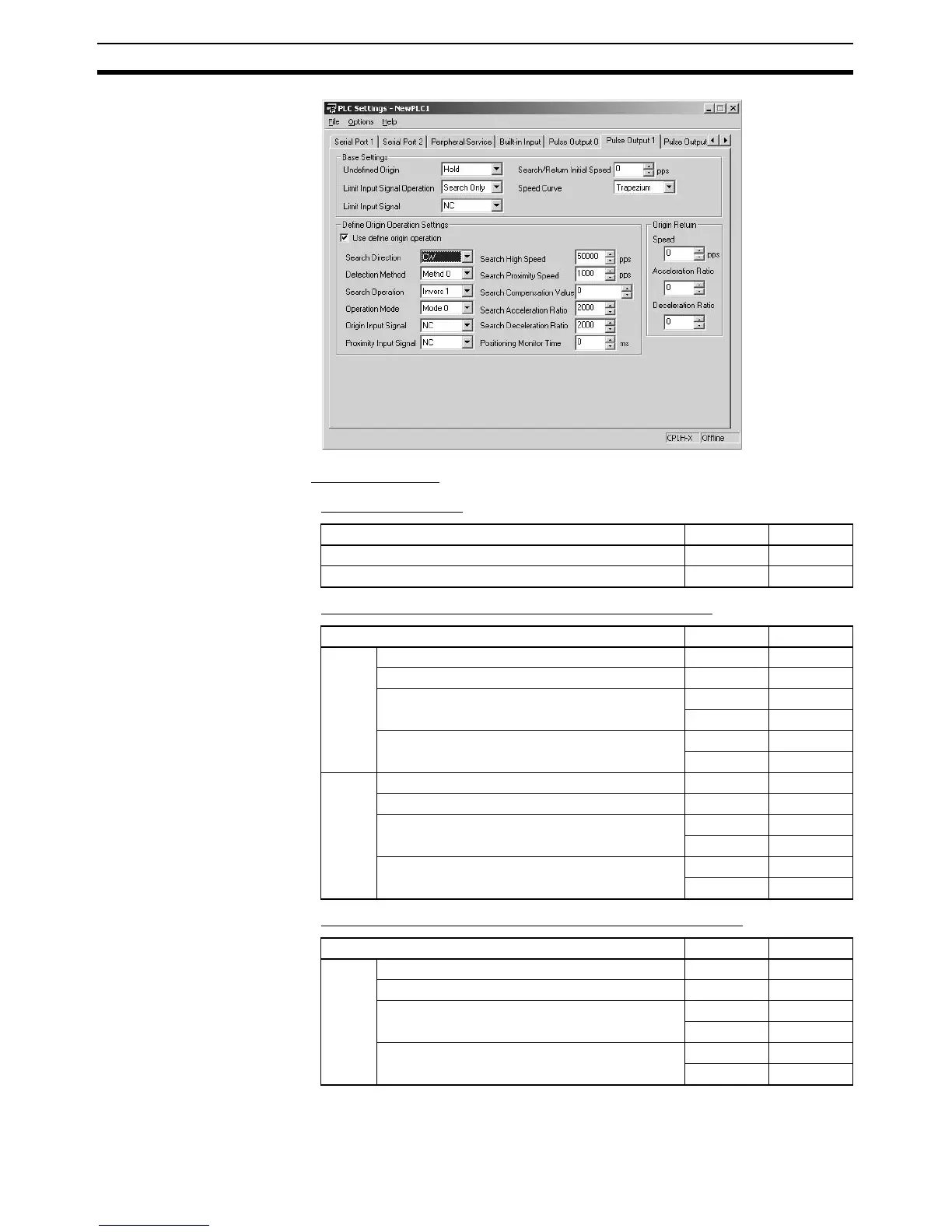

Pulse Outputs Section 5-3
■ DM Area Settings
Starting Frequency
PLS2(887) Settings to Move from Origin to Position A
PLS2(887) Settings to Move from Position A to Position B
Setting details Address Data
X-axis starting frequency D0 #0000
Y-axis starting frequency D2 #0000
Setting details Address Data
X axis Acceleration rate: 2,000 Hz/4 ms D10 #07D0
Deceleration rate: 2,000 Hz/4 ms D11 #07D0
Target frequency: 100,000 Hz D12 #86A0
D13 #0001
Number of output pulses: 5,000 pulses D14 #1388
D15 #0000
Y axis Acceleration rate: 2,000 Hz/4 ms D20 #07D0
Deceleration rate: 2,000 Hz/4 ms D21 #07D0
Target frequency: 100,000 Hz D22 #86A0
D23 #0001
Number of output pulses: 5,000 pulses D24 #1388
D25 #0000
Setting details Address Data
X axis Acceleration rate: 2,000 Hz/4 ms D30 #07D0
Deceleration rate: 2,000 Hz/4 ms D31 #07D0
Target frequency: 100,000 Hz D32 #86A0
D33 #0001
Number of output pulses: 25,000 pulses D34 #61A8
D35 #0000
