Temperature Sensor Units Section 7-5

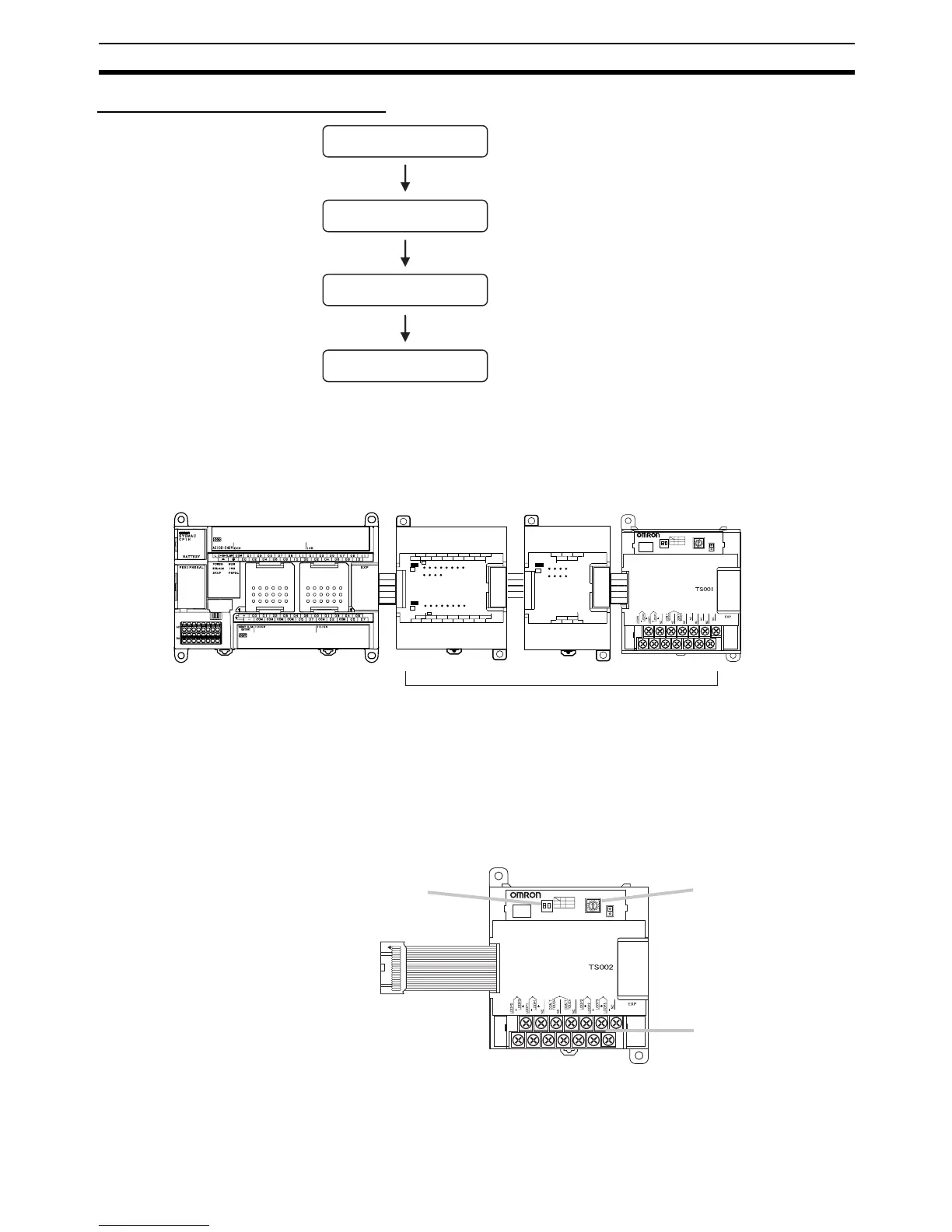

Using Temperature Sensor Units
Connecting Temperature
Sensor Units
A maximum of three CPM1A-TS002 and CPM1A-TS102 Temperature Sensor
Units can be connected, because each is allocated four words.
Setting Temperature Ranges
Note (1) Always turn OFF the power supply before setting the temperature range.
(2) Never touch the DIP switch or rotary switch during Temperature Sensor
Unit operation. Static electricity may cause operating errors.
The Temperature Sensor Unit’s DIP switch and rotary switch are used to set
the temperature unit, to select 2-decimal-place Mode is to be used, and to set
the temperature input range.
Connect the Unit.
Set the temperature ranges.
Connect the temperature
sensors.
Program operation in the
ladder program.
• Connect the Temperature Sensor Unit.
• Set the temperature unit, 2-decimal-place Mode
if required, and set the temperature input range.
• Connect temperature sensors.
• Read temperature data stored in the input word.
CP1H CPU Unit
IN
00
CH
CH
02 04 06 08 10
OUT
01COM 03050709 11
COM COM COM 03COM06
00 01 02 04 05 07
00 01 02 03 04 05 06
07
08 09 10 11
20EDR1
CH
00 01 02 03 04 05 06 07
NC
NC
NC
CH
EXP
IN
00 02
01COM 03
COM 0507
04 06
CH
00 01 02 03
08 09 10 11
8ED
EXP
CP1W-20EDR1
CPM1A-20EDR1
Expansion I/O Unit
CP1W-8ED
CPM1A-8ED
Expansion I/O Unit
CP1W-TS001/TS101
CPM1A-TS001/TS101
Temperature Sensor Unit
Temperature input terminals
DIP Switch
Used to set the temperature
unit and the number of
decimal places used.
Rotary Switch
Used to set the
temperature input range.
