432
Temperature Sensor Units Section 7-5

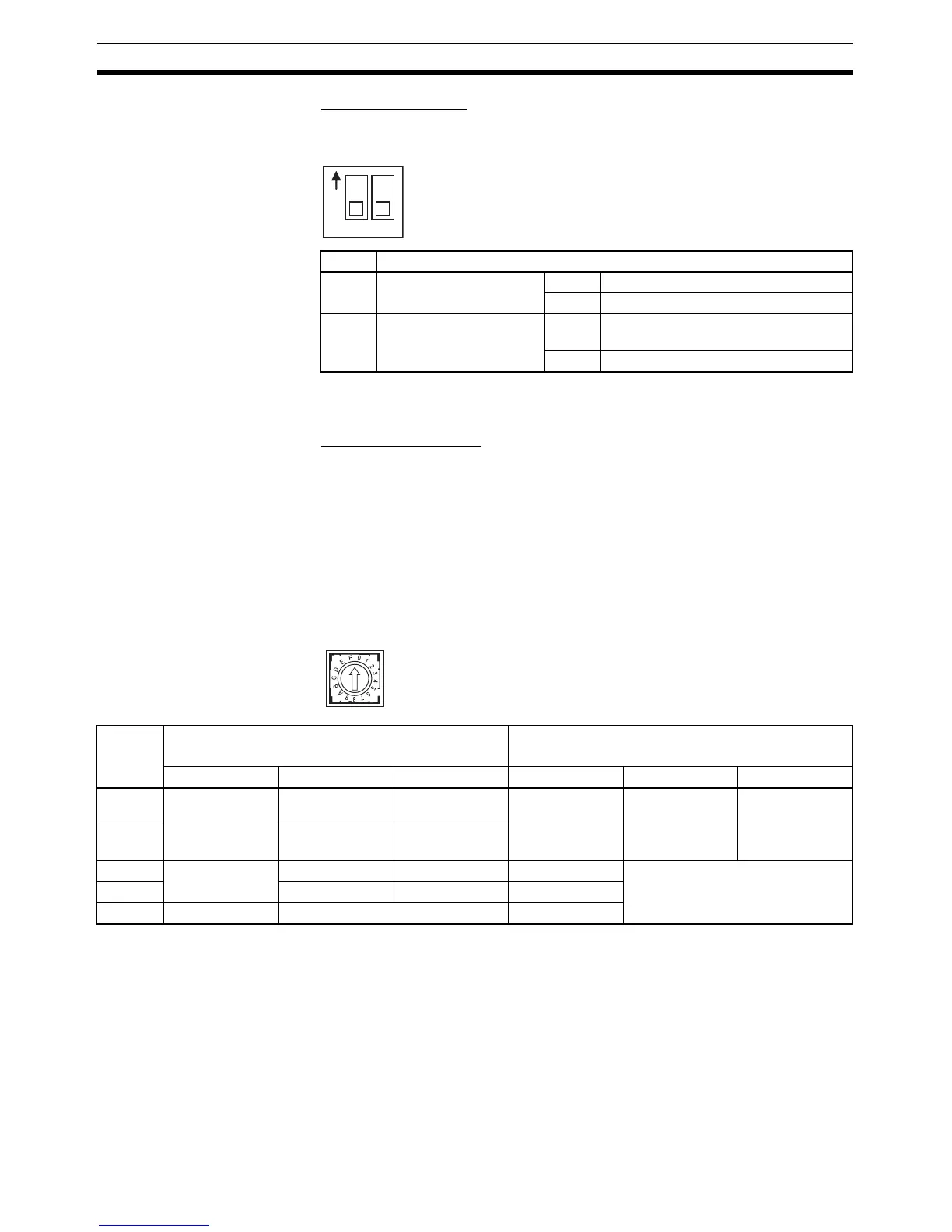

DIP Switch Settings
The DIP switch is used to set the temperature unit (°C or °F) and the number
of decimal places used.
Note For details on 2-decimal-place Mode, refer to Two-decimal-place Mode on
page 439.
Rotary Switch Setting
!Caution Set the temperature range according to the type of temperature sensor con-
nected to the Unit. Temperature data will not be converted correctly if the tem-
perature range does not match the sensor.
!Caution Do not set the temperature range to any values other than those for which
temperature ranges are given in the following table. An incorrect setting may
cause operating errors.
The rotary switch is used to set the temperature range.
SW1 Setting
1 Temperature unit OFF °C
ON °F
2 Number of decimal
places used (See note.)
(0.01 expression)
OFF Normal (0 or 1 digit after the decimal
point, depending on the input range)
ON 2-decimal-place Mode
ON
12
Setting CP1W-TS001/002
CPM1A-TS001/002
CP1W-TS101/102
CPM1A-TS101/102
Input type Range (°C) Range (°F) Input type Range (°C) Range (°F)
0K −200 to 1,300 −300 to 2,300 Pt100 −200.0 to 650.0 −300.0 to
1,200.0
1 0.0 to 500.0 0.0 to 900.0 JPt100 −200.0 to 650.0 −300.0 to
1,200.0
2J −100 to 850 −100 to 1,500 --- Cannot be set.
3 0.0 to 400.0 0.0 to 750.0 ---
4 to F --- Cannot be set. ---
To Next Page
