489
LCD Option Board Function Section 8-6

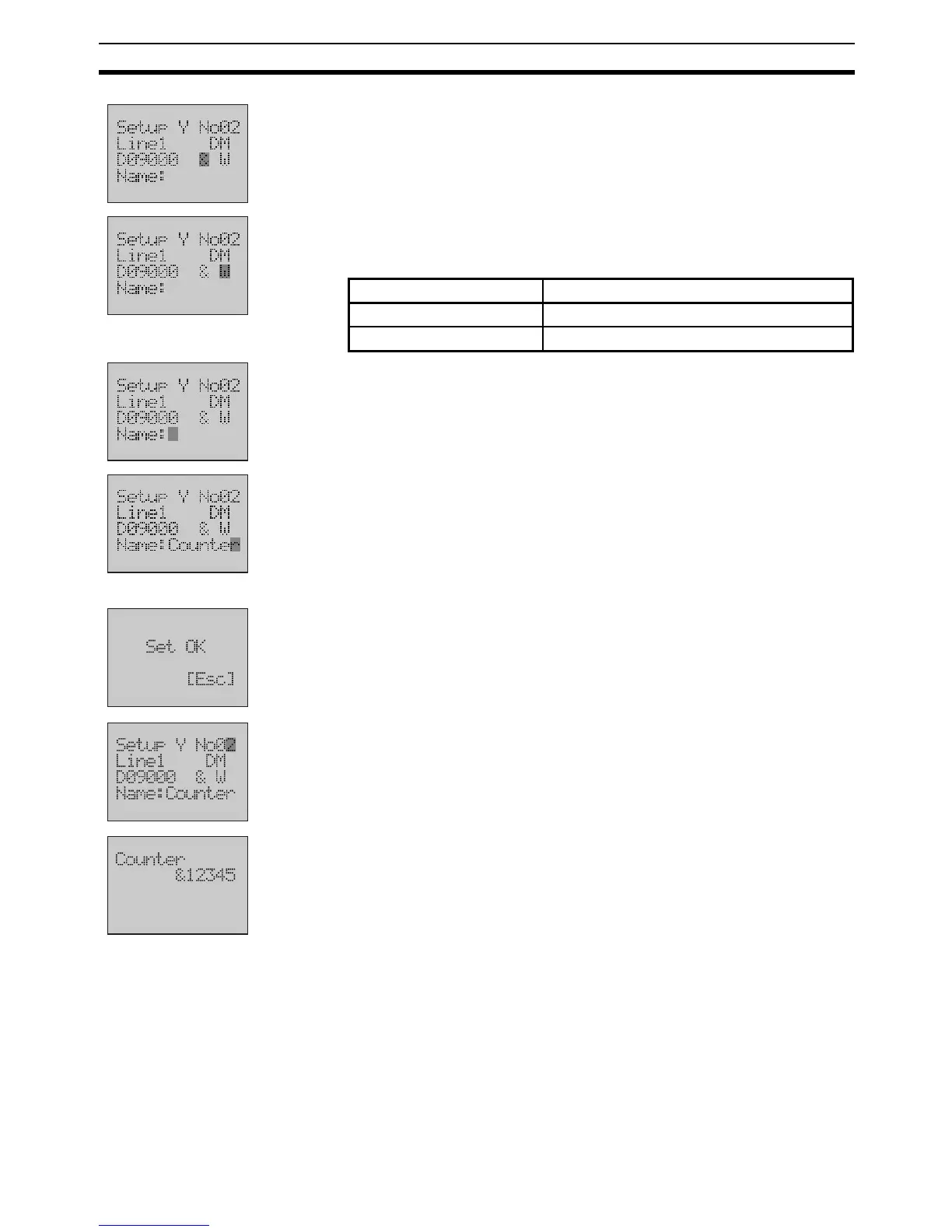

14. Press the Down or Up button to select the display format &.
15. Use the Forward button to move the column cursor to the data length position.
The present setting is W.
Select the data length in the following table.
16. Use the Forward button to move the column cursor to the position of
Name.
17. Use the Down or Up button to select the character of each digit.
Name the word to Counter.
Note 1. When selecting the character of the next digit, the leading charac-
ter will be the character of the digit before.
2. The max length of word or bit name is 7 characters.
18. Press the OK button to save the setting.
19. Press the ESC or OK button to return to the User Monitor Setup Screen.
20. Press the ESC button three times to return to the Monitor Mode.
Switch to the User Monitor Screen 2 with the Down button.
Note 1. Setting of word or bit name is not necessary. The default name is NULL,
and the memory address will be displayed at the name position in the User
Monitor Screen.
2. One line setting will take 1 or 2 lines of space. If word or bit name length is
more than 5 characters or data length is a LongWord, it will take 2 lines of
space.
3. One screen only has 4 lines of space available. If one line setting has al-
ready taken 2 lines of space, the next line setting will be invalid. If the set-
ting of line 4 takes 2 lines of space, its setting will be invalid.
Data length Meaning
W One word data
LW Two word data
To Next Page
