488

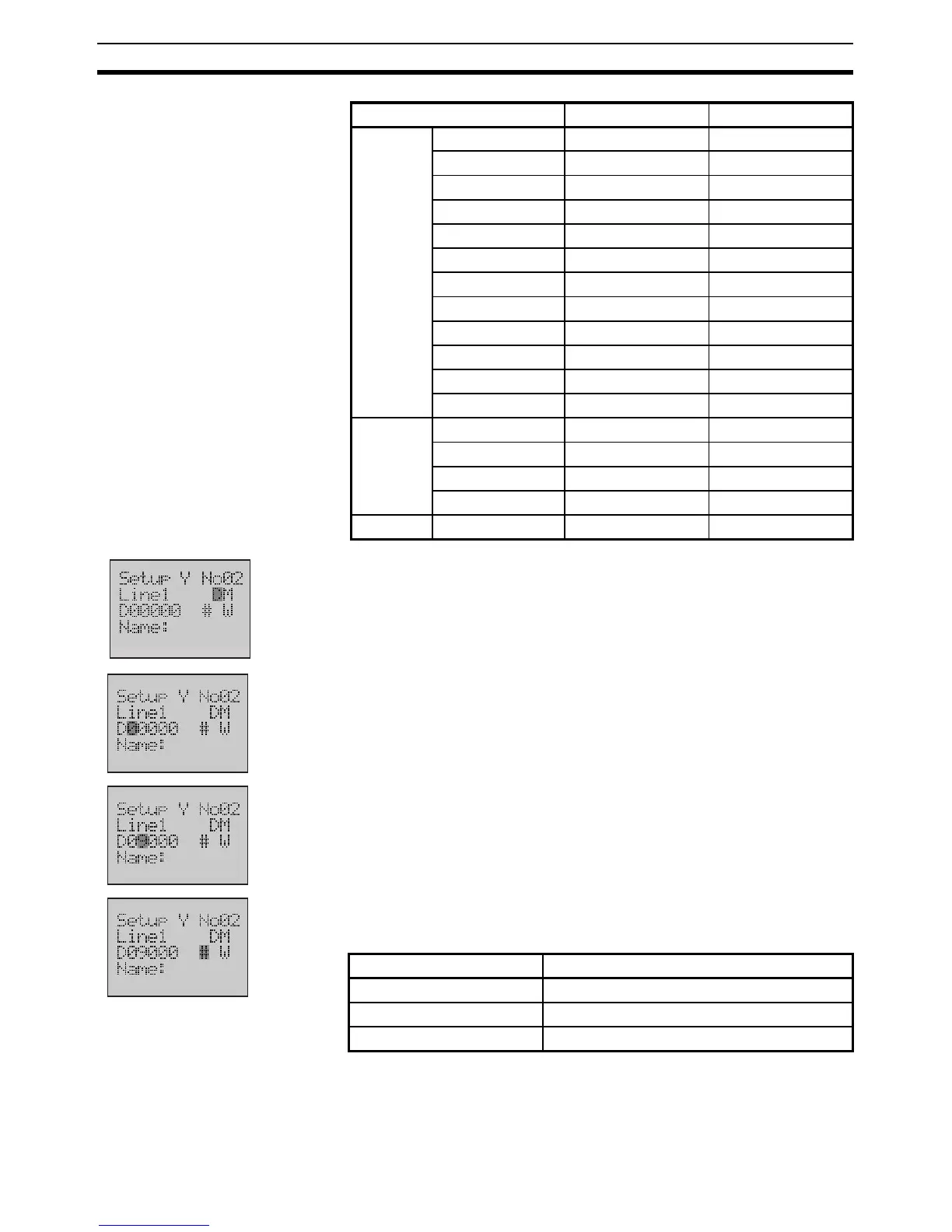

LCD Option Board Function Section 8-6
10. Press the Up button to select DM.
11. Use the Forward button to move the column cursor to the memory address
position.
The present setting is the default address.
12. Move the column cursor to the digit to be set.
Use the Up button to change the memory address to 09000.
13. Use the Forward button to move the column cursor to the display format
position.
Select the display format in the following table.
Display type Default address Range
Word
IO 0000 0000 to 6143
WR 000 000 to 511
HR 000 000 to 511
AR 000 000 to 959
TIM 0000 0000 to 4095
CNT 0000 0000 to 4095
DM 00000 00000 to 32767
DR 00 00 to 15
IR 00 00 to 15
TK 00 00 to 31
TMF(Timer flag) 0000 0000 to 4095
CTF(Timer flag) 0000 0000 to 4095
Bit
IOB 0000.00 0000.00 to 6143.15
WRB 000.00 000.00 to 511.15
HRB 000.00 000.00 to 511.15
ARB 000.00 000.00 to 959.15
Tex t s tr i ng S TR - -
Display format Meaning
# Hex number
+ Signed decimal number
& Unsigned decimal number
