Web Browser Setup and Display Section 9-10
9-10-3 System

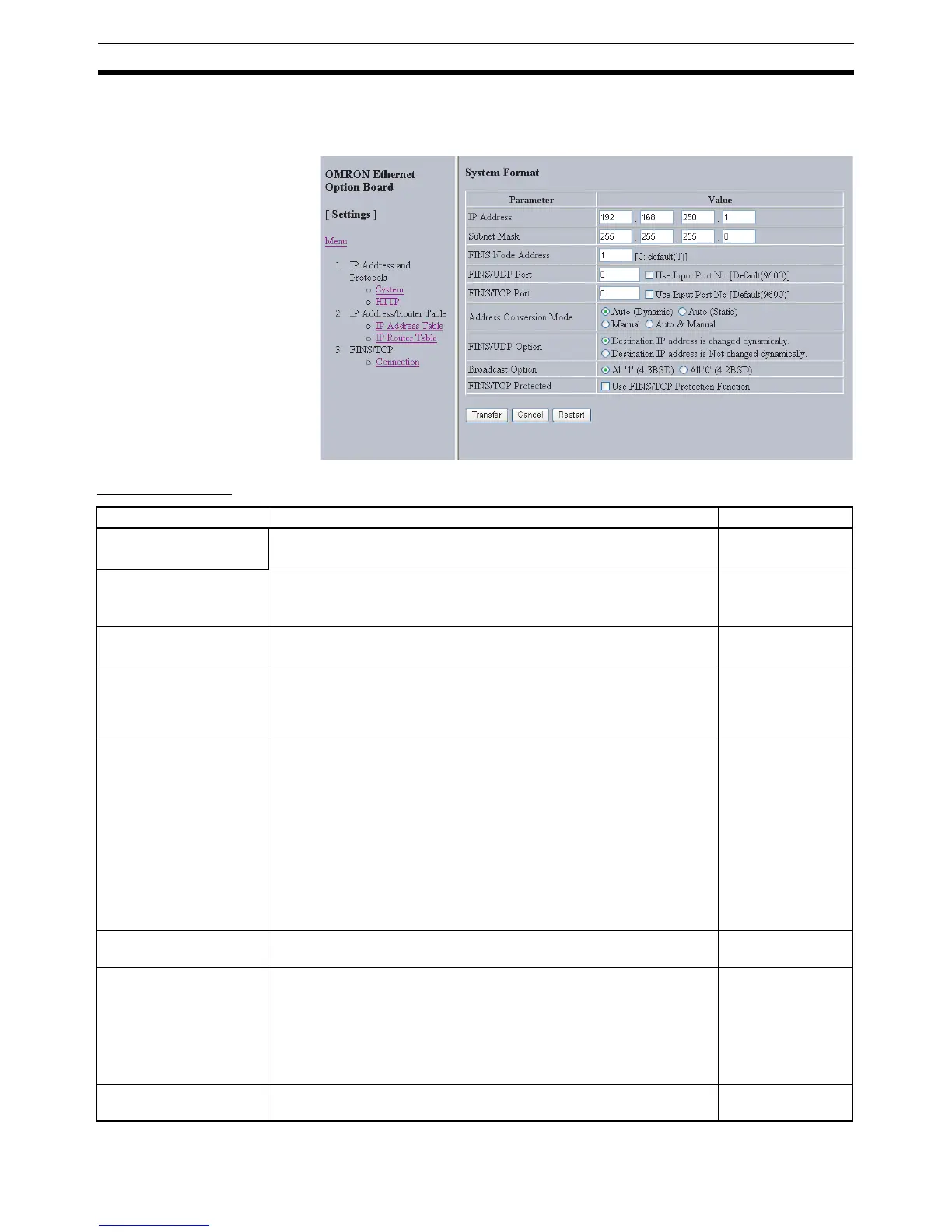

System Format
Item Contents Default
IP Address Set the local IP address for the Ethernet Option Board.
• Setting range: 00.00.00.00 to 223.255.255.255
192.168.250.1
Subnet Mask Set the subnet mask for the Ethernet Option Board.
This is required if a method other than the IP address table method is
used for address conversion.
255.255.255.0
FINS Node Address Set the local FINS node address for the Ethernet Option Board.
• Setting range: 1 to 254
1
FINS/UDP Port Specify the local UDP port number to be used for the FINS communica-
tions service. The UDP port number is the number used for UDP identi-
fication of the application layer (i.e., FINS communications service).
• Setting range: 1 to 65,535
9,600
FINS/TCP Port Specify the local TCP port number to be used for the FINS communica-
tions service. The TCP port number is the number used for TCP identifi-
cation of the application layer (i.e., the FINS communications service in
this case).
• Setting range: 1 to 65,535
Note Make the settings so that TCP port number 80 for HTTP does not
overlap.
The port number setting only has an effect on the FINS/TCP
server function, not on the FINS/TCP client function. FINS/TCP
client port will switch from 3000 to 65535 automatically for con-
nection.
9,600
Use Input Port No. Check this checkbox, if you want the user defined port number for UDP
or TCP to be in effect.
Unchecked
Address Conversion
Mode
Select any of the following as the method for finding and converting IP
addresses from FINS node addresses. (Enabled for FINS/UDP only.)
• Auto (dynamic): Automatic generation (dynamic)
• Auto (static): Automatic generation (static)
• Manual: IP address table method
• Auto & Manual: Combined method
Auto (dynamic)
FINS/UDP Option Select to dynamically change the remote (destination) IP address for
FINS/UDP or not. To prohibit dynamic changes, check the second box.
Change
dynamically
