Web Browser Setup and Display Section 9-10
9-10-7 FINS/TCP

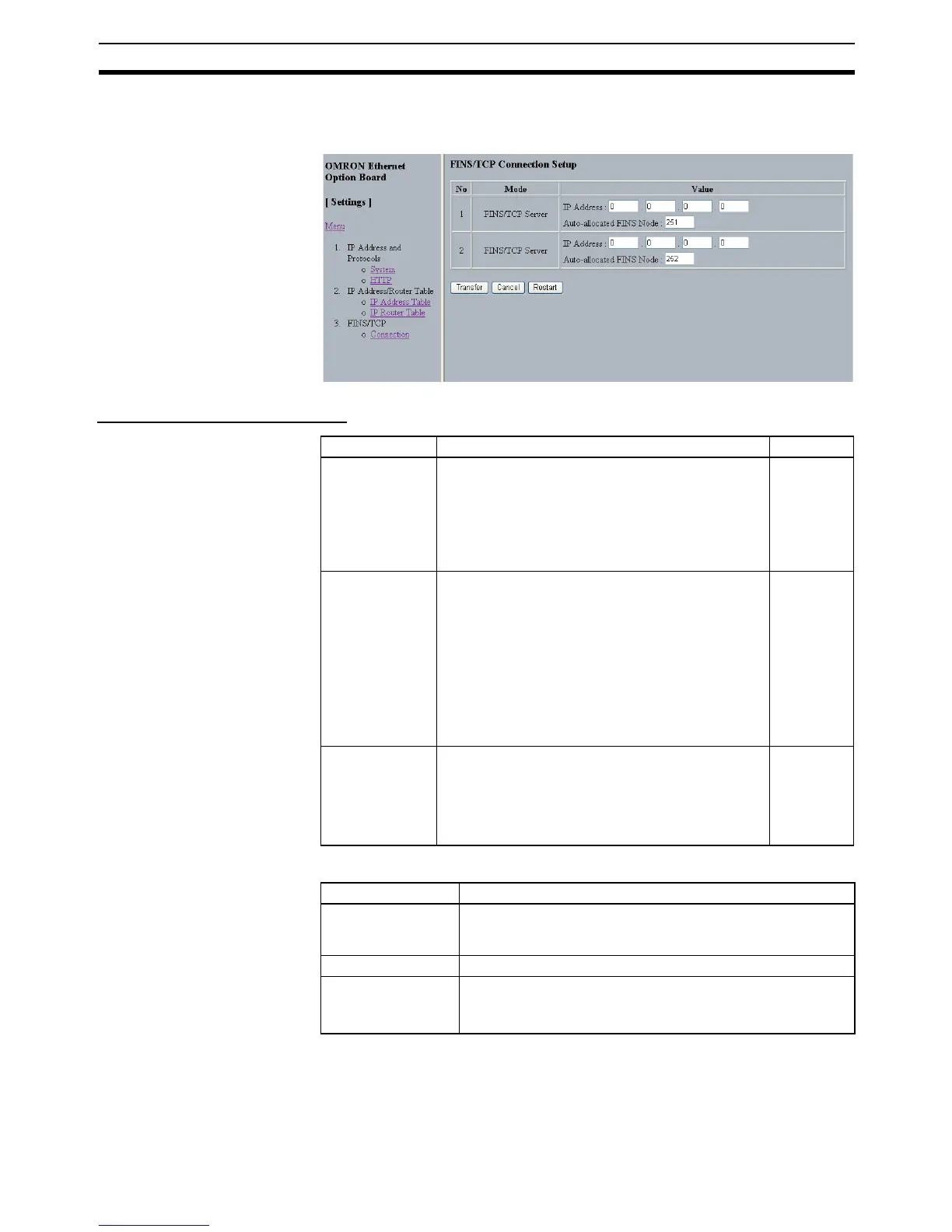

FINS/TCP Connection Setup
The functions of the buttons are as follows.
Item Contents Default
No. Shows the connection number. This is a network API
used when TCP is used for the FINS communica-
tions service. Up to 2 can be used at a time, and
they are identified by connection numbers 1 to 2.
The Ethernet Option Board can thus simultaneously
execute the FINS communications service by TCP
with up to 2 remote nodes.
---
IP Address • When the Ethernet Option Board is used as a server:
If the option is selected to use IP addresses to pro-
tect, set the IP addresses as required at clients
from which connection is permitted. If not set for
those connections, the default setting can be used.
• When the Ethernet Option Board is used as a client:
Set the IP address for the remote Ethernet Unit
(i.e., the server) that is to be connected by
FINS/TCP. It is required that an IP address be set
for the remote Ethernet Unit.
0.0.0.0
Auto-allocated
FINS node
If the client (normally a personal computer) applica-
tion supports FINS/TCP, and if FINS node addresses
are not fixed, the client will take 0 as its node
address. Then, when a FINS command arrives, the
number set here (from 251 to 252) will automatically
be allocated as the client’s FINS node address.
From 251 to
252, for
connection
No. 1 to 2
Button
Function
Transfer Transfer the entered values from the personal computer to the
Ethernet Option Board. (The new settings are invalid until the
Ethernet Option Board has been reset.)
Cancel
Cancel the entered values.
Restart Restart the Ethernet Option Board to enable the new settings
after transfer.
The Restart button is invalid to the PLC.
