548
Web Browser Setup and Display Section 9-10

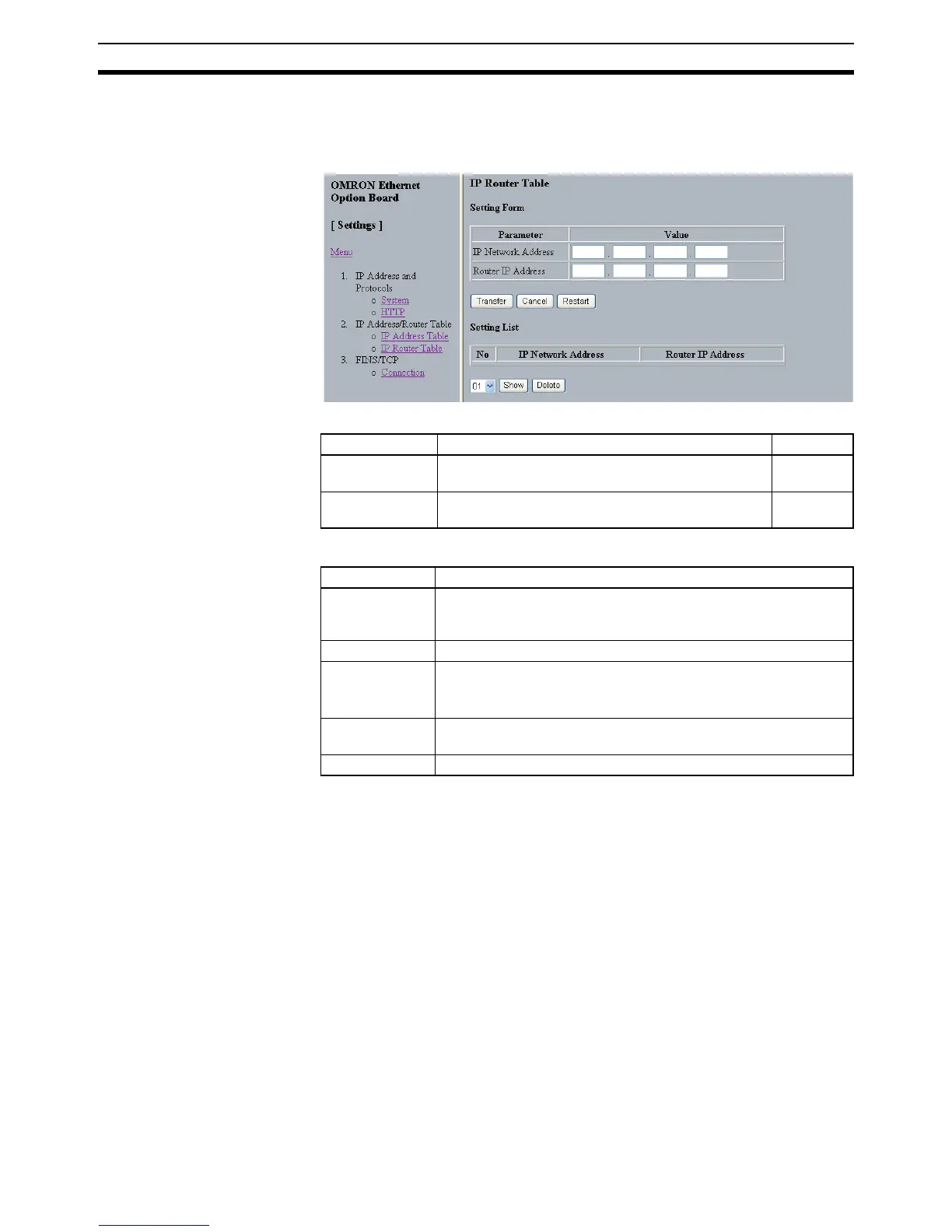

9-10-6 IP Router Table
Set the IP router table when the Ethernet Option Board is to communicate
through the IP router with nodes on another IP network segment.
The functions of the buttons are as follows.
Item Contents Default
IP Network
Address
Set the network ID from the IP address. None
Router IP
Address
Set the related IP address of a router connected to a
network.
None
Button Function
Transfer Transfer the entered values from the personal computer to the
Ethernet Option Board. (The new settings are invalid until the
Ethernet Option Board has been reset.)
Cancel Cancel the entered values.
Restart Restart the Ethernet Option Board to enable the new settings after
transfer.
The Restart button is invalid to the PLC.
Show Show the IP network address and Router IP address of the
selected No.
Delete Delete the IP router table of the selected No.
