Omron CP1H CPU User Manual

603

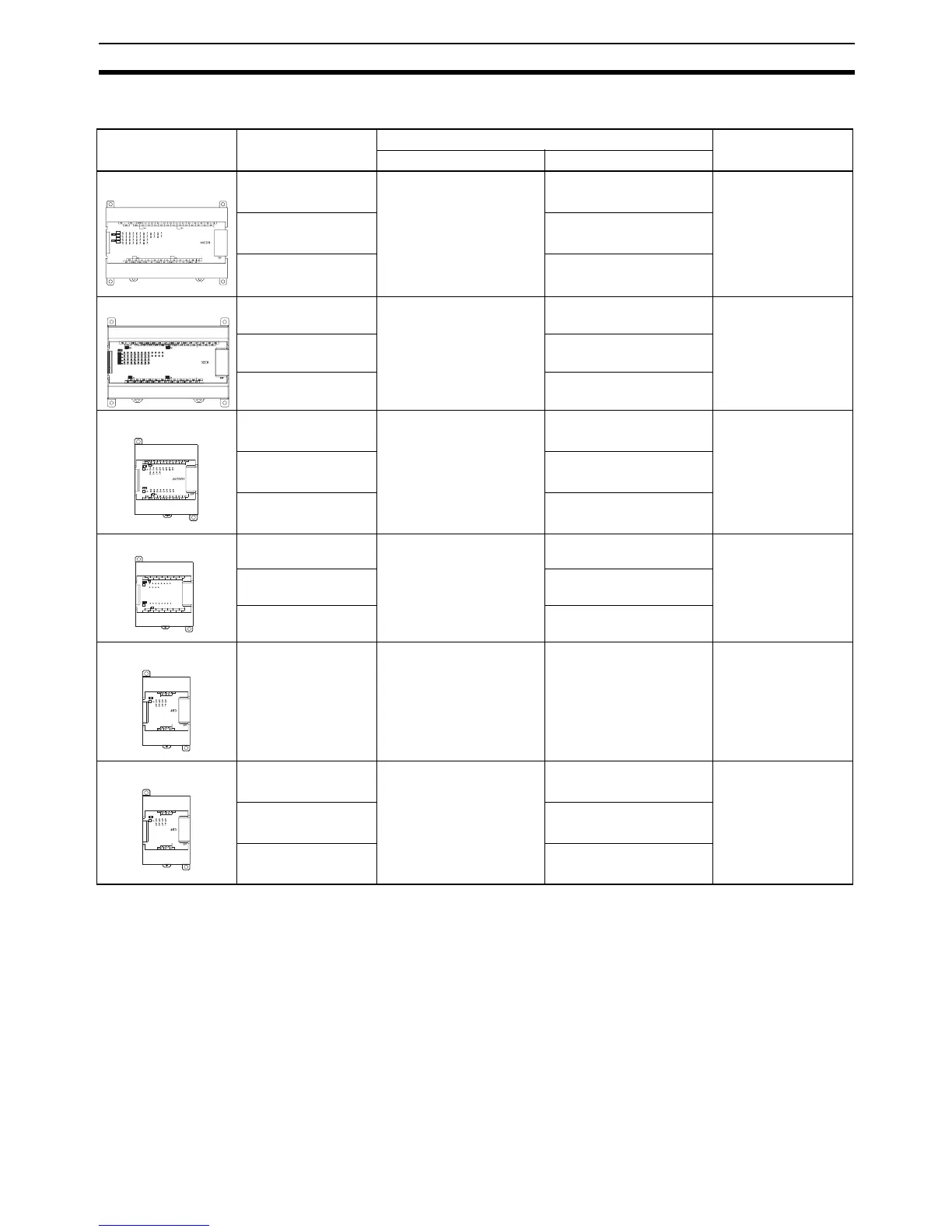

Standard Models Appendix A
CP-series Expansion I/O Units
Name and
appearance
Model Specifications Remarks
Inputs Outputs
40-point I/O Units CP1W-40EDR
CPM1A-40EDR
24 VDC
24 inputs
16 relay outputs ---
CP1W-40EDT
CPM1A-40EDT
16 transistor outputs,
sinking
CP1W-40EDT1
CPM1A-40EDT1
16 transistor outputs,
sourcing
32-point Output Units CP1W-32ER None 32 relay outputs ---
CP1W-32ET 32 transistor outputs,
sinking
CP1W-32ET1 32 transistor outputs,
sourcing
20-point I/O Units CP1W-20EDR1
CPM1A-20EDR1
24 VDC
12 inputs
8 relay outputs ---
CP1W-20EDT
CPM1A-20EDT
8 transistor outputs, sink-
ing
CP1W-20EDT1
CPM1A-20EDT1
8 transistor outputs,
sourcing
16-point Output Units CP1W-16ER
CPM1A-16ER
N o n e 1 6 r e l a y o u t p u t s - - -
CP1W-16ET 16 transistor outputs,
sinking
CP1W-16ET1 16 transistor outputs,
sourcing
8-point Input Units CP1W-8ED
CPM1A-8ED
24 VDC
8 inputs
None ---
8-point Output Units CP1W-8ER
CPM1A-8ER
None 8 relay outputs ---
CP1W-8ET
CPM1A-8ET
8 transistor outputs, sink-
ing
CP1W-8ET1
CPM1A-8ET1
8 transistor outputs,
sourcing
OUT
00
CH
CH
01 02 03 05 07
OUT
COMNC COM COM 04 06 COM
COM 01 03 COM 06 NC
00 02 04 05 07 NC
00 01 02 03 04 05 06
07
16ER
CH
00 01 02 03 04 05 06 07
NC
NC
NC
CH
EXP
