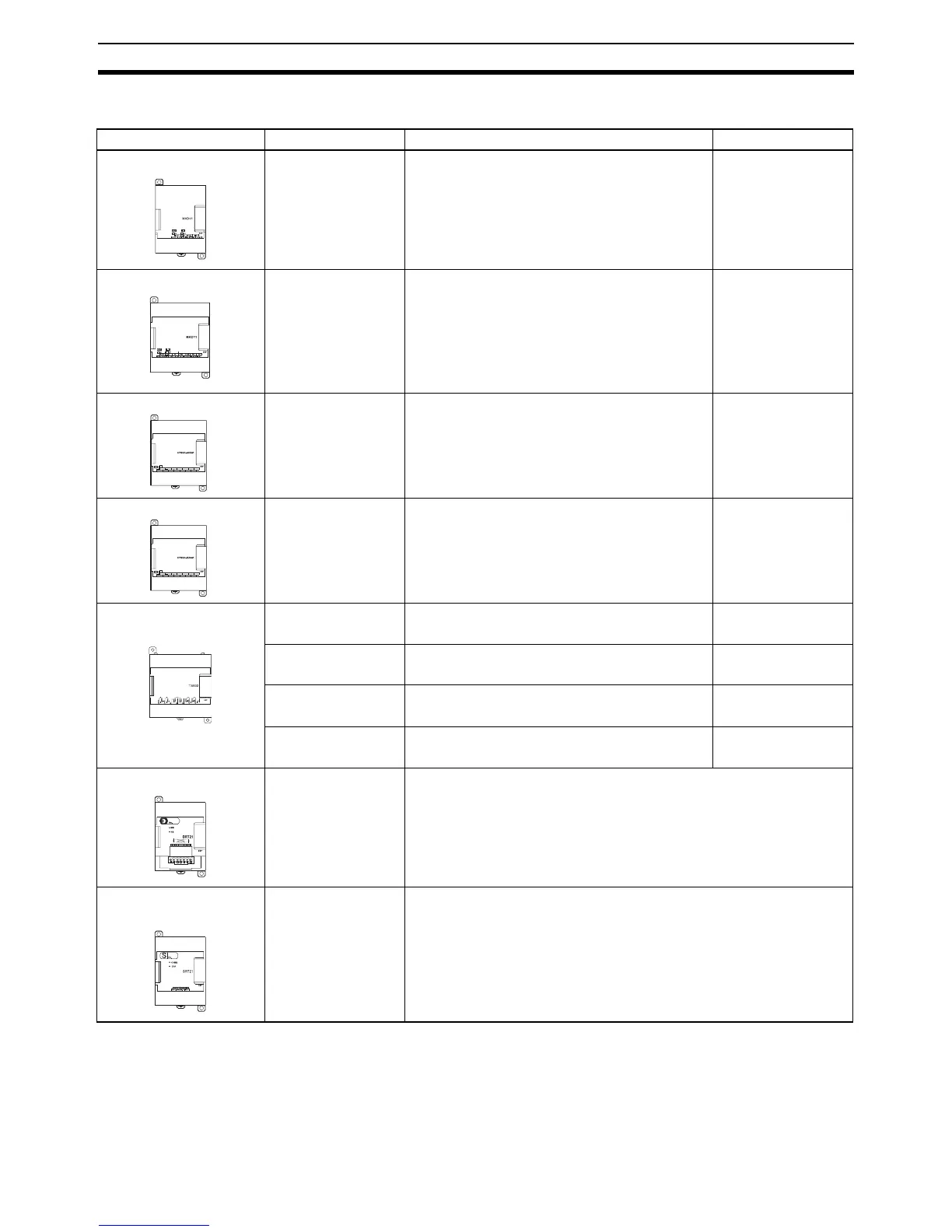

Standard Models Appendix A
Expansion Units
Name and appearance Model Specifications Remarks
Analog I/O Unit CPM1A-MAD01 2 analog inputs
0 to 10 V, 1 to 5 V, 4 to 20 mA
1 analog output
0 to 10 V, −10 to +10 V, 4 to 20 mA
Resolution: 1/256
---
Analog I/O Unit CP1W-MAD11
CPM1A-MAD11
2 analog inputs
0 to 5 V, 1 to 5 V, 0 to 10 V, −10 to +10 V, 0 to
20 mA, 4 to 20 mA
1 analog output
1 to 5 V, 0 to 10 V, −10 to +10 V, 0 to 20 mA, 4 to
20 mA
Resolution: 1/6,000
---
Analog Input Unit CP1W-AD041
CPM1A-AD041
4 analog inputs
0 to 5 V, 1 to 5 V, 0 to 10 V, −10 to +10 V, 0 to
20 mA, 4 to 20 mA
Resolution: 1/6,000
---
Analog Output Unit CP1W-DA041
CPM1A-DA041
4 analog outputs
1 to 5 V, 0 to 10 V, −10 to +10 V, 0 to 20 mA, 4 to
20 mA
Resolution: 1/6,000
---
Temperature Sensor
Units
CP1W-TS001
CPM1A-TS001
Thermocouple inputs K or J, 2 inputs ---
CP1W-TS002
CPM1A-TS002
Thermocouple inputs K or J, 4 inputs ---
CP1W-TS101
CPM1A-TS101
Platinum resistance thermometer inputs Pt100
or JPt100, 2 inputs
---
CP1W-TS102
CPM1A-TS102
Platinum resistance thermometer inputs Pt100
or JPt100, 4 inputs
---
DeviceNet I/O Link Unit CPM1A-DRT21 As a DeviceNet Slave, 32 inputs and 32 outputs are allocated.
CompoBus/S I/O Link
Unit
CP1W-SRT21
CPM1A-SRT21
As a CompoBus/S slave, 8 inputs and 8 outputs are allocated.
