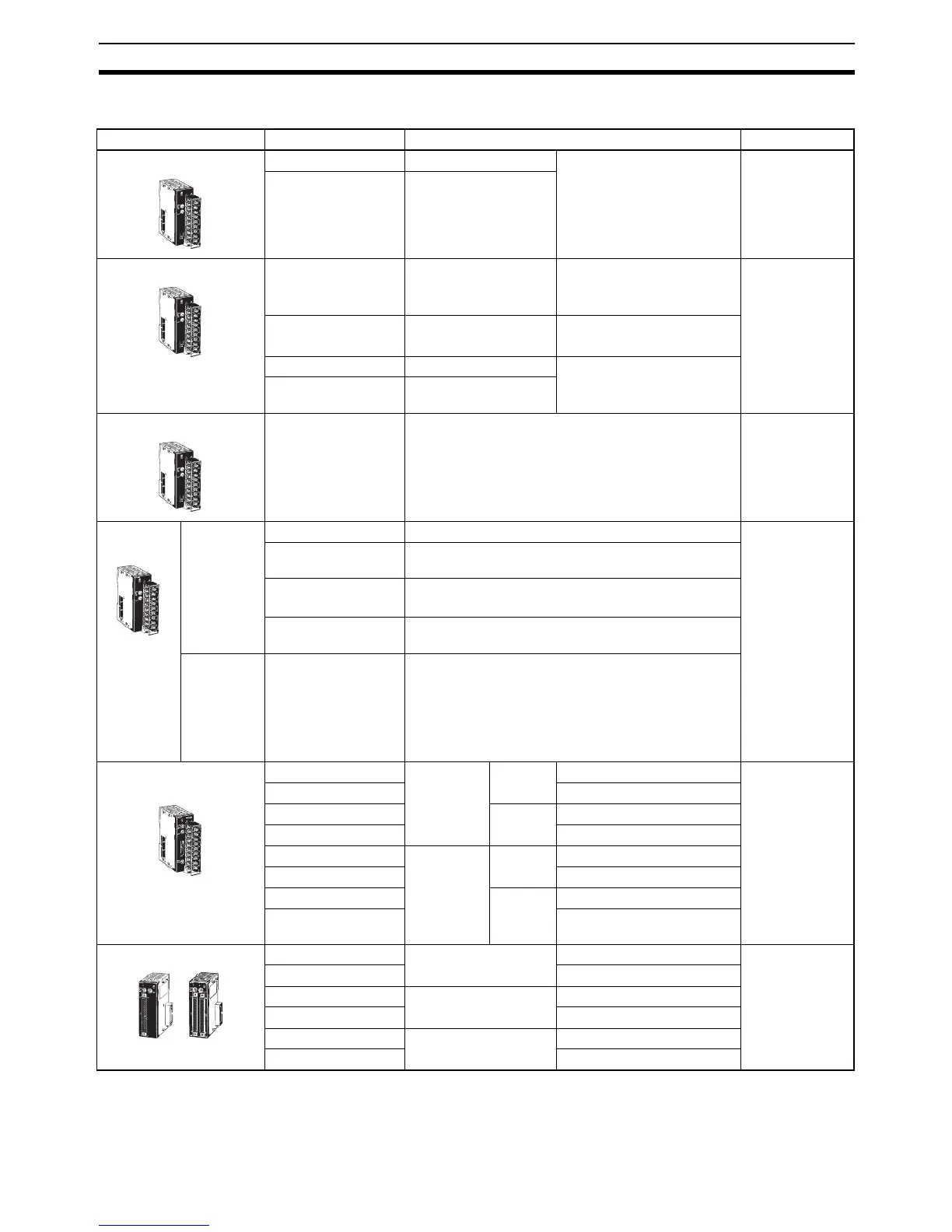

605
Standard Models Appendix A
CJ-series Special I/O Units
Name and appearance Model Specifications Remarks
Analog Input Units CJ1W-AD081-V1 8 analog inputs 0 to 5 V, 1 to 5 V, 0 to 10 V,
−10 to +10 V, 4 to 20 mA
Resolution: 1/8000
Resolution can
be set to 1/4000.
CJ1W-AD041-V1 4 analog inputs
Analog Output Units CJ1W-DA08V 8 analog outputs 0 to 5 V, 1 to 5 V, 0 to 10 V,
−10 to +10 V
Resolution: 1/8000
Resolution can
be set to 1/4000.
CJ1W-DA08C 8 analog outputs 4 to 20 mA
Resolution: 1/8000
CJ1W-DA041 4 analog outputs 0 to 5 V, 1 to 5 V, 0 to 10 V,
−10 to +10 V
Resolution: 1/8000
CJ1W-DA021 2 analog outputs
Analog I/O Unit CJ1W-MAD42 4 analog inputs and 2 analog outputs:
0 to 5 V, 1 to 5 V, 0 to 10 V, −10 to +10 V, 4 to 20 mA
Resolution: 1/4000
Resolution can
be set to 1/8000.
Process I/O
Units
Tempera-
ture Sen-
sor Units
CJ1W-PTS51 Thermocouple inputs R, S, K, J, T, L, or B; 2 inputs ---
CJ1W-PTS52 Platinum resistance thermometer inputs Pt100 or
JPt100, 4 inputs
CJ1W-PTS15 Thermocouple inputs B, E, J, K, L, N, R, S, T, U,
WRe5-26, PLII, or DC voltage (
±100 mV); 2 inputs
CJ1W-PTS16 Platinum resistance thermometer inputs Pt100 or
JPt100, JPt50, or Ni508.4; 2 inputs
Isolated-
type DC
Input Unit
CJ1W-PDC15 DC voltage:
0 to 125 V, −125 to +125 V, 0 to 5 V, 1 to 5 V,
−5 to 5 V, 1 to 5 V, 0 to 10 V, −10 to +10 V,
or user-set range between −10 to +10 V
DC current: 0 to 20 mA or 4 to 20 mA
2 inputs
Temperature Control
Units
CJ1W-TC001 Thermo-
couple
inputs B, S,
K, J, T, or L
4 control
loops
Open-collector NPN outputs ---
CJ1W-TC002 Open-collector PNP outputs
CJ1W-TC003 2 control
loops
Open-collector NPN outputs
CJ1W-TC004 Open-collector PNP outputs
CJ1W-TC101 Platinum
resistance
thermome-
ter inputs
Pt100 or
JPt100
4 control
loops
Open-collector NPN outputs
CJ1W-TC102 Open-collector PNP outputs
CJ1W-TC103 2 control
loops
Open-collector NPN outputs
CJ1W-TC104 Open-collector PNP outputs
Position Control Units CJ1W-NC113 1 control axis Open-collector outputs ---
CJ1W-NC133 Line-driver outputs
CJ1W-NC213 2 control axes Open-collector outputs
CJ1W-NC233 Line-driver outputs
CJ1W-NC413 4 control axes Open-collector outputs
CJ1W-NC433 Line-driver outputs
