710
Connections to Serial Communications Option Boards Appendix F

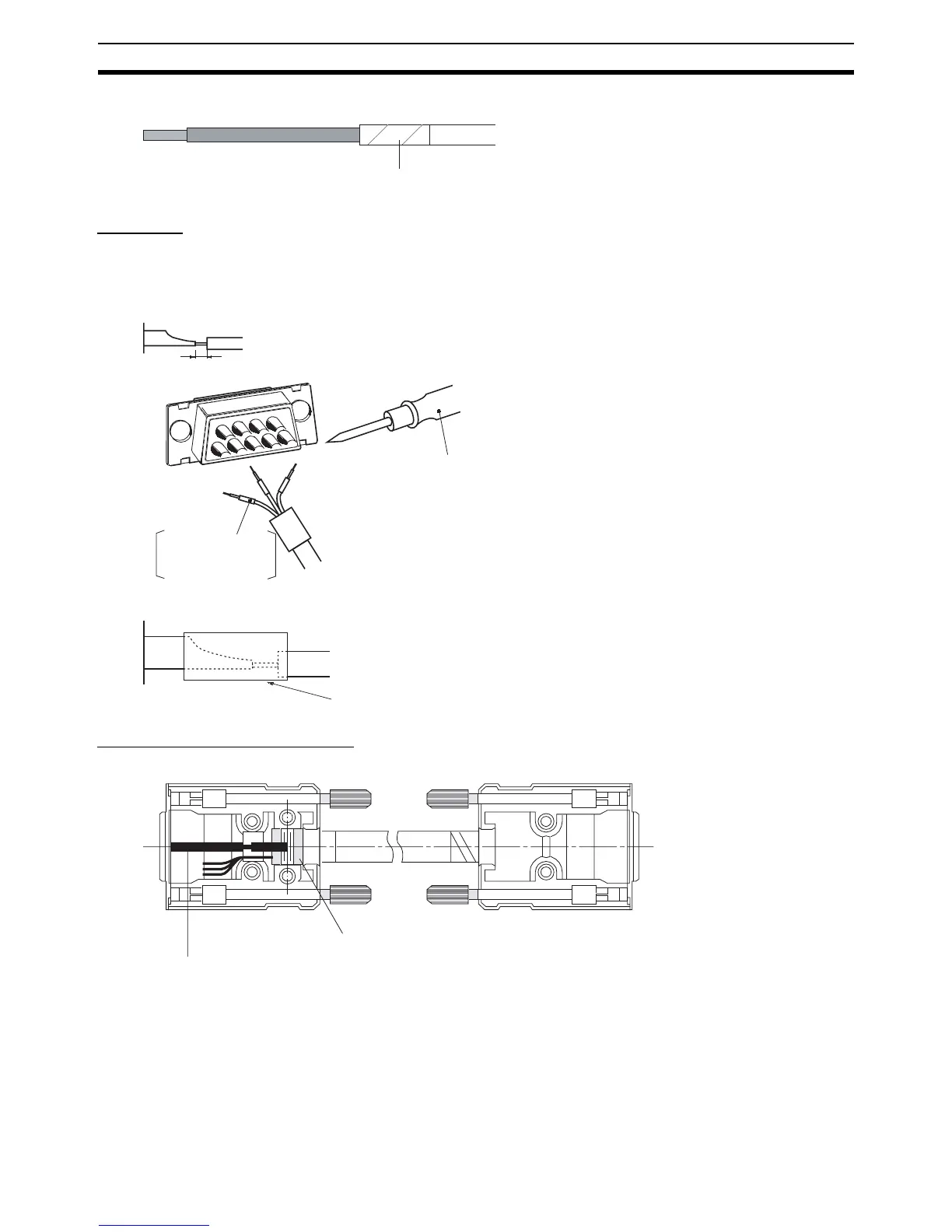

5. Wrap adhesive tape around the conductor from which the braided shield was removed.
Soldering
1. Thread a heat-shrinking tube through each conductor.
2. Temporarily solder each conductor to the corresponding connector terminals.
3. Completely solder each conductor.
4. Return the heat-shrinking tube to the soldered portion, then heat the tube to shrink it in place.
Assembling Connector Hood
Assemble the connector hood as shown below.
Adhesive tape
Soldering iron
Heat-shrinking tube
Inside diameter:
1.5 mm, l = 10
1 mm
Heat-shrinking tub
To Next Page
